Outdoor UPS Telecom Cabinet Designed For Extreme Temperatures And Harsh Environments

1. Specifications:

The Outdoor UPS Cabinet is an uninterruptible power supply equipment used in outdoor environments to provide continuous and stable power supply for critical loads. Here is a detailed summary of its features:

Functionality and Applications:
It provides continuous and stable power supply for critical loads in outdoor environments, such as communication base stations and highway ETC gantries.
It ensures that critical loads can operate normally during power outages in harsh environments, safeguarding the continuity of communication, transportation, and other systems.

Key Features:
Operating Temperature Range: It is designed to operate in outdoor environments with temperatures ranging from -40°C to 80°C (or -20°C to 40°C, depending on the specific model).
Built-in AVR (Automatic Voltage Regulator): It has voltage boosting and reducing capabilities, which can regulate the input voltage to ensure stable output voltage.
Selectable Transfer Time: In normal or generator mode, the transfer time can be selected according to needs.

Intelligent Ports: It provides intelligent ports such as RS-232, USB, and SNMP, facilitating remote monitoring and management.
Circuit Breaker Protection: It has built-in circuit breakers to protect AC input, AC output, and external battery input, enhancing the safety and reliability of the equipment.
Adjustable Charging Current: Users can adjust the charging current to meet the needs of different batteries and loads.

Adjustable Input Threshold Voltage: Adjustable input threshold voltage ensures stable operation of the equipment under different input voltage conditions.
Battery Compensation: Battery compensation optimizes the battery life cycle, extending the battery's service life.

Structure and Types:
The Outdoor UPS Cabinet typically features waterproof and dustproof designs, ensuring stable operation in harsh outdoor environments.
It has a compact structure, making it easy to install and maintain.
Various types are available, including metal trough, ladder, tray-type cable trays, etc., to meet the needs of different scenarios.

In summary, the Outdoor UPS Cabinet is a powerful and highly adaptable uninterruptible power supply equipment widely used to provide power supply for critical loads in outdoor environments. By making reasonable selections and using outdoor UPS cabinets, it can ensure that critical loads can operate normally during power outages in harsh environments, safeguarding the continuity of communication, transportation, and other systems.

Accessories List

2. Feature

(1) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

(2) Cabinet cooling: air conditioner. MTBF≥50000h.

(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlets individually for power cable, signal cable and optical cable.

(4) All the cables used in the cabinet are made from flame retardant materials.

(5) The cabinet includes grounding bar

3. Applications

The ET9090210-UP Outdoor Power Cabinet is for holding telecom power system and batteries, mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

4. Dimension Diagram

5. Description

5.1 LED lamp, LED lamp sensor, smoke sensor, door sensor and temperature & humidity sensor are installed at the top of the cabinet.

5.2 Water sensor is installed at the bottom of the cabinet.

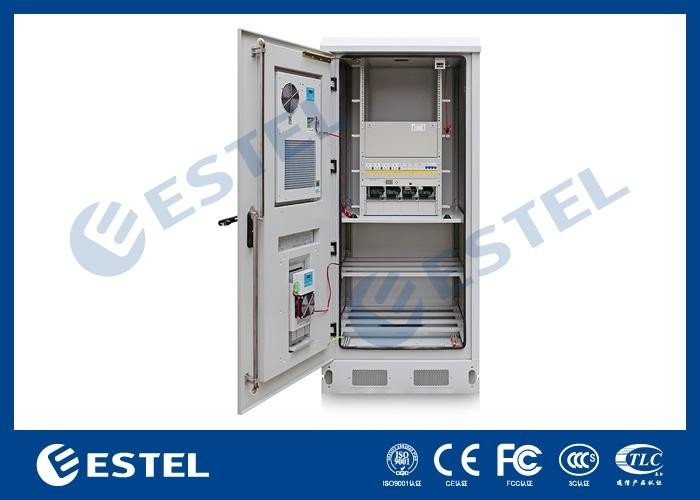

5.3 PDU, environment monitoring unit and rectifier system are installed on 19” rack.

5.4 The cabinet includes totally two air conditioners, installed on front door.

5.5 The cabinet includes rubber base plate, for installation on transport telecom tower trailer.

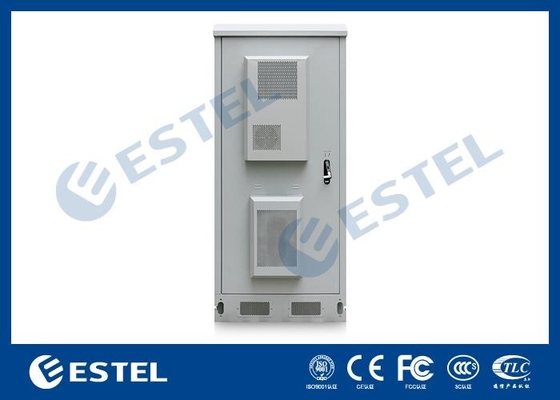

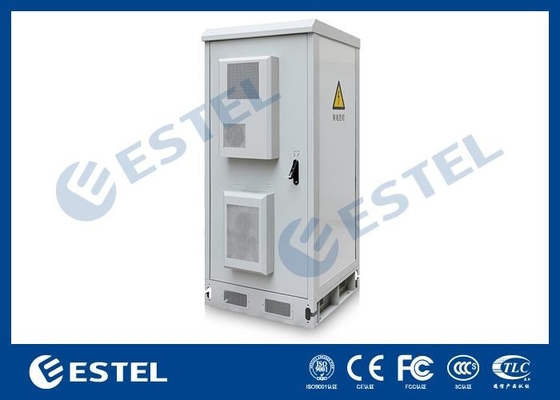

6. Cabinet pictures
