| Cabinet Lock: | Anti-theft Three Point Lock(support Padlock) | Accessories Options: | PDU, Environment Monitoring System,Battery Optional |
|---|---|---|---|
| External Size: | W*D*H 900*900*2100mm | Material: | Single Wall With Insulation |
| Package: | Wooden Case | Door: | One Front Door |
| Cooling Method: | Air Conditioner And Fan | Equipment Rack: | 19 Inch Rack, 30U |
| Humidity: | 5%~95% | Ip Rating: | IP65 |
| Lock Type: | Three-point Locking System | Mounting Type: | Floor Mount |
| Highlight: | 30U Intergrated Outdoor Power Cabinet,Outdoor Power Cabinet With Rectifier System,Energy Storage Outdoor Power Enclosure |
||
30U Intergrated Outdoor Power Cabinet With Rectifier System Sensors Energy Storage Enclosure
1. 30U IP65 Power Cabinet Technical Parameters
| No. | Item | Quantity | Unit | Specs |
| 1. | Outdoor Power Cabinet | 1 | Set |
(1) External Dimension: W*D*H 900*900*2100mm (2) One compartment: 19” rack, 30U (3)With one front door, and three point lock for outdoor cabinet (support padlock) (4) Material: galvanized steel, single wall with 20mm insulation |
| 2. | Air Conditioner | 1 | Set | Cooling capacity: 1500W, Power Supply: AC220V, 60Hz |
| 3. | Auxiliary Direct Ventilation Fans | 2 | PC | 48VDC,install on the cabinet door |
| 4. | Rectifier System | 1 | SET |
Model: ET483200-002 48V 200A,support SNMP communication protocol |
| 5. | Water Sensor | 1 | PC | |
| 6. | Smoke Sensor | 1 | PC | |
| 7. | Temperature and Humidity Sensor | 1 | PC | |
| 8. | Door Sensor | 1 | PC | |
| 9. | LED Lamp | 1 | PC | 48VDC |
| 10. | Package | 1 | Set | Wooden Case |
2. Cabinet Rectifier System Parameter
| Category | ET483200-002 | |
| System | Dimension(mm) | 482.0(W)*350.0(D)*5U(H) |
| Weight | ≤25kg(without rectifier module) | |
| Cooling mode | Natural cooling | |
| Installation mode | Installed on 19-inch rack or inside the cabinet | |
| IP Grade | IP20 | |
| AC Distribution | Input Voltage | 380Vac,three phase |
| Input capacity | 1*63A/4P | |
| Input frequency | 45~65Hz, rated 50/60Hz | |
| AC SPD | 20kA/40kA, 8/20μs | |
| DC Distribution | Output voltage | -43~-58VDC,rated value:-53.5VDC |
| Maximum capacity | 18kW(6*3000W rectifier module) | |
| Battery connection | 2*125A/1P | |
| Load breakers | LLVD:63A/1P×3+32A/1P×3+16A/1P×2 BLVD:32A/1P×2+16A/1P×3 | |
| DC SPD | 10kA, 8/20μs | |
| Rectifier module | Efficiency | ≥96%@340Vdc/ 53.5VDC rated load |
| Rated power | 3000W(85～300Vdc ) | |
| Working temperature | -40℃~+75℃(fully output below 50℃) | |
| Dimension | 105.5mm(W)×286mm(D)×41.5mm(1U/H) | |
| Cooling mode | Forced cooling with fan | |
| Controller | Signal input | 4 AI(3 Battery temp., 1 ambient temp) ,6 DI(SPD, 6 common DI) |
| Alarm output | 4 dry contact | |
| Communication port | LAN/RS232/RS485 interface,LAN-SNMP,TCP/IP | |
| Display mode | LCD | |
| Environment | Operating temperature | -40℃~+65℃ |
| Storage temperature | -40℃~+70℃ | |
| Operating humidity | 0%~95%(non-condensing) | |
| Altitude | 0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating temperature decreases by 1℃ as the altitude increases by 200m.) | |
3. ESTEL Outdoor Telecom Cabinet Protection Level:
IP55/IP65
IP55= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
IP65= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
Custom with cutouts,insulation, hinges, latches or locks

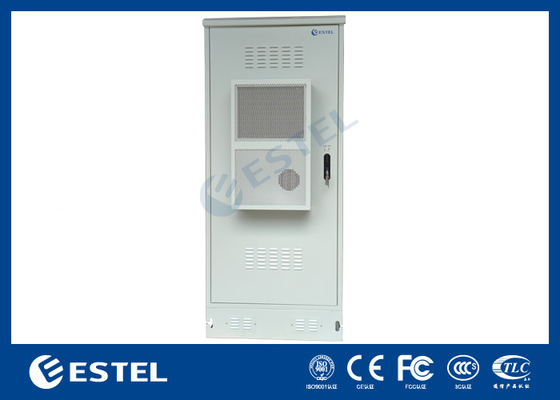

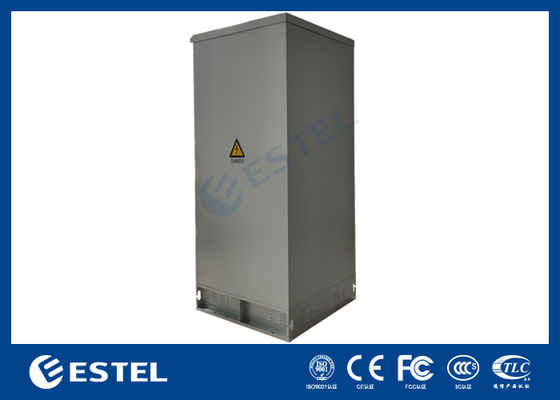

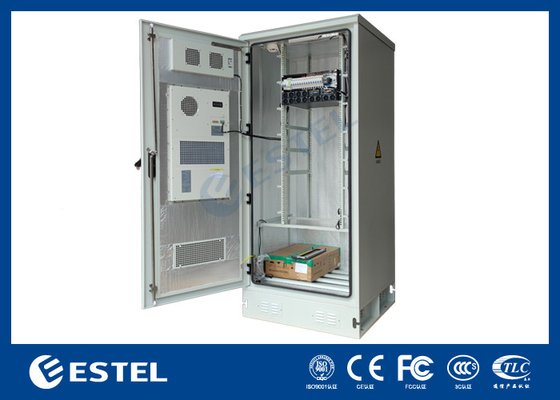

4. Power Cabinet pictures
5. Energy Storage Enclosure Application
Our cabinet is widely used in outdoor communication industry. The cabinet can be equipped with various communication equipment, rectifier power supply system, monitoring unit, battery, optical fiber, etc. Suitable for use in streets, building tops, mountain tops, urban, rural, residential areas and other areas.
