38U Outdoor Electrical Enclosures Cabinets
,Outdoor Electrical Enclosures Cabinets IP55
,Base Station Outdoor Electrical Enclosures
Waterproof 38U Single Wall Outdoor Electrical Enclosures Cabinets With Air Conditioner
1. Outdoor Cabinet Structure
(1) External Dimension W×D×H 750×750×2000mm
(2) One compartment, 38U free space
(3) One front door; with special lock for outdoor cabinet (support padlock)
(4) Material: Galvanized steel; single wall, thickness: 1.2mm, with 20mm PEF heat insulation.
(5) Surface finishing: Degreasing, pickling, phosphoric wash, cleaning, and power coated.
2. Weatherproof Telecom Cabinet Features
- Material: good quality Galvanized steel
- Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
- Cabinet load bearing: ≥400kg
- Ingress protection: IP55
- Flame retardance: comply with GB5169.7 test A
- Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.
- Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).
- Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
3. Electrical Enclosure Table 1 Standard Compliance
| Standard | Description |
| GB/T 17626.7-1998 | Electromagnetic compatibility |
| GB4706.1 | Safety of household appliance and electrical appliance with similar use. |
| GB4798.1 | Environmental conditions existing in the application for electric and electronic products - storage |
| GB4798.2 | Environmental conditions existing in the application for electric and electronic products - transportation |
| GB4798.3 | Environmental conditions existing in the application for electric and electronic products - usage |

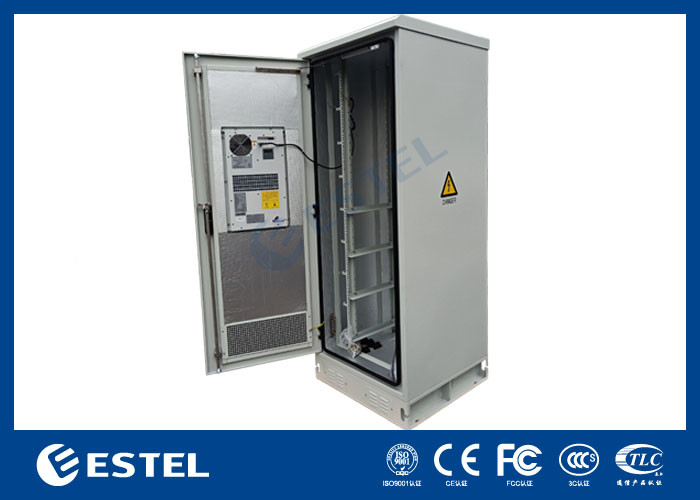

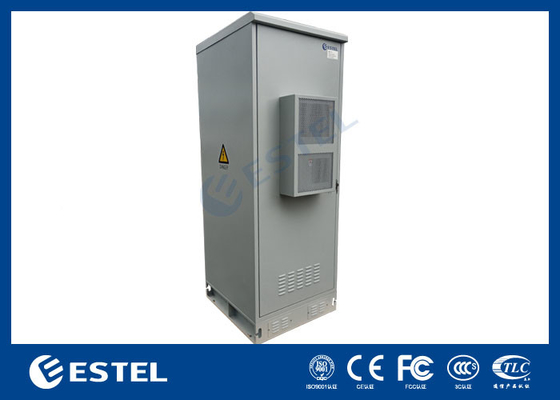

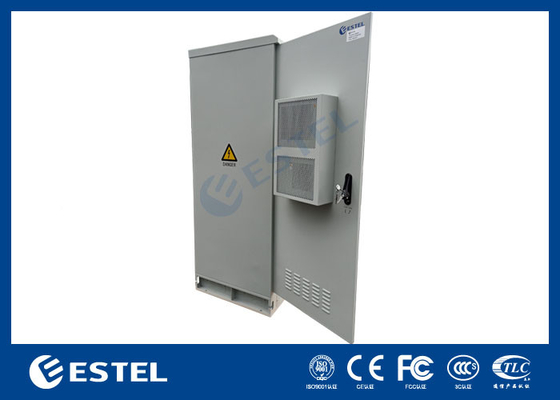

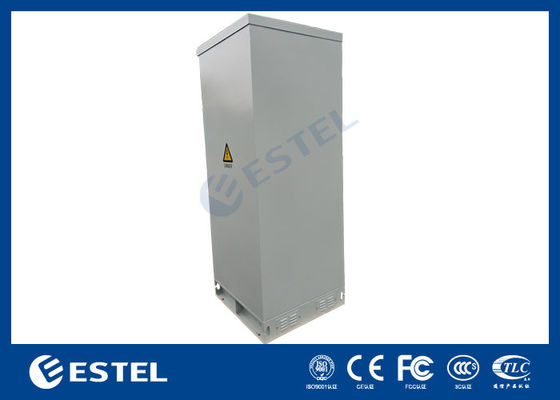

4. Floor Mounted Cabinet Pictures and Diagram
5. Cabinet with Air Condtioner Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension: W*D*H 750*750*2000mm |
| Layout | One compartment | |
| Equipment Installation Method | 19” rack, 38U free space | |
| Door | With one front door, and three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, single wall with insulation | |
| Heat Insulation | 20mm PEF | |
| Ingress Protection | IP55 | |
| Installation Way | Floor mounted, with installation accessories | |
| Temperature Control | Cooling | Air conditioner |
| Lighting | LED lamp | LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 95% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |
6. Cabinet Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Electrical Cabinet | 1 | Set |
(1) External Dimension: W*D*H 750*750*2000mm (2) One compartment: 19”, 38U (3)With one front door, and three point lock for outdoor cabinet (support padlock) (4) Material: Galvanized steel, single wall with insulation |
| 2 | Air Conditioner | 1 | Set | Cooling capacity: 600W, Power Supply: 48VDC |
| 3 | LED Lamp | 1 | PC | 48VDC |
| 4 | Package | 1 | Set | Wooden Case |
7. LED Lamp And Door Sensor
LED lamp is installed at the top of the cabinet.
8. Floor mounting
- The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
- The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
- Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.
9. Cooling
Air conditioner
Cooling capacity: 600W.
Power Supply: 48VDC.
Installed on front door.
10. Packing and Shipping
Cabinet package use free fumigation woodcase which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
-
