| Product Name: | Outdoor Communications Cabinet | Cabinet External Size: | W×D×H 900×900×2100mm |
|---|---|---|---|
| 19 Inch Rack: | 40U | Color: | RAL7035 Grey |
| Integrated Accessories: | PDU, EMS,sensors | Material: | Galvanized Steel, Single Wall With Insulation |
| Cabinet Lock: | Anti-theft Three Point Lock(support Padlock) | Type: | Network Cabinet,Telecom Outdoor Cabinet,Outdoor Cabinet For BTS |
| Surface Treatment: | Outdoor Anticorrosion Powder Coating | Protection Level: | IP55 / IP65 |
| Application: | Telecommunication,base Station,Electronic Ect,Outdoor Electronic Equipment,FTTX Network/Telecom | Service: | OEM ODM |
| Cooling System: | Air Conditioner Or Fans | Warranty: | 1 Year |
| Structure: | Front Door | ||
| High Light: | 40U Outdoor Communications Cabinet,Waterproof Outdoor Communications Cabinet,front door Outdoor Communications Cabinet |
||
Waterproof 40U Outdoor Communications Cabinet With Remote Monitory System And Power Distribution
1. Cabinet Structure
(1) External Dimension W×D×H 900×900×2100mm
(2) One compartment;
(3) totally two doors; with special lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.
2. Weatherproof Telecom Cabinet Features
- Material: good quality galvanized steel
- Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
- Cabinet load bearing: ≥400kg
- Ingress protection: IP55
- Flame retardance: comply with GB5169.7 test A
- Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.
- Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).
- Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
3. Table 1 Standard Compliance
| Standard | Description |
| GB/T 17626.7-1998 | Electromagnetic compatibility |
| GB4706.1 | Safety of household appliance and electrical appliance with similar use. |
| GB4798.1 | Environmental conditions existing in the application for electric and electronic products - storage |
| GB4798.2 | Environmental conditions existing in the application for electric and electronic products - transportation |
| GB4798.3 | Environmental conditions existing in the application for electric and electronic products - usage |

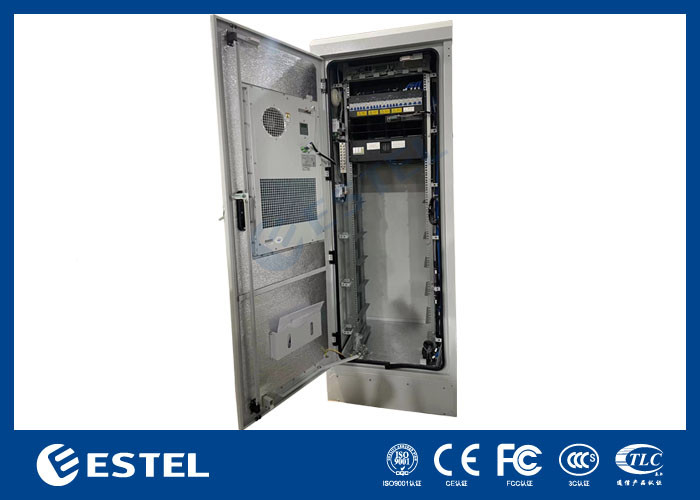

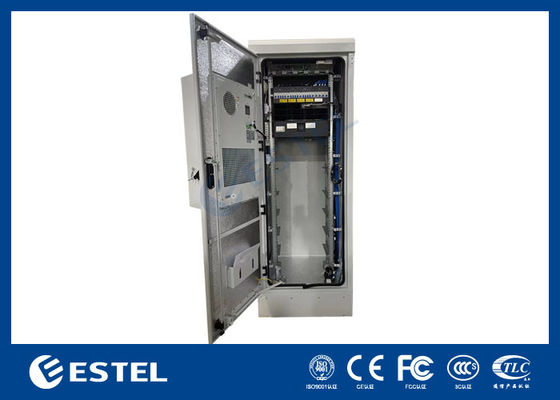

4. Cabinet Pictures and Diagram
5. Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension: W*D*H 900*900*2100mm Internal Dimension: W*D*H 750*750*1800mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack, 40U | |
| Door | With one front door, and three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, single wall with insulation | |
| Heat Insulation | 20mm PEF | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Air conditioner and fan |
| Lighting | LED lamp | LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |
6. Cabinet Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension: W*D*H 900*900*2100mm (2) One compartment: 19” 40U (3)With one front door, and three point lock for outdoor cabinet (support padlock) (4) Material: galvanized steel, single wall with insulation |
| 2 | Air Conditioner | 1 | Set | Cooling capacity: 1500W, Power Supply: AC220V, 50Hz |
| 3 | Auxiliary Direct Ventilation Fans | 2 | PC | AC220V |
| 4 | Environment Monitoring Unit | 1 | Set | 1U, AC220V, support SNMP communication |
| 5 | Water Sensor | 1 | PC | |
| 6 | Smoke Sensor | 1 | PC | |
| 7 | Temperature and Humidity Sensor | 1 | PC | |
| 8 | Door Sensor | 1 | PC | |
| 9 | LED Lamp | 1 | PC | AC220V |
| 10 | Power Distribution Unit | 1 | Set |
Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4 Input Voltage: AC220V. |
| 11 | Package | 1 | Set | Wooden Case |
7. LED Lamp And Door Sensor
LED lamp and door sensor are installed at the top of the cabinet.
9. Cooling
Air conditioner
Cooling capacity: 2000W.
Power Supply: AC220V, 50Hz.
One installed on front door, the other on back door.
10. Packing and Shipping
Cabinet package use free fumigation woodcase which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
