| Product Name: | Outdoor Server Cabinet | Mateiral: | Galvanized Steel |
|---|---|---|---|
| External Dimension: | H800mm×W1000mm×D2000mm ( Can Be Customized) | Internal Space: | 19 Inch, 38U |
| Coating: | Polyester Powder Coating | Color: | RAL7035 |
| Insulation: | PEF 20mm | Lock: | Three-point Lock On Front And Back Door |
| Hinge: | Inner Hinge | Installation Options: | Floor Mounted |
| Cable Routing: | Cable In And Out From The Bottom Of Cabinet | ||
| High Light: | 19 Inch outdoor telecom cabinet with ac,Outdoor Server Cabinet With Air Conditioner,outdoor telecom cabinet with ac |
||
IP55 Rated 19 Inch Rack 38U Outdoor Server Cabinet With Air Conditioner For Cooling
Outdoor Server Cabinet Product Descriptions
ET801020A-38U is an outdoor cabinet which can protect customer’s equipments from damage and extreme weather conditions. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipments. Both active telecom equipments and passive telecom equipments can be accomodated inside the cabinet.
Outdoor Server Cabinet Features
- Material: good quality galvanized steel
- Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
- Cabinet load bearing: ≥400kg
- Ingress protection: IP55
- Flame retardance: comply with GB5169.7 test A
- Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.
- Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).
- Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
Outdoor Server Cabinet Technical Specifications
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET801020A-38U |
| Protection Level | IP55 | |
| External Dimension | H800mm×W1000mm×D2000mm ( can be customized) | |
| Internal Space | 19 inch, 38U | |
| Material | Galvanized steel; 1.2mm thickness; single layer; Thickness of bearing parts: 2.0mm | |
| Insulation | PEF 20mm | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Three-point lock on front and back door | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted, with 4 wheels on the bottom | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | A front door and a back door, front and back maintenance | |
| Cooling | Options | Air conditioner |
| Cooling Capacity | 1500W | |
| Input Voltage | 48VDC | |
| Communication | RS485 | |
| LED Lamp | Voltage:48VDC, LED Lamp, 6W, with switch | |
| Environment | Working Temperature | -40℃~+55℃(+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude |
0~4000meters |
|

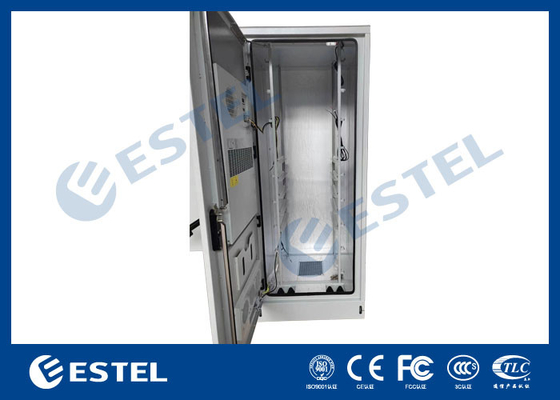

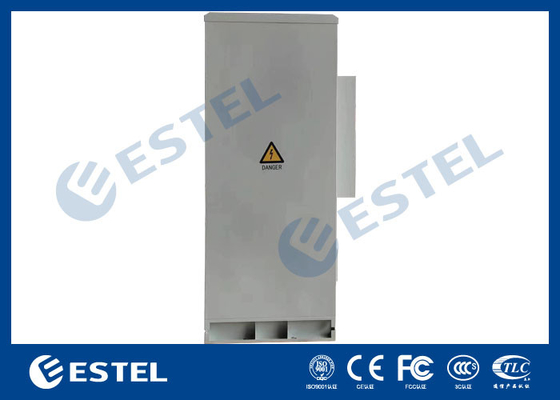

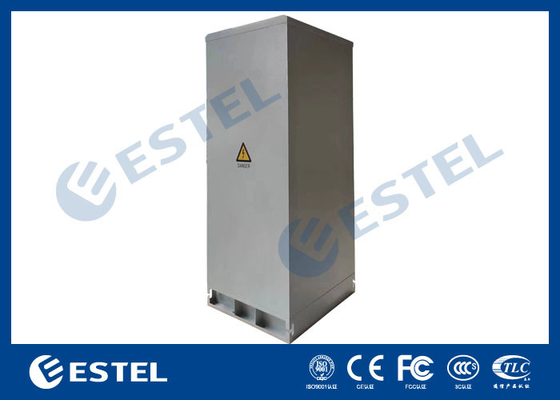

Outdoor Server Cabinet Product Photos
Dimension Diagram
Cabinet Applications
The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
LED Lamp And Door Sensor
LED lamp and door sensor are installed at the top of the cabinet.
(1) Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
(2) Door hinges use inner hinge mode.inside installation,inside fixing, no outer screws and embedded cabinet door, these design can protect cabinet against the theft and water access. Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.

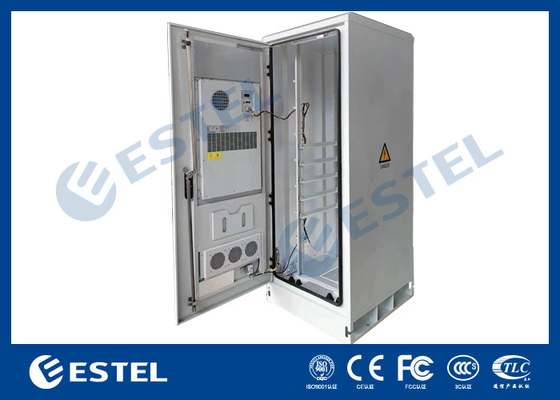

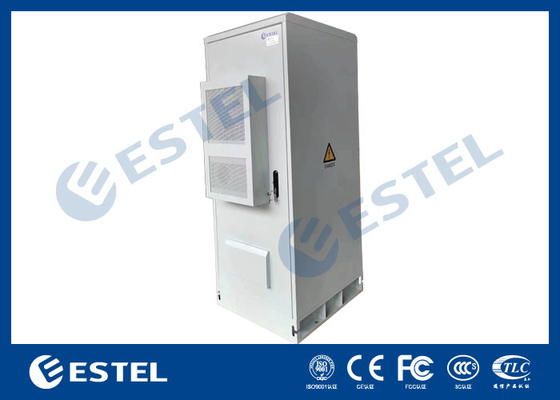

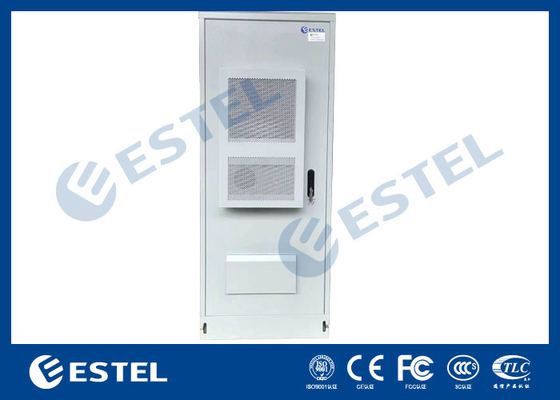

Cabinet Cooling
Air conditioner
Cooling capacity: 2000W.
Power Supply: AC220V, 50Hz.
One installed on front door, the other on back door.
