42U IP55 Anti Corrosion Outdoor Equipment Cabinet With Upper And Lower Compartment
Product Details
Outdoor Equipment Cabinet Anti Corrosion
,Outdoor Equipment Cabinet With Compartment
,Outdoor telecom equipment cabinets
42U IP55 Anti corrosion outdoor Equipment Cabinet with upper and lower compartment
1. Cabinet Specifications
| External Size | W*D*H 900*900*2150mm. |
|
Material |
Galvanized steel,sandwich structure panel,with thermal insulation. |
|
|
Two compartment for installing 19” equipment |
|
Component |
The whole cabinet is composed of three parts:top cover,cabinet body and base.The installation method is floor mounnted. |
| Protection Level |
IP55 |
| Cabinet Inlets | From cabinet bottom |
| Illumination/lighting | AC220V LED lamp |
| Heat Insulation | PEF |
|
Grounding Protection |
Copper bar |
|
Color |
Light Grey |
|
Air conditioner |
Cooling Capacity:1500W |
|
Fan |
220VAC,temperature adjustable |
|
Accessories Options |
PDU, Environment monitoring system |
|
Alarm sensors |
The door sensor, water sensor, smoke sensor, temperature and humidity sensor |
| Flame retardant | Comply with GB5169.7 test A |
| Door type | With 2 front door |
|
Cabinet Lock |
Anti-theft three point lock(support padlock) |
| Package | Wooden case with pallets |
| Certificates | CE |
2. Cabinet Application
Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
3. Cooling System Pictures
- Cabinet Cooling System
- Outdoor telecom cabinet cooling is an important aspect of maintaining the optimal temperature inside the cabinet to ensure the proper functioning of telecom equipment. There are several cooling methods that can be used, such as:
- Air Conditioning: Installing an air conditioning unit inside the cabinet can help regulate the temperature and remove excess heat. It is important to choose an air conditioner that is specifically designed for outdoor use and can withstand harsh weather conditions.
- Fans and Ventilation: Using fans and ventilation systems can help circulate air inside the cabinet and remove heat. This can be achieved through the use of exhaust fans, intake fans, or natural ventilation methods like louvers or vents.
- Heat Exchangers: Heat exchangers are devices that transfer heat from the inside of the cabinet to the outside environment. They work by using a coolant or refrigerant to absorb heat from the cabinet and release it outside.
- Passive Cooling: Passive cooling methods involve using materials or designs that naturally dissipate heat without the need for active cooling systems. This can include using heat-resistant materials, insulation, or reflective coatings to minimize heat absorption.
It is important to consider factors such as the size of the cabinet, the amount of heat generated by the equipment, and the environmental conditions when choosing the appropriate cooling method for
4. Cabinet Accessory List
| No. | Item | Quantity | Unit | Specs |
| 1. | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension: W*D*H 900*900*2150mm |
| 2. | Air Conditioner | 1 | Set | Cooling capacity: 1500W, Power Supply: AC220V, 50Hz |
| 3. | Air Conditioner | 1 | Set | Cooling capacity: 1000W, Power Supply: AC220V, 50Hz |
| 4. | Auxiliary Direct Ventilation Fans | 2 | PC | AC220V,install on the top of the cabinet |
| 5. | Environment Monitoring Unit | 1 | Set | 1U, AC220V, support SNMP communication |
| 6. | Water Sensor | 1 | PC | |
| 7. | Smoke Sensor | 1 | PC | |
| 8. | Temperature and Humidity Sensor | 1 | PC | |
| 9. | Door Sensor | 1 | PC | |
| 10. | LED Lamp | 1 | PC | AC220V |
| 11. | Package | 1 | Set | Wooden Case |
5. Cabinet Door and Lock
The cabinet includes two front doors. The cabinet door uses embedded structure. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.

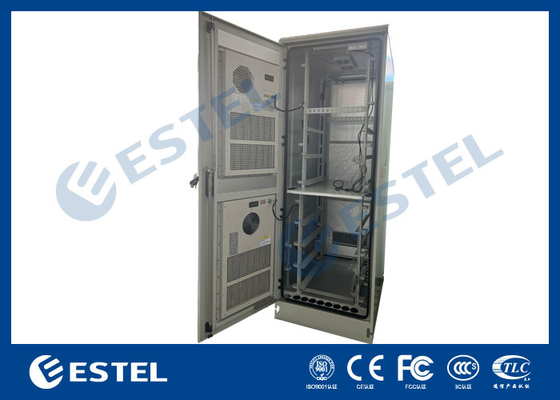

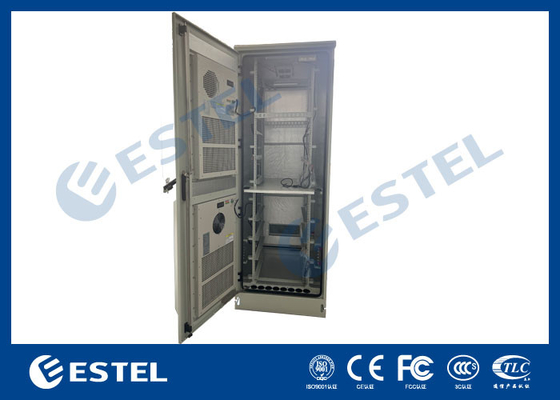

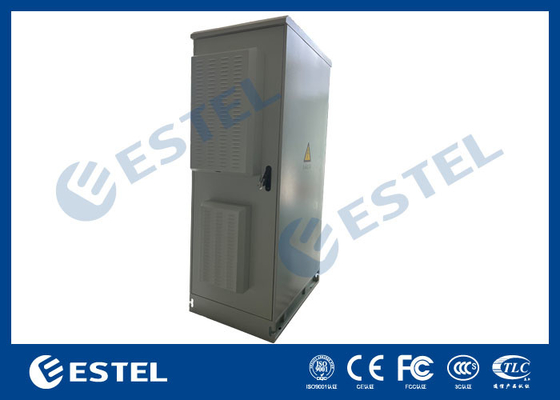

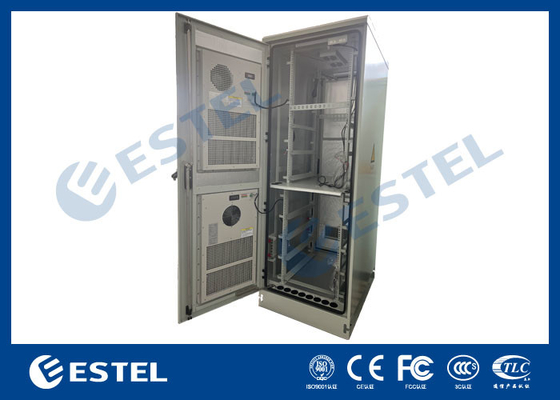

6. Cabinet pictures
-
