IP55 Waterproof Outdoor Telecom Cabinet Two Doors With 1500W Air Conditioner

IP55 Waterproof Outdoor Telecom Cabinet 32U 19 Inch Two Doors 1500W Air Conditioner 150W/K Heat Exchanger

1. Feature Of IP55 Waterproof Outdoor Telecom Cabinet

● The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment
● 32 rack units (RU), standard 19” rail
● IP grade: IP55
● Cabinet cooling: 1500W air conditioner, 150W/k Heat Exchanger and fans
● Heavy duty outdoor construction
● Front access and rear access

● High integration, compact structure, easy installation and migration on later stage
● Anti-theft three-point locking system, support padlock
● Outdoor powder coating
● Standard Color: light grey, RAL7035. Custom color available
● Cable inlets at cabinet bottom

2. Outdoor telecom Cabinet Protection Level:

IP54/IP55/IP65

IP55= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available

IP65= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
Custom with cutouts,insulation, hinges, latches or locks

3. Application of IP55 Waterproof Outdoor Telecom Cabinet

The IP55 waterproof outdoor telecom cabinet is designed to provide protection for telecom equipment in outdoor environments. Some applications of IP55 waterproof outdoor telecom cabinets include:

• Telecommunication Infrastructure: IP55 waterproof outdoor cabinets are commonly used to house telecom equipment such as base stations, antennas, routers, switches, and power supplies. They provide a secure and weatherproof environment for these critical components, ensuring their reliable operation.
• Remote Locations: Outdoor telecom cabinets are often deployed in remote locations where there is limited or no access to indoor facilities. These cabinets can withstand harsh weather conditions, including rain, snow, extreme temperatures, and dust, making them suitable for remote installations.
• Mobile Networks: IP55 waterproof outdoor cabinets are used in mobile network deployments to house equipment for cellular base stations. They provide protection for the sensitive electronics and ensure uninterrupted connectivity in outdoor environments.
• Industrial Applications: Outdoor telecom cabinets are also used in industrial settings where communication equipment needs to be deployed in outdoor areas. This includes applications such as oil and gas facilities, mining sites, transportation infrastructure, and manufacturing plants.

Smart City Infrastructure: With the increasing adoption of smart city technologies, outdoor telecom cabinets are used to house equipment for various applications, including smart lighting, surveillance systems, environmental monitoring, and public WIFI

4. Technical Parameters of IP55 Waterproof Outdoor Telecom Cabinet

5. Cabinet Drawing

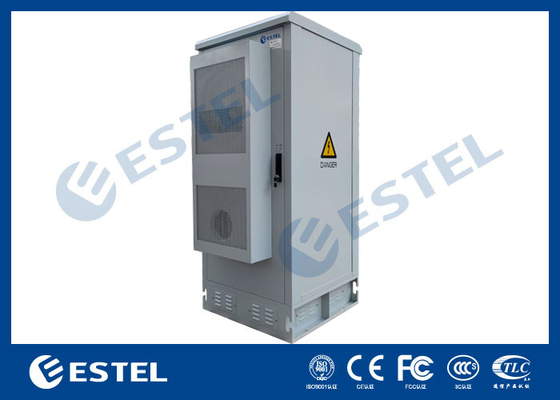

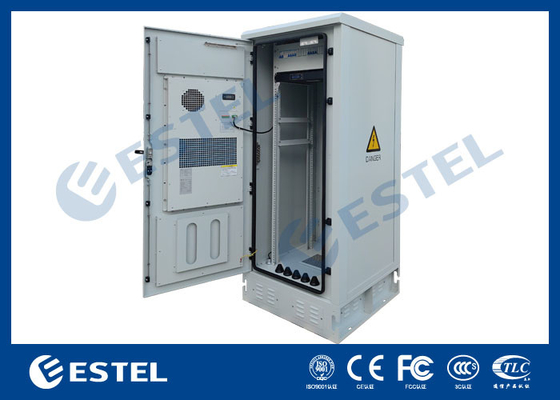

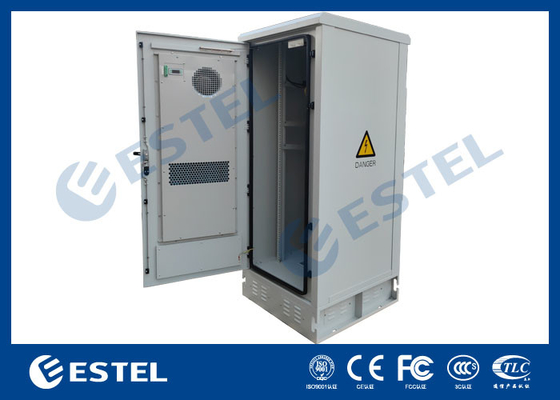

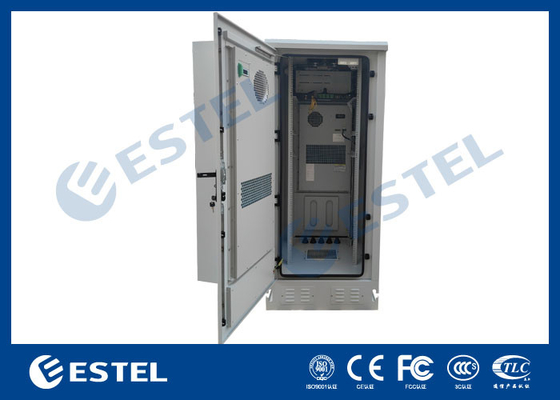

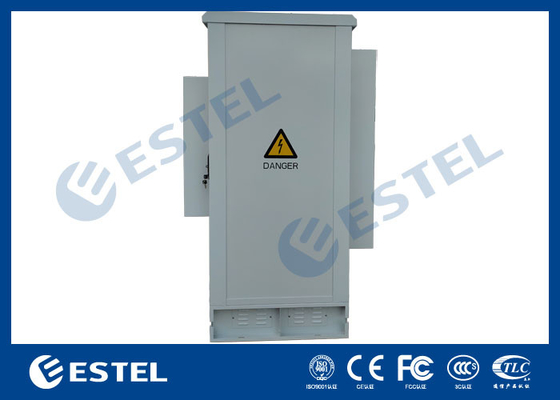

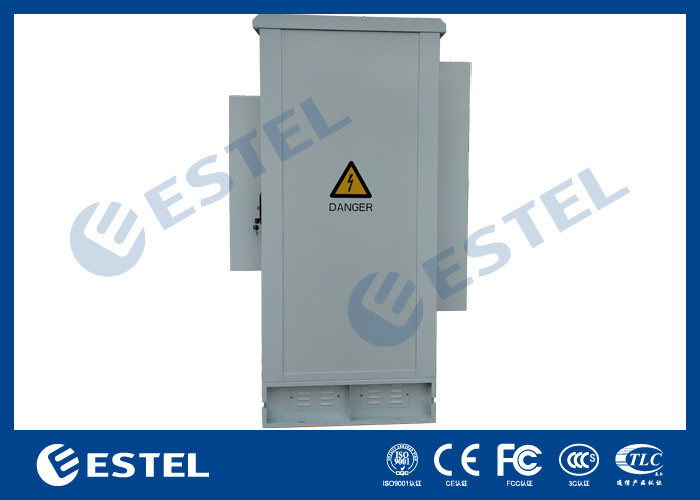

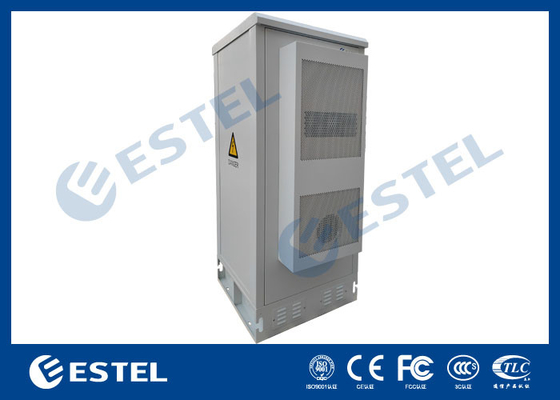

6. IP55 Waterproof Outdoor Telecom Cabinet Picture

7. Grounding Protection

The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.

The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.

Protective earthing of other equipments inside the cabinet should be connected to the grounding bar
