Product Details:
Payment & Shipping Terms:
|
| Material: | Galvanized Steel | Door Lock: | Anti-theft Three Point Lock |
|---|---|---|---|
| Door Type: | With One Front Door | Cooling System: | Fans |
| Application: | Telecommunication,base Station,Electronic Ect,Outdoor Electronic Equipment,FTTX Network/Telecom | Service: | OEM ODM |
| Warranty: | 1 Year | Surface: | Plating |
| Structure: | One Unit One Cabin | Surface Finish: | Powder Coating |
| Style: | Custom | Ip Rating: | IP65 |
| Highlight: | Outdoor Telecom Cabinet Wall Mounted,Outdoor Telecom Cabinet Pole Mounted,Small Size outdoor telecom enclosure |
||
1. Why need Outdoor Wall mounted Cabinet
The outdoor telecom enclosures, which are also referred to as telecommunications cabinets, are fully enclosed cabinets that help protect electrical cabling and other equipment from potentially damaging environments. Such damage can be caused by dust, rain, ice, and external heat.
2. Features Of Outdoor Equipment Cabinet
3. Specification Of Equipment Cabinet
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H 600×508×600mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack ,Height 10U | |
| Door | With 1 front door and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel | |
| Structure | Assembled | |
| Mounting type | Wall mounting type | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | AC220V Fan |
| Lighting | LED lamp | AC220V LED light+light switch |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
4. Cabinet And Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | PC |
(1) External Dimension:W×D×H 600×508×600mm (2) One compartment: 19” installation (3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) |
| 2 | Auxiliary Direct Ventilation Fans | 2 | PC | AC220V 50Hz installed on the front door. |
| 3 | LED Lamp | 1 | PC | AC220V 50Hz |
| 4 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 5 | Package | 1 | PC | Wooden Case |
5. Technical Parameters
Item Technical Parameter
Working temperature range: -40℃~ +60℃
Sorage temperature range: -50℃~ +70℃
Transport temperature range: -50℃~ +70℃
Relative Humidity 5%-- 100%
Air Pressure 62kpa~ 101kpa (similar to altitude 0m ~ 5000m)
Radiation Intensity 1400* (1±5%) W/m2
6. Connection And Fastening
· Use anti-loose threaded connection as structure and bearer connection.Anchor bolt for fixing cabinet use hot dip galvanized bolts.
· Door hings use inner hinge mode.
7. Equipment Cabinet Structure
(1) External Dimension:W×D×H 600×508×600mm
(2) One compartment: 19” installation
(3) With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)

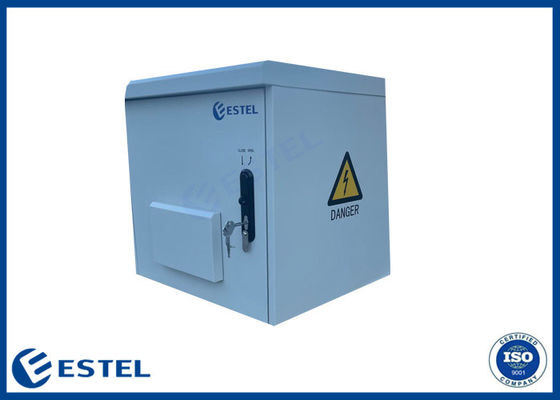

8. Cabinet Picture
9. Our Factory Instruction
Factory Size: 3000 Square Meters
No. of Main Production Lines: 5
Contract Manufacturing: OEM Service Offered, Design Service Offered, Buyer Label offered
Production Experience: 13 Years
10. Leading Time
Usually about 20-30 days. The exact lead time need to be confirmed according to the quantity of order.
11. FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
