17U 19in Floor Mounted Telecom Cabinet With Corrosion Protection

1.Floor mounted Cabinet Introduction

This cabinet is 1000mm High and 700mm Wide and 770mm Deep. ET111821707710015 is an outdoor cabinet which can protect customer’s equipments from damage and extreme weather conditions. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipments. Both active telecom equipments and passive telecom equipments can be accommodated inside the cabinet.

2.Cabinet Features

Compact and light single wall design

Highest protection against corrosion

Features an integrated roof

Thickness of plate: 1.2mm

Fully welded design, supplied complete, no assembly required

Surface finish: Degreasing, pickling, phosphoric wash, cleaning, and powder coated

3.Cabinet Door and Lock

The cabinet includes one front door and one back door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock. Each cabinet door include open door sensor, working together with the environment monitoring unit.

4.Optional Accessories(customized) :

● Cooling solution: Air conditioner/fan

● Power distribution unit: can meet the requirements of power system normal operation and equipments maintenance

●Sensors: can monitor internal temperature,humidity,fire/smoke,door opened state.

● Light: one piece LED tube light is for lighting insde and fixed on the top cover.

● Strong rack inside to be equipped with telecom equipments, power source, temperature control device and other attachments.

● Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.

5.Cabinet Technical Parameters

6. Features

• The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
• Including -48VDC illumination LED lamp.
• The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are cable inlets separately for power cable, signal cable and optical cable.
• All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.
• The cabinet includes 19” standard installation rack.

7. Technical Specs

(1) Applicable environment conditions:

Operating temperature: -40°C ~ + 55°C

Storage temperature: -50°C ~ + 70°C

Transport temperature: -50°C ~ + 70°C

Relative humidity (RH): 5%~99%

Air pressure: 62kPa ~ 101kPa (similar to 0m ~ 5000m altitude)

• Material: good quality galvanized steel
• Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
• Cabinet load bearing: ≥600kg
• Ingress protection: IP65
• Flame retardance: comply with GB5169.7 test A
• Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).
• Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.

Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.

8.Cabinet Diagram:

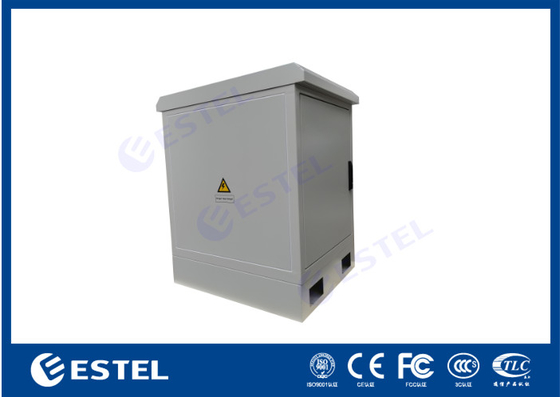

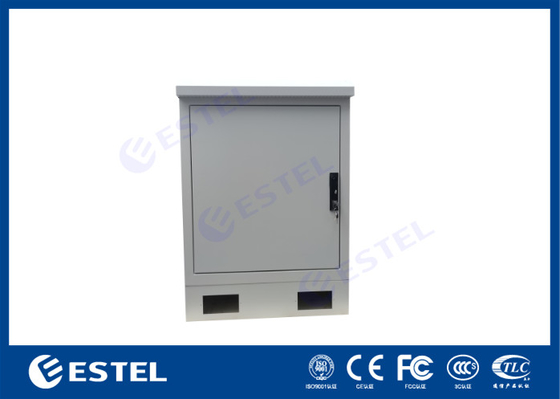

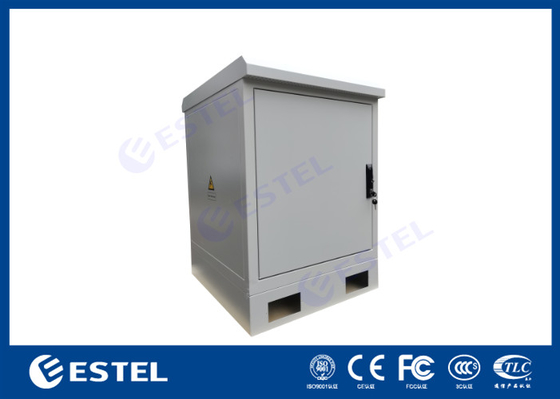

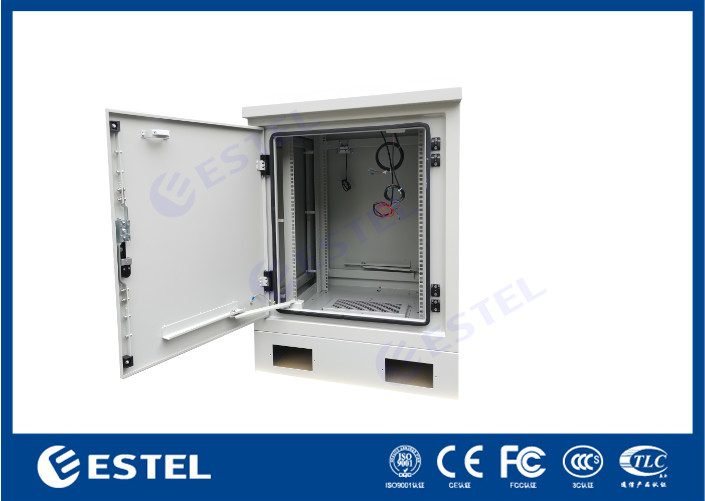

9. Cabinet Pictures:

Payment & Shipping Terms:

FAQ:

1.What materials are telecom cabinets made of?

Telecom cabinets can be made from a variety of materials, but most commonly they are made from aluminum, steel, or fiberglass. The material used will depend on factors such as the environment in which the cabinet will be installed, the weight of the equipment to be housed, and the level of security required.

2.What size of telecom cabinet do I need?

The size of the telecom cabinet you need will depend on the amount and type of equipment you need to house. Generally, telecom cabinets come in various sizes, ranging from small enclosures that can fit a single piece of equipment, to large cabinets that can hold multiple racks of equipment.

3. What are the different types of telecom cabinet cooling options?

Telecom cabinets require cooling to prevent equipment from overheating. There are several cooling options available, including air conditioning units, fans, and passive cooling systems. The type of cooling system you choose will depend on the environment in which the cabinet will be installed, the amount of heat generated by the equipment, and the level of cooling required.

4.What is the lifespan of a telecom cabinet?
The lifespan of a telecom cabinet will depend on several factors, including the quality of the materials used in its construction, the level of maintenance it receives, and the environmental conditions in which it is installed. A well-maintained telecom cabinet can last for many years.

Regular maintenance is important to ensure that your telecom cabinet is functioning properly and to extend its lifespan. Maintenance tasks may include cleaning the cabinet, inspecting for damage, checking and replacing filters, and ensuring that the cooling system is working properly. It's important to follow the manufacturer's instructions for maintenance and to consult with a professional if you have any questions or concerns.
