Product Details:
Payment & Shipping Terms:
|
| External Dimension: | W×D×H 750×700×2000mm (38U 19" Rack) | Material: | 304 Stainless Steel |
|---|---|---|---|
| Color: | Anti-corrosion Outdoor Powder Coating Grey RAL7032 | Protection Grade: | IP55 |
| Cooling: | DC48V Air Conditioner And DC48V Fans | Working Temperature: | -40°C ~ +55°C |
| Cabinet Lock: | Anti-theft Three Point Lock | Structure: | Assembled, Single Layer Stainless Steel +heat Insulation Cotton |
| High Light: | Stailess Steel Telecom Cabinet,1.2mm Thickness Telecom Cabinet,Stailess Steel Telecom Enclosure |
||

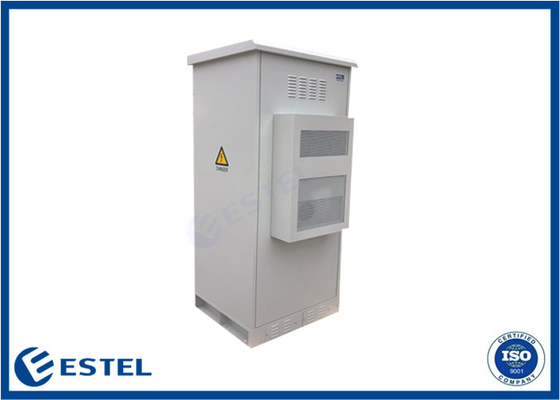

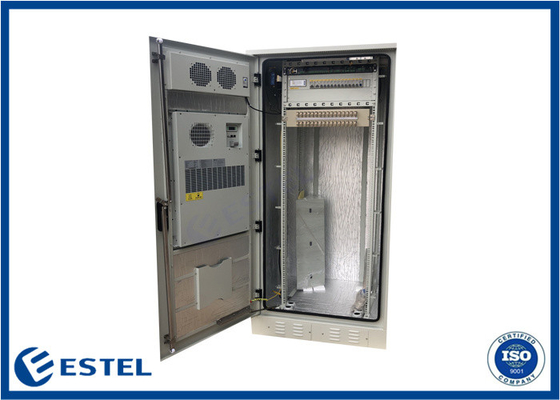

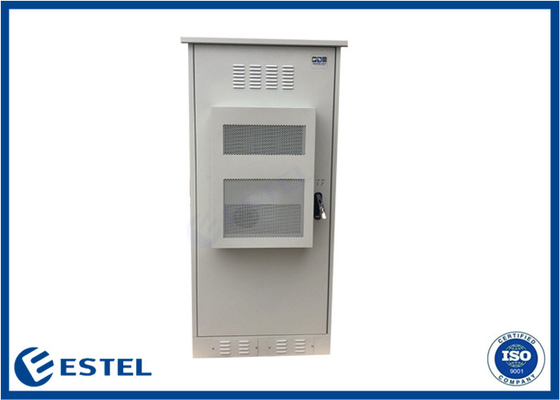

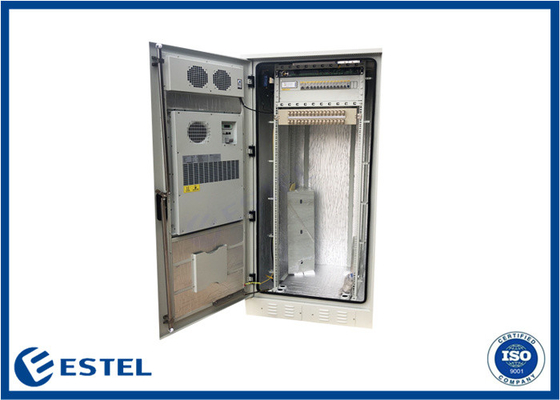

IP55 39U telecom cabinet 304 stailess steel single wall 1.2mm thickness with DDF
Modle: ET7570200-EQ
1. Outdoor Telcom Cabinet Application
The cabinet is well suited for a wide range of telecom and industrial application such as:
(1) Radio access networks (2G, 3G, 4G/LTE/WiMax)
(2) Optical Networks
(3) DSL
(4) Cable TV
(5) Rail and Metro
2. Outdoor Telcom Cabinet Features
(1) Standard 19“ rack for installation
(2) IP55
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
(4) All the cables used in the cabinet are made from flame retardant materials.
(5) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
(6) Cabinet cooling: air conditioner.
(7)-48VDC LED light is switched on during the door being opened
(8)Custom made power distribution unit
3. Outdoor Telcom Cabinet Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: H×W×D 2000×750×700mm |
| Layout | 1 compartment | |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | 304 Stainless Steel, single wall with insulation | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Air conditioner and fans |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
4. Outdoor Telcom Cabinet Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 |
Outdoor Telecom Cabinet |
1 | Set |
(1)External Dimension: H×W×D 2000×750×700mm (2)One compartment: including 19” rack (3)With one front door , and anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: 304 Stainless Steel, single wall with insulation |
| 2 | Air Conditioner | 1 | Set | Cooling Capacity: 2000W; Power Supply: DC48V |
| 3 | Fan | 2 | PC | DC48V |
| 4 | LED Lamp Sensor | 1 | PC | Used for controlling LED lamp on/off |
| 5 | LED Lamp | 1 | PC | DC48V,used for illumination in the cabinet |
| 6 | DDF | 1 | Set |
(1)Model:MPX108-SM16 (2) Capacity: 16 system (3) Size: H×W×D 110×485×95mm (4) Connection method: SIEMENS mode (5) Including cable and related accessories, cable head specifications: 75-2-1 |
| 7 | Package | 1 | Set | Wooden Case |
5. Dimension Diagram
