Pole Mounted Outdoor Electrical Cabinet Rustproof With 4 Fans for Cooling
Product Details
Pole Mounted Outdoor Electrical Cabinet
,Rustproof Outdoor Electrical Cabinet
,Fans Cooling Pole Mount Enclosure
Rustproof 19 Inch Rack Pole Mounted Outdoor Electrical CabinetHang On The Pole Enclosure
1, Description Of Outdoor Telecom Cabinet
Outdoor cabinets are designed to provide a safe solution to install telecommunications equipment in outdoor conditions. These cabinets are offering protection against different weather conditions, dust and vandalism. The cabinet is with one compartment. Using air conditioner to ensure the equipment operate normally at stable temperature range, so as to make the service life of the equipment much longer and their performance more stable.
2, Selling points and Feature Of Outdoor Equipment Cabinet
Compact and light double-walled design
Highest protection against corrosion
Features an integrated roof
Made of Galvanized steel, 1.2mm thickness, single wall.
Polyester powder coat with UV protection
PUR non-porous gasket—suitable for extreme temperatures
Pole mount accessories included
Fully welded design, supplied complete, no assembly required
Surface finish: Degreasing, pickling, phosphoric wash, cleaning, and powder coated
3, Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | 435mm×460mm×736mm (W×D×H) |
| Layout | One compartment | |
| Equipment Installation Method | 19” standard rack | |
| Door |
The cabinet door uses embedded structure. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supports padlock
|
|
| Material | Hot dip galvanized steel degreasing, derusting, rustproof phosphating (or galvanizing), powder coated. the insulation resistance between grounding devices and cabinet body parts is not lower than 2X104M/500V(DC) | |
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | 4 fans |
| Temperature | Temperature | Working Temperature: -40°C ~ + 60°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | ≤95% (at + 40°C) |
| Pressure | Air Pressure | 70kPa ~ 106kPa |
4, Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
435mm×460mm×736mm (W×D×H) (2) One compartment; (3) With one front door (4) Material:hot dip galvanized steel degreasing, derusting, rustproof phosphating (or galvanizing), powder coated. the insulation resistance between grounding devices and cabinet body parts is not lower than 2X104M/500V(DC)thickness of inner plate: 0.8mm, with heat insulation between two walls. |
| 2 | Fan | 4 | Set | 4 set Fans |
| 3 | Package | 1 | Set | Wooden Case |
| 4 |
Heater
|
1 | Set |
300W-600W
|
| 5 | Thermostat | 1 | Set |
350W
|
| 6 |
Control board
|
1 | Set |
ET731
|
| 7 |
Temperature sensors
|
2 | Set |
5, Enclosure Cooling
4 pcs DC48V Fans.
6, Cabinet Structure
This cabinet is 736mm High and 435mm Wide and 460mmDeep. This cabinet represent a suitable solution for projects with high requirements on stable in-rack climate. They are specifically designed for mounting onto a column.
Optional Accessories :
● T&H solution: We adopt Fan &Heater &Thermostat to control temperature and humidity ensuring the best working condition inside the cabinet.
● Monitor System(optional): can monitor internal temperature,humidity,fire/smoke,door opened state.
● Light: one piece LED tube light is for lighting insde and fixed on the top cover.
● Strong rack inside to be equipped with telecom equipments, power source, temperature control device and other attachments.
● Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.
.
7, Cabinet Layout Diagram:

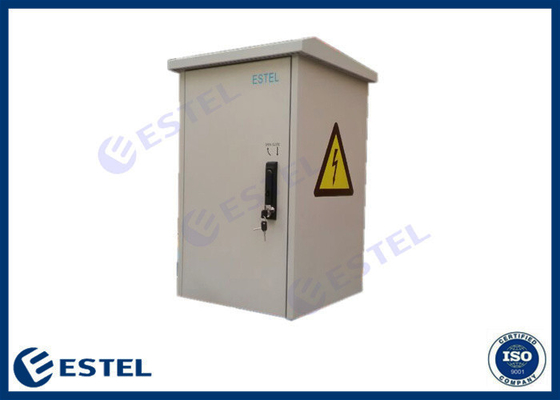

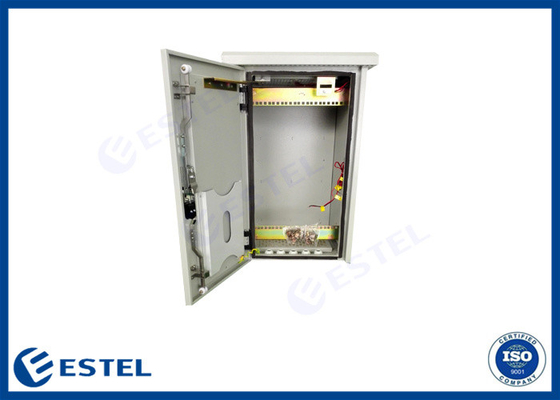

8.Cabinet Picture

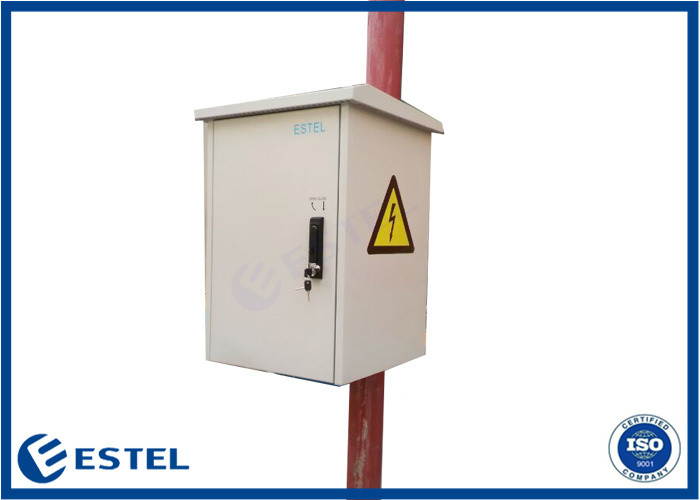

9.Pole mounted way
-
