Product Details:
Payment & Shipping Terms:
|
Material: | High Quality Galvanized Steel | Wall: | Galvanized Steel 1.2mm |
---|---|---|---|
Insulation Material: | 20mm PEF | Compartment: | 1 |
Door: | With One Front Door | Cooling: | 500w Air Conditioner |
Protect: | IP55 | Size: | Customized |
High Light: | Floor Mounted Outdoor Telecom Enclosure,Small Size Telecom Cabinet,19 Inch Rack Telecom Cabinet |
16U Floor Mounted Outdoor Enclosure 19 Inch Rack Telecom Cabinet
1.16U telecom Cabinet Introduction
The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
2.Cabinet Features
-Ingress protection is IP55, we can provide IP65 cabinet based on client’s actual.
-Made of heavy gauge galvanized material.
-Front door use standard three-point anti-theft lock. The door lock forms an upper, middle and lower three-point locking structure. For the cabinet with large area, the locking effect is safe and reliable.
-Standard 19 inch mounting posts.
-Doors secured with steel dead locking system lock (support PADLOCK)
-It is installed in the ground root or above ground column base system by "direct burying"
-Cable entry is via the base as standard with side or roof entry available upon request.
3. Cabinet Instructions
For those who need more than just standard cabinet, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions. It provides a secure,climate controlled environment for any electronic equipment.
This battery cabinet is 1750mm High and750mm Wide and 750mmDeep. This cabinet is the ultimate choice for outdoor racking requirements.
4.Table 1 Standard Compliance
Standard | Description |
GB/T 17626.7-1998 | Electromagnetic compatibility |
GB4706.1 | Safety of household appliance and electrical appliance with similar use. |
GB4798.1 | Environmental conditions existing in the application for electric and electronic products - storage |
GB4798.2 | Environmental conditions existing in the application for electric and electronic products - transportation |
GB4798.3 | Environmental conditions existing in the application for electric and electronic products - usage |
5.Cabinet Technical Parameters
Configuration | Item | Technical Parameter |
Cabinet | Model | ET6565100-EQ |
Protection Level | IP55 | |
External Dimension | H1000mm×W650mm×D650mm | |
Internal Dimension | 19inch ,16U | |
Material |
Galvanized steel, 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm |
|
Insulation | PEF | |
Coating | Polyester powder coating | |
Color | RAL7035 | |
Lock | Anti-theft three-point locking system | |
Hinge | Inner hinge | |
Installation Options | Floor mounted , Roof mounted, Wall mounted | |
Cable Routing | Cable in and out from the bottom of cabinet | |
Maintenance | One front door, front maintenance | |
Cooling |
AC air conditioner |
500W 220VAC 50Hz |
Others | 220VAC 50Hz LED lamp | |
The entrance guard switch | ||
Environment | Working Temperature | -40℃~+55℃ (+Solar Radiation) |
Storage Temperature | -40℃~+70℃ | |
Working Humidity | 5%~95%(No condensation) | |
Working Altitude | 0~4000 meters |

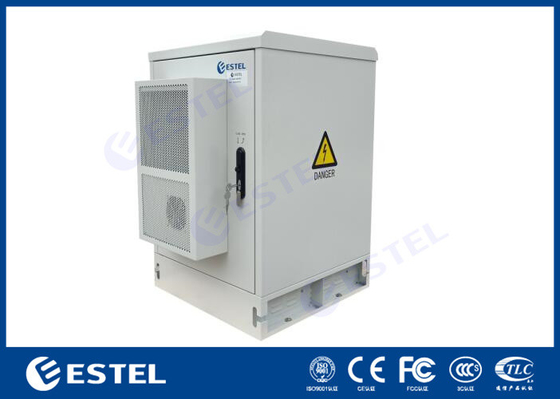

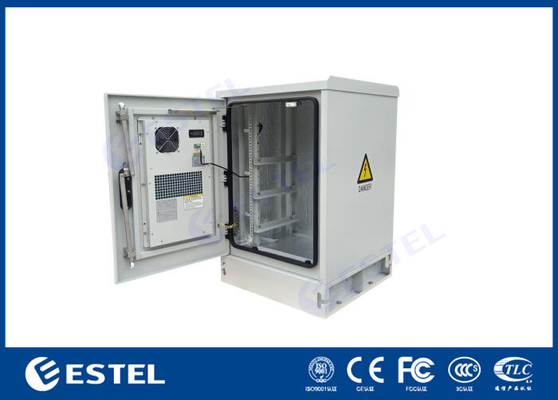

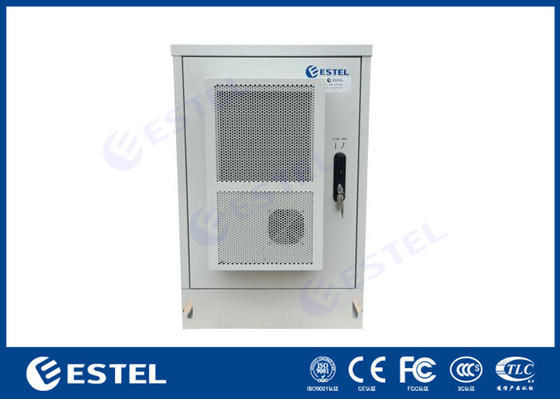

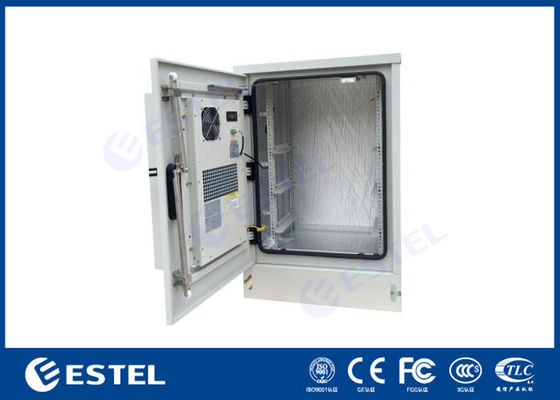

6.Cabinet Pictures
7.Air conditioner Datasheet:
8.Various cooling system for your choice
9.Packing and Shipping
Cabinet package use free fumigation woodcase which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
