Product Details:
Payment & Shipping Terms:
|
| Material: | High Quality Galvanized Steel | Wall: | Galvanized Steel 1.2mm |
|---|---|---|---|
| Insulation Material: | 20mm PEF | Compartment: | 1 |
| Door: | With One Front Door | LED: | LED 1pcs |
| Protect: | IP55 | Cooling System: | Air Conditioner |
| High Light: | IP55 Pole Mounted Enclosure,19 Inch Pole Mounted Enclosure,Pole mounted Outdoor Battery Cabinet |
||
Pole mounted Battery Cabinet Outdoor 19 Inch Rack
1.Pole mounted Battery Cabinet Introduction
The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
2.Cabinet Features
Compact and light double-walled design
Highest protection against corrosion
Features an integrated roof
Made o fGalvanized steel, 1.2mm thickness, single wall.
Polyester powder coat with UV protection
PUR non-porous gasket—suitable for extreme temperatures
Pole mount accessories included
Fully welded design, supplied complete, no assembly required
Surface finish: Degreasing, pickling, phosphoric wash, cleaning, and powder coated
3. Cabinet Instructions
This cabinet is 550mm High and 400mm Wide and 250mmDeep. This cabinet represent a suitable solution for projects with high requirements on stable in-rack climate. They are specifically designed for mounting onto a column.
Optional Accessories :
● T&H solution: We adopt different components to control temperature and humidity ensuring the best working condition inside the cabinet.
● Monitor System: can monitor internal temperature,humidity,fire/smoke,door opened state.
● Light: one piece LED tube light is for lighting insde and fixed on the top cover.
● Strong rack inside to be equipped with telecom equipments, power source, temperature control device and other attachments.
● Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.
4.Cabinet Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET402555 |
| Protection Level | IP55 | |
| External Dimension | H550mm×W400mm×D250mm | |
| Internal Dimension | 19 inch rail | |
| Material | Galvanized steel, 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Round lock | |
| Hinge | Inner hinge | |
| Installation Options | Pole mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door, front maintenance | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters |

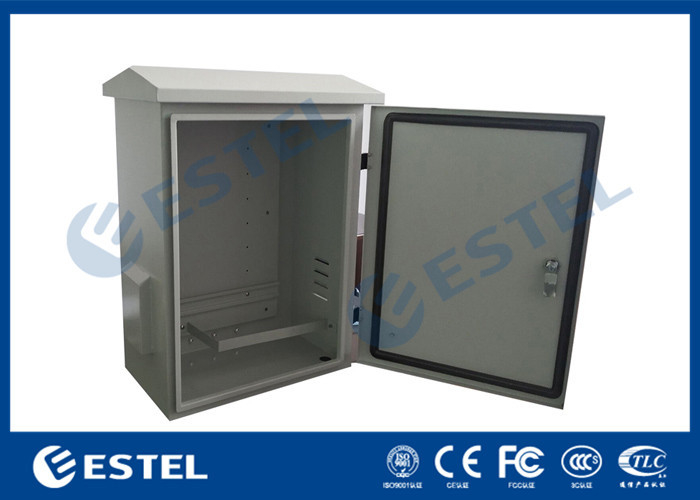

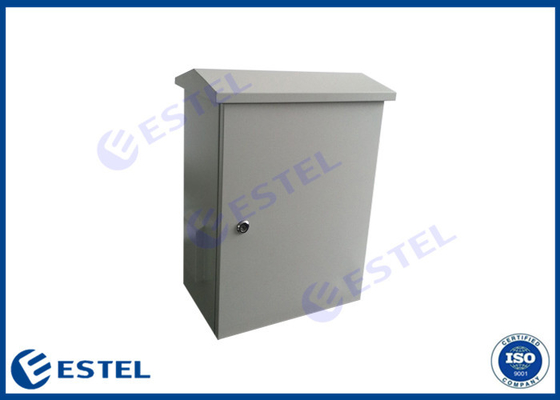

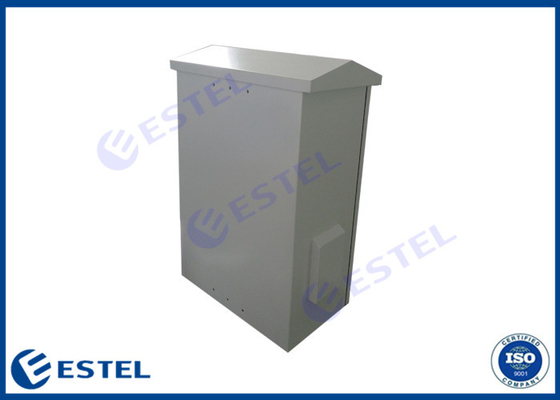

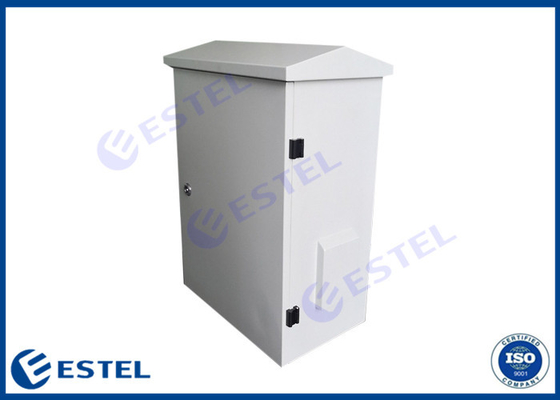

5.Cabinet Pictures
6.Pole mounted way:
7.Packing and Shipping
Cabinet package use free fumigation woodcase which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
