Product Details:
Payment & Shipping Terms:
|
| External Size: | W×D×H 900×900×2100mm Can Be Customized | Protection Level: | IP55 |
|---|---|---|---|
| Modle: | ET909021040B | 19 Inch Rack: | 40U |
| Cooling System: | Air Conditioner And Fan | Color: | RAL7035 Grey |
| Door: | One Front Door | Integrated Accessories: | PDU |
| Material: | Galvanized Steel, Single Wall With Insulation | Cabinet Lock: | Anti-theft Three Point Lock(support Padlock) |
| Surface Treatment: | Outdoor Anticorrosion Powder Coating | Type: | Distribution Box,Network Cabinet,Control Box,Telecom Outdoor Cabinet,Outdoor Cabinet For BTS |
| Application: | Telecommunication,base Station,Electronic Ect,Outdoor Electronic Equipment,FTTX Network/Telecom | Service: | OEM ODM |
| High Light: | Outdoor Telecom Cabinet With Battery Rack,Grey Outdoor Telecom Cabinet,Grey Color Telecom Cabinet |
||
19 inch Rack RAL7035 Grey Color Outdoor Telecom Cabinet with battery rack
1.Cabinet Basic infomation:
(1) External size: W×D×H 900×900×2100mm
(2) One compartment: the upper part is used for installing 19" equipment, the lower part is used for installing battery
(3) With one front door, and anti-theft lock for outdoor cabinet (support padlock)
(4) Material: single wall with heat insulation (5) IP55 (6) Floor mounted, including base
2.Outdoor Telecom Cabinet
- Cooling System: Air conditioner(air conditiner and fan)
- Protection Level: IP55 ,Waterproof,dust proof.
-The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
- The cabinet cooling uses air conditioner and fans.
- Including -48VDC illumination lamp.
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
- All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.
- The cabinet includes 19” standard installation rack.
3.Outdoor Telecom Cabinet Application Area
· Satellite Communication
· Wireless Backhaul
· Cable Television
· Navigation & Positioning
· Military Installation
· Port Security
4. Features Of Outdoor Equipment Cabinet
5. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1)External Dimension:W×D×H 900×900×2100mm (2)One compartment: including 19” rack. (3)With one front door , with three point lock for outdoor cabinet. (4) Material: galvanized steel, single wall with thermal insulation. |
| 2 | Air Conditioner | 1 | Set |
Cooling Capacity: 1500W Power Supply: 110VAC, 60Hz |
| 3 |
Power Distribution Unit |
1 | Set |
Grade B Lightning Proof AC Input: 63A/2P ×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4. Height: 4U |
| 4 | Fan | 2 | Set | DC48V |
| 5 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 6 | LED Lamp | 1 | PC | DC48V |
| 7 | Package | 1 | Set | Wooden Case |

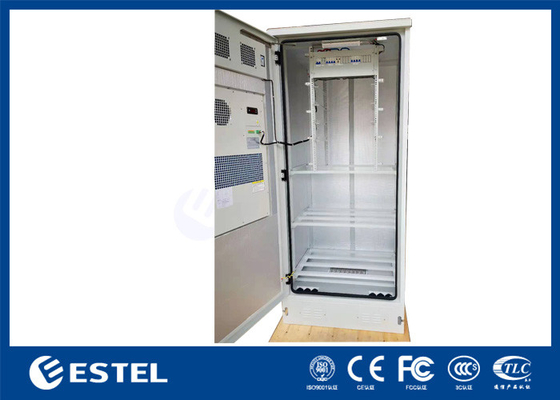

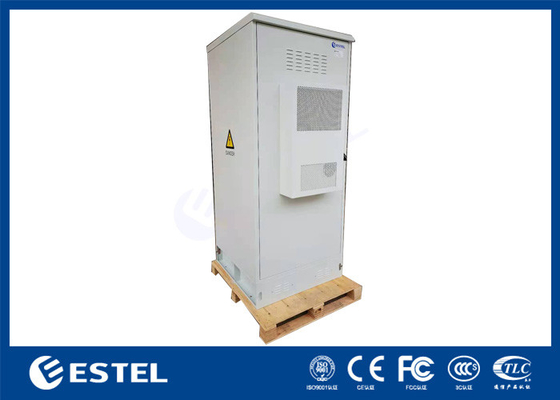

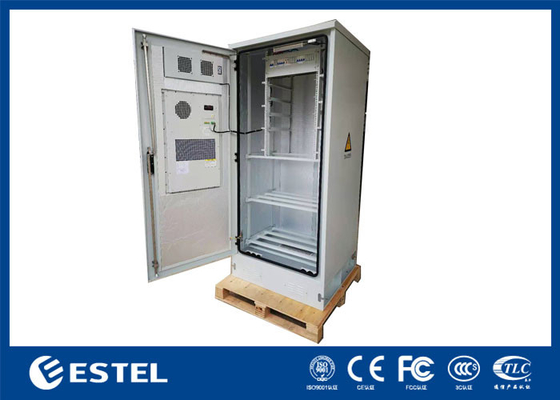

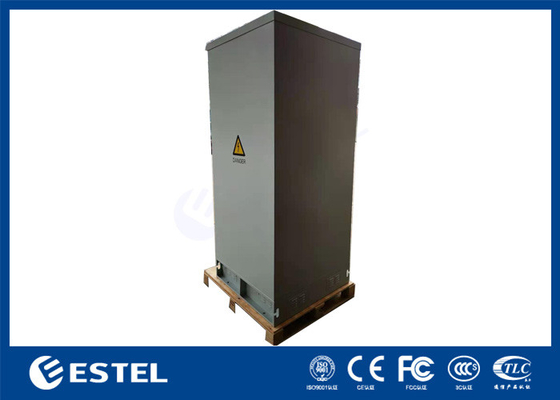

7. Cabinet Picture
8. Cabinet Description
8.1 Cabinet Material
The cabinet is made of galvanized steel, with double wall and the cabinet is assembled type.
8.2 Cabinet Door and Lock
The cabinet door uses embedded structure.
The door opening angle is larger than 110°and the door limit device can limit the opening angle.
The cabinet door lock is theftproof three point lock, supporting padlock.
9. Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
10. Packing pictures:
