Product Details:
Payment & Shipping Terms:
|
| Cabinet External Size: | H700mm×W450mm×D300mm | Protection Level: | IP55 |
|---|---|---|---|
| Modle: | ET11322345307007 | Type: | Network Cabinet,Telecom Outdoor Cabinet |
| Material: | Galvanized Steel | Color: | Customer Request |
| Application: | Telecommunication,base Station,Electronic Ect,Outdoor Electronic Equipment,FTTX Network/Telecom | Service: | OEM ODM |
| Cooling System: | Air Conditioner Or Fans,Heat Exchanger | Surface Finish: | Powder Coating |
| High Light: | Powder Coating 19 Inch Rack Cabinet,Base Stations 19 Inch Rack Cabinet,Outdoor Telecom Cabinet 7U |
||
7U Outdoor Cabinet 19 Inch Rack Cabinet For Telecom Power System Base Station
1.IP55/IP65
IP65= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
Custom with cutouts,insulation, hinges, latches or locks
IP55= Enclosures' Characteristics:
Complete protection from dust, oil, and other non-corrosive material
Complete protection from contacting with enclosed equipment
Protection from water, up to water projected by a nozzle against enclosure from any direction
Available in wall-mounted, free standing, trough, and telegraph pole mounting
Silk-screening logo, anodizing, or engraving services are available
2.Outdoor Telecom Equipment Cabinet
ET11322345307007 is an outdoor cabinet which can protect customer’s equipments from damage and extreme weather conditions. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipments. Both active telecom equipments and passive telecom equipments can be accomodated inside the cabinet.
What we can offer:
3.Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: H700mm×W450mm×D300mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack, 7U | |
| Material | Galvanized steel, double wall | |
| Heat Insulation | 20mm PEF | |
| Door | With one front door, and three point lock for outdoor cabinet (support padlock) | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Air conditioner 48VDC 200V |
| Lighting | LED lamp | 48VDC LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 95% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |

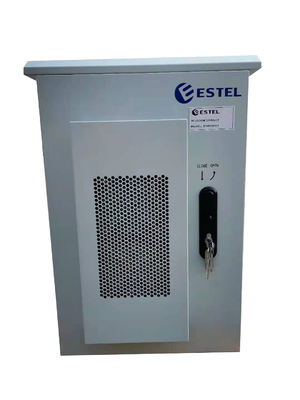

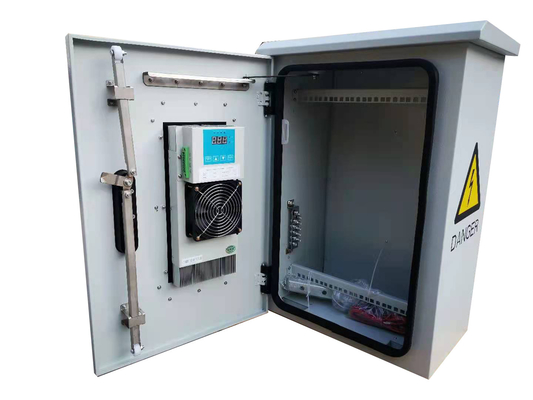

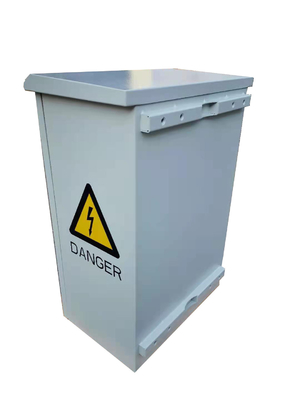

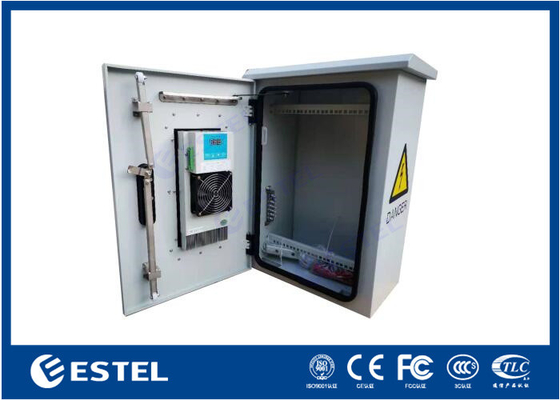

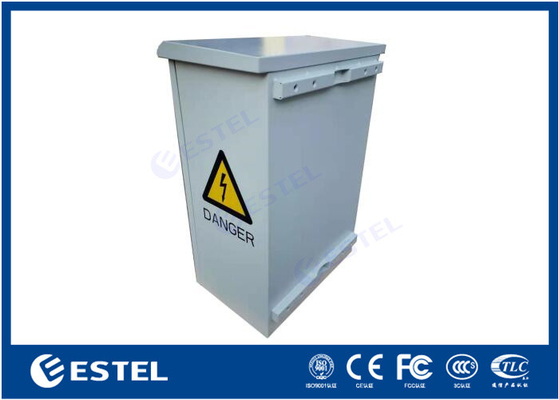

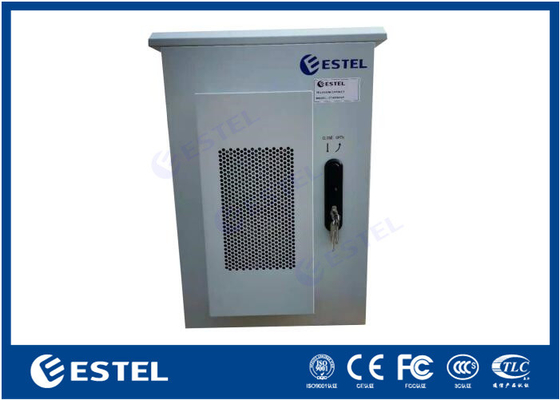

4.Cabinet Pictures
5.Applications of Outdoor Telecom Cabinet
6. Packing
Cabinet package use free fumigation plywood which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
7.Why Choose Us
Q1: Are you a Manufacturer or trading company?
A: We are a Professional Outdoor Cabinet Manufacturer .Our Factory include 8 business sections. Outdoor telecom cabinet, Air conditioner, Power supply, Intelligent Power Distribution. Battery, IOT,
Q2: Do you have any MOQ limit for outdoor cabinet ?
A: Can be offer 1 pc sample that you feel our high quality and excell service.
Q3: What is the leading time?
A: Sample order is 1-2 weeks, bulk order is about 25 days after receive the payment.
Q4.What is your payment terms?
A: Normally our payment term is 50% advanced by T/T, Balance before shipment.
Q5: Can you provide OEM ODM products with my brand and logo?
A: Yes, OEM & ODM is available..
Q6: Can I visit your company and factory in China?
A: Welcom to vist our factory anytime.
