Product Details:
Payment & Shipping Terms:
|
| Material: | High Quality Galvanized Steel | Walls: | Galvanized Steel 1.2mm |
|---|---|---|---|
| Insulation Material: | 20mm PEF | Compartment: | 1 |
| Door: | With One Front Door | LED: | LED 1pcs |
| Protect: | IP55 | Cooling System: | Air Conditioner |
| High Light: | 24U outdoor telecom cabinet,1.2mm Walls outdoor telecom cabinet,Galvanized Steel telecom racks cabinets |
||

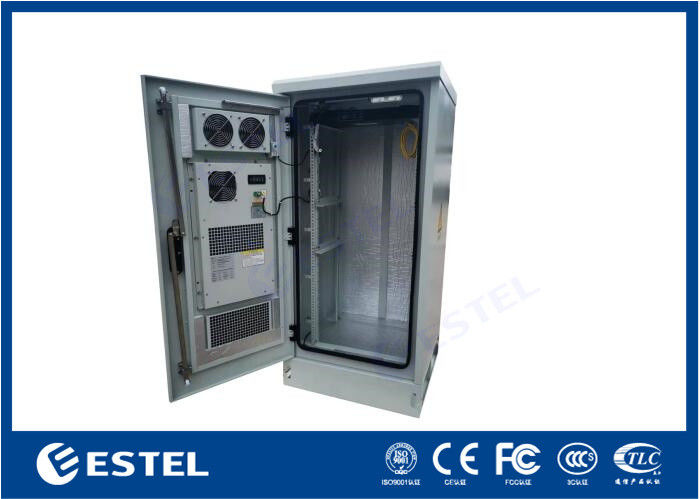

IP55 Waterproof Outdoor Telecom Cabinet 24U 19Inch With Air Conditioner
Introduction
Outdoor communication cabinet is widely used in power and communication systems, and its interior is equipped with working modules, batteries and other equipment. Because the cabinet is directly exposed to the natural environment and exposed to solar radiation, coupled with the heat generated by the work of various components inside the cabinet, it is easy to cause the temperature inside the cabinet to be too high, which affects the reliability of the system. Therefore, thermal design is an important part of outdoor communication cabinet
Features
● Material: galvanized steel or according to customer requirements.
● Cooling system: air conditioning
● Protection grade: IP55, waterproof and dustproof. .
● Adopt imported sealing tape, waterproof design and air filter device to realize efficient protection.
● Cabinet is specially designed to prevent man-made damage and earthquake damage.
Application environment
Cabinet is widely used in mobile communication stations of communication operators, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets, etc.
Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET11112656513824 |
| Protection Level | IP55 | |
| External Dimension | H1380mm×W650mm×D650mm | |
| Internal Dimension | 19 inch rail,24U | |
| Material |
Galvanized steel, 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm |
|
| Insulation | 20mm PEF | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door, front maintenance | |
| Cooling | Air conditioner 220VAC 600W 50HZ | |
| Fan12038 48VDC temperature controller | ||
| Others | 48VDC LED lamp for illumination | |
| Sensor | Door sensor, water sensor, temperature and humidity sensor, smoke sensor | |
| Monitoring unit | 19-inch, 1U, 48VDC, including SNMP communication port, 9 passive switch inputs, 6 active switch inputs and 6 relay outputs. | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
Cabinet Diagram
Cabinet Details
Air conditioning size
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
