Product Details:
Payment & Shipping Terms:
|
| External Dimension: | H1970mm×W680mm×D1290mm | Material: | Galvanized Steel, 1.2mm Thickness, Single Wall. Thickness Of Bearing Parts: 2.0mm |
|---|---|---|---|
| Installation Method: | Floor Mounted, Roof Mounted ,wall Mounted . | Coating: | Polyester Powder Coating |
| Lock: | Anti-theft Three Point Lock For Outdoor Cabinet(support Padlock) | Hinge: | Inner Hinge |
| Protection: | IP65 | Cable Routing: | Cable In And Out From The Bottom Of Cabinet |
| Internal Dimension: | 19 Inch Rack ,35U | Working Altitude: | 0~4000 Meters |
| Working Temperature: | -40℃ ~+55℃ (+Solar Radiation) | Storage Temperature: | -40℃~+70℃ |
| Working Humidity: | 5%~95%（No Condensation） | Sensors: | Door Sensor , Water Sensor, Temperature And Humidity Sensor, Smoke Sensor |
| Maintenance: | One Front Door And One Rear Door | Cooling: | Air Conditioner, 48VDC LED Lamp Lumination |
| Color: | RAL7035 | Auxiliary Fan: | DC 48V ， Adjustable Temperature (with Fan Temperature Control) |
| Lock: | Anti-theft Four-point Locking System | Internal Internal DimensionDimension: | 19 Inch Rail, 35U |
| High Light: | Embedded Telecom Equipment Cabinet,single wall telecom equipment cabinet,Outdoor Telecom Cabinet single wall |
||
,integrated telecom equipment cabinet ,RRU cabinet ,DC48V compressor air conditioner ,power supply cabinet

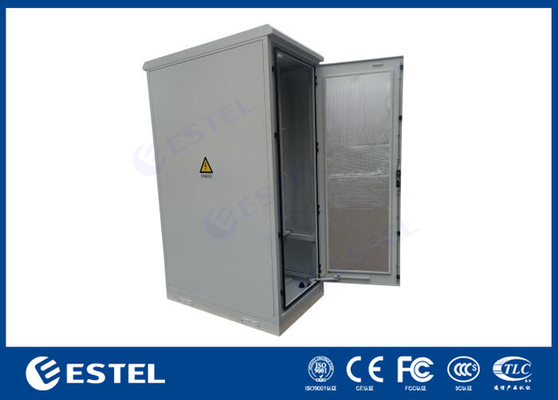

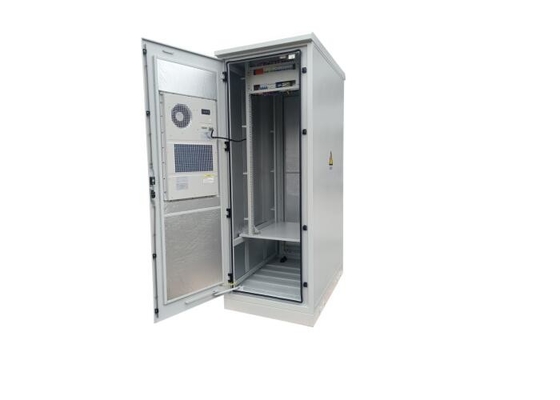

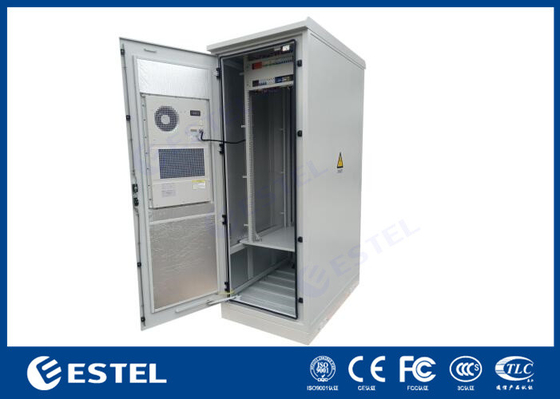

IP55 Waterproof Outdoor Telecom Cabinet One Front Door
Description of IP55 Waterproof Outdoor Telecom Cabinet
The outdoor telecom cabinet ET231726812919035 has been designed to house sensitive electronic equipment for use in communications (such as satellite modem, modem redundancy controller, Ethernet switch, Ethernet router, etc.), transportation and rail infrastructure projects including SISS, CIS, CCTV, communications, power, networking etc.
Technical Parameters of IP55 Waterproof Outdoor Telecom Cabinet
| Configuration | Configuration | Technical Parameter |
| Cabinet | Model | ET231726812919035 |
| Protection Level | IP55 | |
| External Dimension |
H1970mm×W680mm×D1290mm |
|
| Internal Dimension | 19 inch rack ,35U | |
| Material | Galvanized steel, single wall | |
| Insulation | PEF | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-theft three point lock for outdoor cabinet(support padlock) | |
| Hinge | inner hinge | |
| Installation Options |
Floor mounted, roof mounted ,wall mounted . |
|
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door,front maintenance. | |
| Environment | Working Temperature | -40℃~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000米 |
FAQ
Q1.Do you have any MOQ limit for telecom cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q2.What is your payment terms?
A: Normally our payment term is 50% advanced by T/T, Balance before shipment.
Q3.Are your products can be customized?
A: Yes,We can customize products according to customer needs.
Q4.Do you offer guarantee for the products?
A: Yes,we offer 1 year warranty for our products. If any problem happen in warranty period, we will reply your technical questions in 24 hours, and remote video support is available.
Q5: Where the application?
A: Our products have been widely used in many industries, like data processing, indoor/outdoor telecommunications, base station, steel, metallurgy, petrification, cars and war industry etc.
