Embedded DC Telecom Power Supply Compact Design Sub Rack Power Supply
  • Embedded DC Telecom Power Supply Compact Design Sub Rack Power Supply
  • Embedded DC Telecom Power Supply Compact Design Sub Rack Power Supply
  • Embedded DC Telecom Power Supply Compact Design Sub Rack Power Supply
  • Embedded DC Telecom Power Supply Compact Design Sub Rack Power Supply
  • Embedded DC Telecom Power Supply Compact Design Sub Rack Power Supply

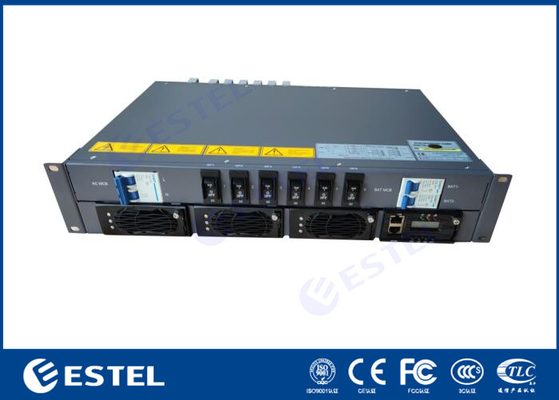

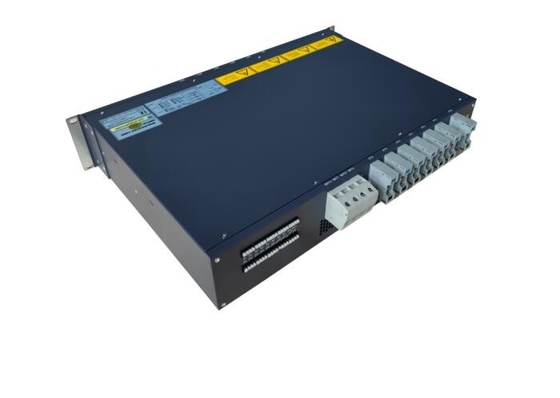

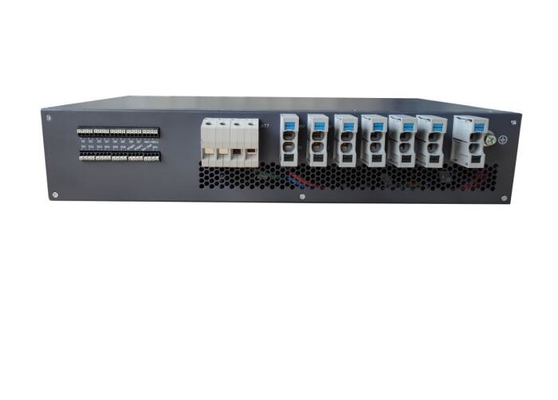

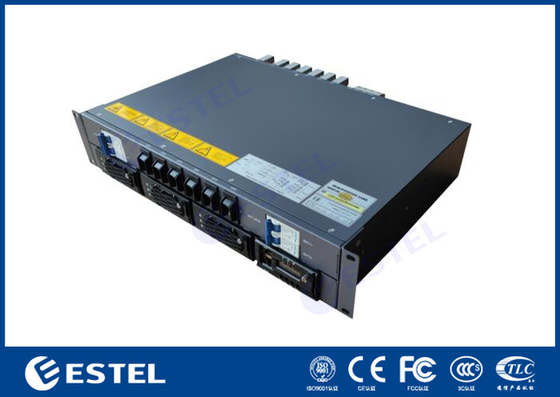

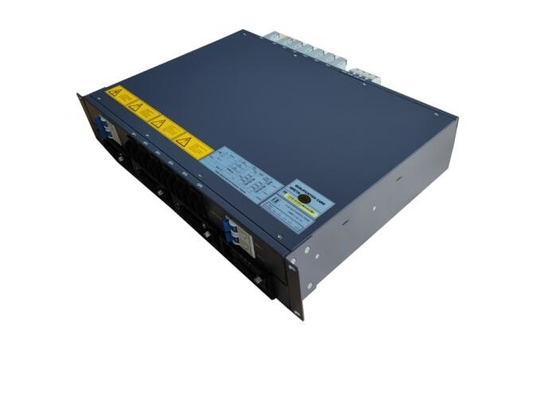

Embedded DC Telecom Power Supply Compact Design Sub Rack Power Supply

Place of Origin China
Brand Name ESTEL
Certification ISO9001
Model Number M45D65B
Product Details
External Dimension:
482.0(W)*350.0(D)*2U(H)
Weight:
≤15kg (without Rectifiers)
Cooling Mode:
Natural Cooling
Installation Mode:
Installed On 19-inch Rack Or Inside The Cabinet
Cabling Mode:
Top Inlet And Top Outlet
Maintenance Mode:
Front Maintenance, Support Module Grade Change
Protection Level:
IP20
AC Distribution:
220VAC Single Phase
Input Capacity:
1×50A/2P;MCB:C63A/2P
Input Frequency:
45~65Hz, Rated Value: 50Hz/60Hz
AC SPD:
20kA/40kA, 8/20μs
High Light:

Embedded DC Telecom power supply

,

IP20 Telecom power supply

,

220VAC sub rack power supply

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiation
Packaging Details
Wooden Case
Delivery Time
15-20 days
Payment Terms
L/C, T/T, Western Union
Supply Ability
10000 PCS per month
Product Description

Telecom power supply,Embedded DC power system,sub-rack power supply,professional power supply with compact design



Introduction
Reference drawing
M45D65B sub-rack power supply, 2U height compact design to meet critical
application needs of fiber and microwave transmission, access device,
switch. Maximum working current 90A of the system, with AC/battery/load
MCBs. The cables are front accessing with MCB and busbar.



Key Features
l Standard 19-inch width which has the advantage of wide use
l 2U height compact design, space and installation cost can be saved
l Front operation and cable accessing, good-looking and safe maintenance
l Perfect battery management, prolongs the life of the battery well provide
various communication ports, RS485, internet port, dry contacts, etc.
which enables flexible networking and remote monitoring
l Rectifier and controller are hot pluggable, easy and quick on-line
maintenance
l Wide input voltage range(85-300Vac) the power grid is adaptable



Application Scenarios
l Wireless base station
l Transmission network
l Communication network of enterprises



Specifications:

Embedded DC Telecom Power Supply Compact Design Sub Rack Power Supply 0

Embedded DC Telecom Power Supply Compact Design Sub Rack Power Supply 1



picture:

Embedded DC Telecom Power Supply Compact Design Sub Rack Power Supply 2



Rectifier module:

Embedded DC Telecom Power Supply Compact Design Sub Rack Power Supply 3



Controller :

Embedded DC Telecom Power Supply Compact Design Sub Rack Power Supply 4







FAQ



Q1.Do you have any MOQ limit for telecom cabinet ?
A: Low MOQ, 1pc for sample checking is available.



Q2.What is your payment terms?
A: Normally our payment term is 50% advanced by T/T, Balance before shipment.

Q3.Are your products can be customized?
A: Yes,We can customize products according to customer needs.

Q4.Do you offer guarantee for the products?
A: Yes,we offer 1 year warranty for our products. If any problem happen in warranty period, we will reply your technical questions in 24 hours, and remote video support is available.

Q5: Where the application?
A: Our products have been widely used in many industries, like data processing, indoor/outdoor telecommunications, base station, steel, metallurgy, petrification, cars and war industry etc.
