Integrated Telecom Base Station Cabinet Pole Mounted Outdoor Telecommunication Equipments

Integrated Telecom Base Station Cabinet Pole Mounted Outdoor Telecommunication Equipments
Integrated Telecom Base Station Cabinet Pole Mounted Outdoor Telecommunication Equipments

Large Image :  Integrated Telecom Base Station Cabinet Pole Mounted Outdoor Telecommunication Equipments

Product Details:
Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001
Model Number: ET132122808015019
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 PCS per month
Detailed Product Description
External Dimension: H1500mm×W800mm×D800mm (W×D×H) Material: Galvanized Steel, Single Wall With Thermal Insulation
Installation Method: Floor Mounted Insulation: PEF
Coating: Polyester Powder Coating Lock: Anti-theft Three-point Locking System
Hinge: Inner Hinge Protection: IP65
Cable Routing: Cable In And Out From The Bottom Of Cabinet Air Conditioner: 1500W 220VAC 60HZ
Internal Dimension: 19 Inch Rail 19U With One Layer Battery Rack Cable Access: KEL 16/9-E:Φ27.5*1,Φ12.2*2,Φ7.3*1,Φ14*3,Φ4.1*1 KEL E2:Φ12.4*1,Φ12.2*1
Illumination: 48VDC LED Lamp For Illumination Working Altitude: 0~4000 Meters
Working Temperature: -40℃~+55℃ (+Solar Radiatio) Storage Temperature: -40℃~+70℃
Working Humidity: 5%~95%(No Condensation)
High Light:

Integrated Telecom Base Station Cabinet

,

Pole Mounted Base Station Cabinet

,

Pole Mounted Outdoor Telecommunication Equipments



IP55 Waterproof Outdoor Telecom Cabinet 19U 19 Inch One Front Door 1500W Air Conditioner



Anti-Theft Three Point Lock 19U 19 Inch IP55 Waterproof Outdoor Telecom Cabinet



Description of IP55 Waterproof Outdoor Telecom Cabinet



The outdoor telecom cabinet ET132122808015019 has been designed to house sensitive electronic equipment for use in communications (such as satellite modem, modem redundancy controller, Ethernet switch, Ethernet router, etc.), transportation and rail infrastructure projects including SISS, CIS, CCTV, communications, power, networking etc.



ET132122808015019's upper part includes 19″ installation rail with 19U space, lower part includes 200mm high base for cable management. The base height can be customized.



Selling Points and Feature Of IP55 Waterproof Outdoor Telecom Cabinet



● The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment

● 19 rack units (RU), standard 19” rail

● IP grade: IP55

● Cabinet cooling: 1500W air conditioner

● Heavy duty outdoor construction

● Front access (rear access optional)

● High integration, compact structure, easy installation and migration on later stage

● Anti-theft three-point locking system, support padlock





Technical Parameters of IP55 Waterproof Outdoor Telecom Cabinet





Configuration Item Technical Parameter
Cabinet Model ET132122808015019
External Dimension H1500mm×W800mm×D800mm
Internal Dimension 19 inch rail 19U with One layer battery rack
Material

Galvanized steel, 1.2mm thickness, single wall.

Thickness of bearing parts: 2.0mm

Insulation PEF
Coating Polyester powder coating
Color RAL7035
Lock Anti-theft three-point locking system
Hinge Inner hinge
Installation Options Floor mounted
Cable Routing Cable in and out from the bottom of cabinet
Protection Level IP55
Maintenance One front door
Cooling Air conditioner 1500W 220VAC 60HZ
Power system 48V 90A

30 module ,1 monitoring module

input :63A/2P*1

Output :50A/2P*6

Sensors Door sensor , water sensor, temperature and humidity sensor, smoke sensor
Environment Monitoring Unit

19 inch installation, 1U high, 48VDC input voltage, communication port: SNMP

9-way passive switching value input, 6-way active switching value input, 6-way relay output.

Others 48VDC LED lamp for illumination
Environment Working Temperature -40℃~+55℃ (+Solar Radiatio)
Storage Temperature -40℃~+70℃
Working Humidity 5%~95%(No condensation)
Working Altitude 0~4000 meters

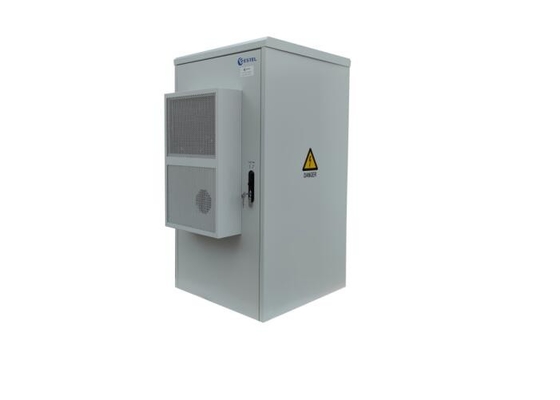

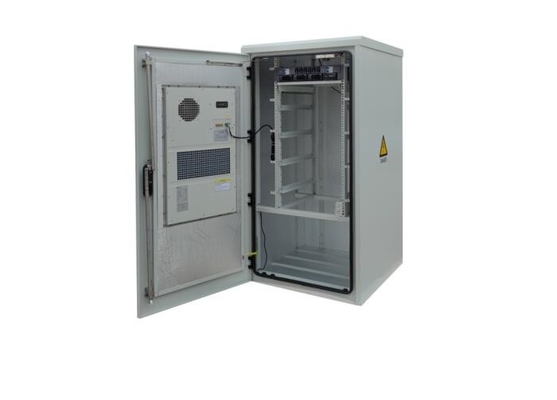

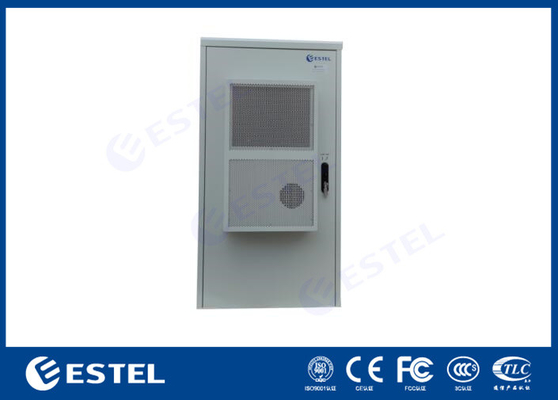

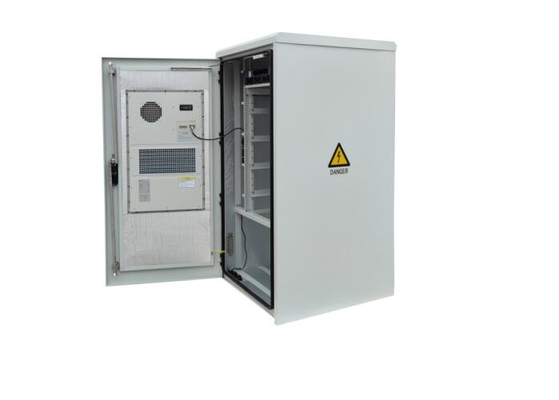

Product picture:





Integrated Telecom Base Station Cabinet Pole Mounted Outdoor Telecommunication Equipments 0 Integrated Telecom Base Station Cabinet Pole Mounted Outdoor Telecommunication Equipments 1

Integrated Telecom Base Station Cabinet Pole Mounted Outdoor Telecommunication Equipments 2



Integrated Telecom Base Station Cabinet Pole Mounted Outdoor Telecommunication Equipments 3



Diagram :

Integrated Telecom Base Station Cabinet Pole Mounted Outdoor Telecommunication Equipments 4



FAQ



Q1.Do you have any MOQ limit for telecom cabinet ?
A: Low MOQ, 1pc for sample checking is available.



Q2.What is your payment terms?
A: Normally our payment term is 50% advanced by T/T, Balance before shipment.

Q3.Are your products can be customized?
A: Yes,We can customize products according to customer needs.

Q4.Do you offer guarantee for the products?
A: Yes,we offer 1 year warranty for our products. If any problem happen in warranty period, we will reply your technical questions in 24 hours, and remote video support is available.

Q5: Where the application?
A: Our products have been widely used in many industries, like data processing, indoor/outdoor telecommunications, base station, steel, metallurgy, petrification, cars and war industry etc.
