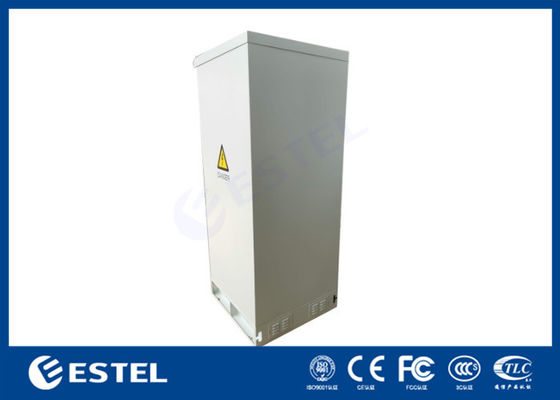

42U Fan Ventilation Outdoor Telecom Cabinet Waterproof Dusproof Communication Base Station
Product Details
Fan Ventilation Outdoor Telecom Cabinet
,Dusproof Outdoor Telecom Cabinet
,42U outdoor telecommunication cabinets
Waterproof Dusproof 42U Fan Ventilation Outdoor Telecom Cabinet W×D 600mm×600mm Communication Base Station Use
1. Application Area
Provides a secure, climate controlled environment for any electronic equipment.
Telecommunications
Wireless/Broadband
Fiber Optics
Backhaul
Base Station
Small Cell/DAS
Utility
Military
Wi-Fi
Flexible and Scalable
Trailer-based Communications
2. Description
The outdoor telecom cabinet can be directly under the outdoor climate, made of metal material. The cabinet can install transmission equipment, network equipment, emergency equipment and other related equipment, and can provide reliable mechanical and environmental protection for normal operation of the internal equipments.
3. Features
- Short construction period, less land occupation, broader application and lower construction cost
- High integration, compact structure, easy installation and migration on later stage
- Cooling solution: fan
- High IP grade: IP65, waterproof, dustproof
- Professional outdoor anti-corrosion powder coating, strong weather resistance
- Use stainless steel screws, enhance the anti-corrosion performance of the cabinet
- Anti theft designs:
- Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device
- Inside installation, inside fixing, no outer screws
- Inside door hinge, multiple protection
- Embedded cabinet door
4. Technical Data Sheet
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET6060215-EQ |
| Size | External Size: 600mm×600mm×2150mm(W×D×H) | |
| Component | The whole cabinet is composed of three parts: the top cover, the cabinet body and the base. The installation method is floor mount. | |
| Material | Galvanized steel, single wall | |
| Structure |

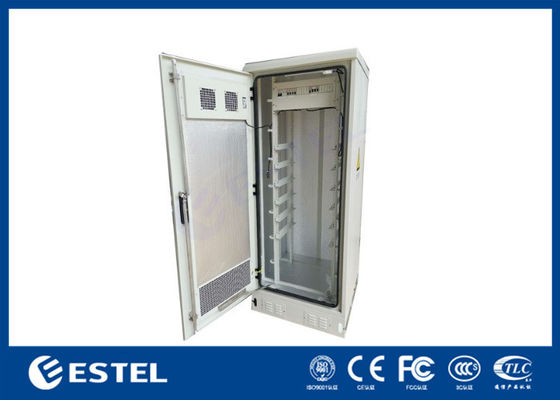

(1) One front door with hidden door hinge, anti theft and anti destruction
(2) Outdoor anti-theft three point lock(support padlock), an exterior safety locking cylinder with dust cover Include the door stopper, can make door open angle reach 120 °
(3) The grooved door is equipped with a seal rubber strip, clinging to the inner side of the door, waterproof and dustproof
(4) The cabinet include 42U 19” rack, used for installing telecom equipment
(5) Including cable entry on the bottom of the cabinet
(6) Including grounding copper bar |
|
| Surface Treatment | Outdoor anti-corrosion powder coating | |
| Color | Grey RAL7035 | |
| Ingress Protection | IP65 | |
| Working Temperature | -40℃～+55℃ | |
| Cooling Method | Fan |
Three DC48V fans with one temperature controller Including waterproof outer cover Installed on the door |
| Power Sytstem | Rectifier System |
19" rack mount, 5U
50A recifier module *1
Monitoring module *1, RS485, SNMP communication
Power distibution unit: AC input 2P 63A*1, SPD 60KA ; AC output: 1P32A*2, 1P16A*2; DC output:1P63A*1, 1P32A*3, 1P16A*2 |
|
Illumination |
LED Lamp | DC48V |
| LED Lamp Switch | Ued for controlling LED lamp on/off |
5. Size Drawing
External size: W×D×H 600×600×2150mm
6. Similar Cabinet Picture
7. Our factory
-
