| External Size: | H1850mm×W750mm×D850mm | User Space: | Standard 34U 19" Rack |
|---|---|---|---|
| Material: | Galvanized Steel, Single Wall With Thermal Insulation | Surface: | Outdoor Powder Coating RAL7035 |
| Cooling Unit: | 220VAC 50HZ 2000W Air Conditioner | IP Level: | IP55 |
| Cable Entry: | Cable In And Out From The Bottom Of Cabinet | Lifting: | 4 Ears On The Cabinet Base |
| Lock: | Anti-theft Three-point Locking System | Hinge: | Concealed Built-in Hinge |
| High Light: | Insulated outdoor telecom enclosure,Thermostatic outdoor telecom enclosure,Base Station 19 inch rack enclosures |
||
34U Thermostatic 19" Rail Outdoor Telecom Cabinet Air Conditioner Cooling Insulated Base Station Enclosure
Brief
ET11721758518534 is an outdoor cabinet which can protect customer’s equipments from damage and extreme weather conditions. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipments. Both active telecom equipments and passive telecom equipments can be accomodated inside the cabinet.
Features
● High protection grade: IP55
● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
● Air conditioner is installed on cabinet door, convenient for maintenance, cleaning and replacement
Application
The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
Technical Parameters
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET11721758518534 |
| Protection Level | IP55 | |
| External Dimension | H1850mm×W750mm×D850mm | |
| Internal Space | 19 inch rail, 34U | |
| Material |
Galvanized steel Cabinet body thickness: 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm |
|
| Insulation | PEF | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Concealed built-in hinge | |
| Installation Method | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Maintenance | One front door, front maintenance | |
| Cooling | Air Conditioner | 220VAC 50HZ 2000W |
| Auxiliary ventilation | Two 220VAC fans | |
| Others | 220VAC LED lamp for illumination | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
Cabinet Drawing

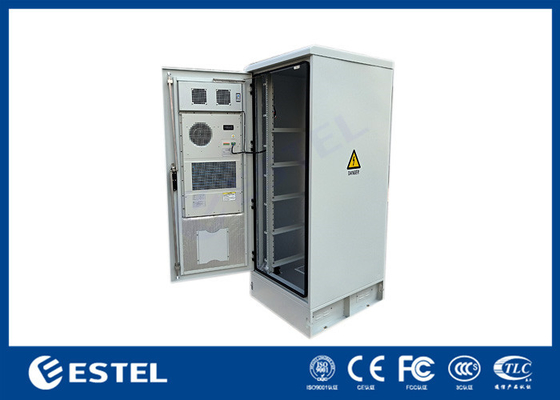

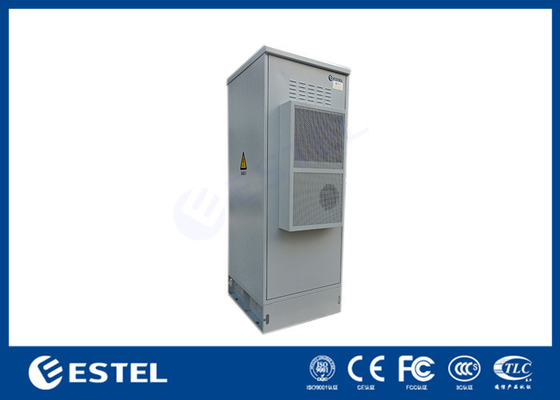

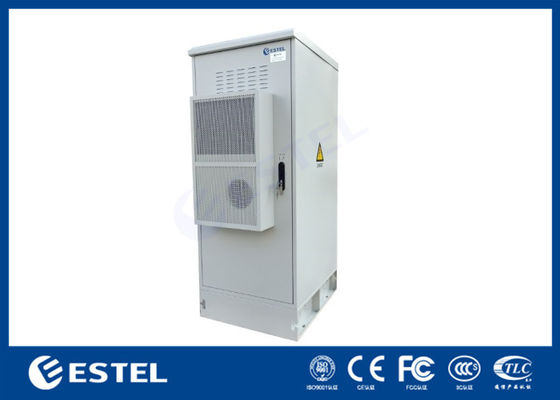

Outdoor Cabinet Photo

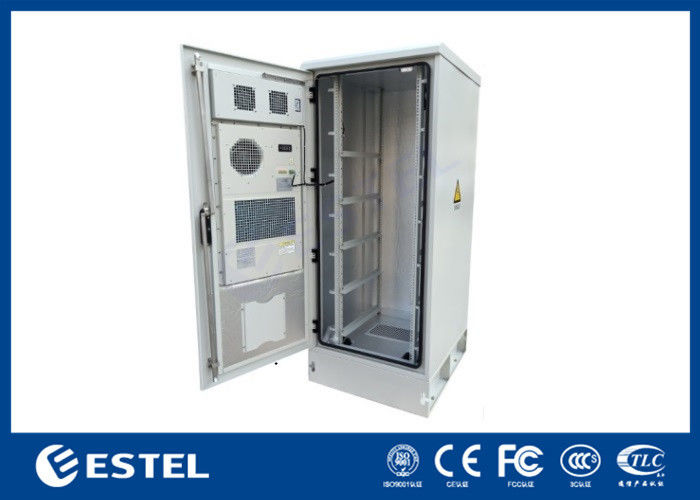

Cabinet Details
Wooden Case Package
