Kiosk Air Conditioner
>
|
| Place of Origin | Shenzhen, China (Mainland) |
| Brand Name | ESTEL |
| Certification | ISO9001, CE, 3C, FCC, TLC, IP55 |
| Model Number | EGA0400A1 |
220VAC 50Hz 400W Kiosk Air Conditioner LCD Advertising Machine Cooling With 300W Heating Optional
1. Air conditioner introduction
The air conditioner is one kind of refrigeration product self-developed for cabinet. It is applicable in the place where the cabinet internal heat is very large, the internal electronic equipment is sensitive to the environment temperature and which should be isolated internally and externally completely. This product has multiple functions, high reliability, and has the feature that it can start to work without complex debugging after powering. It is mainly used for Advertising machine, Kiosk, LCD AD PLAYER cooling.
2. Air circulation
The fan in the internal cycle air path absorbs the hot air from the upside to make air heat exchange by evaporator fins, and sends the cooled air from the downside of the air conditioner. 0By so, the air in cabinet can cycle to achieve the purpose of lowering the temperature. Meanwhile, The fan in the external cycle air path absorbs the external cold air from the downside, and discharges the hot air from the upside after heat exchange.
3. Product technology parameters
| Item | Name | Unit | Parameter |
|
Dimension and installation
|
Body outline dimension (width*height*depth ) |
mm | 450*470*158 |
|
Outline dimension including flange(width*height*depth ) |
mm |
/
|
|
| Weight | Kg | 11 | |
| Installation method | Door Mounted | ||
| Installation method | Outdoor | ||
|
Environment and protection
|
Working environment temperature | ℃ | -40 to +55 |
| Noise | dB(A) | 60 | |
| Life expectancy | Years | >10 | |
| IP grade | IP55 | ||
| Refrigerant | R134a | ||
| ROHS certification | yes | ||
|
Performance
|
Input voltage range | 220 VAC±15% ～/50Hz | |
| Refrigerating capacity(L35/L35) | W | 400 | |
|
Rated Refrigerating input power(L35/L35) |
W | 250 | |
| Rated Refrigerating current (L35/L35) | A | 1.1 | |
| Maximum Refrigerating current | A | 1.6 | |
| Heat capacity(optional) | W | 300 | |
| Air Volume of Inner Circulation | m3 /h | 240 | |
4. Size drawing

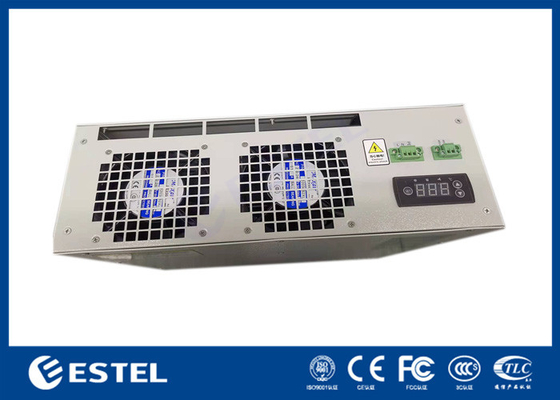

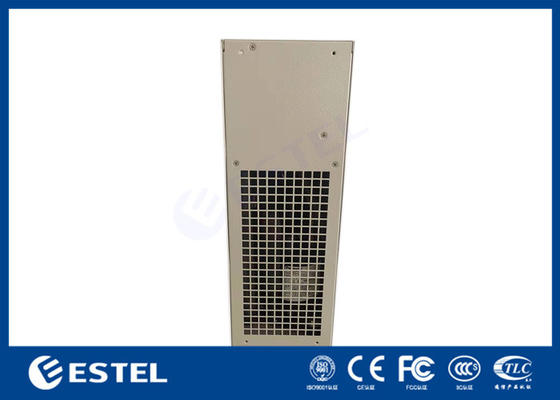

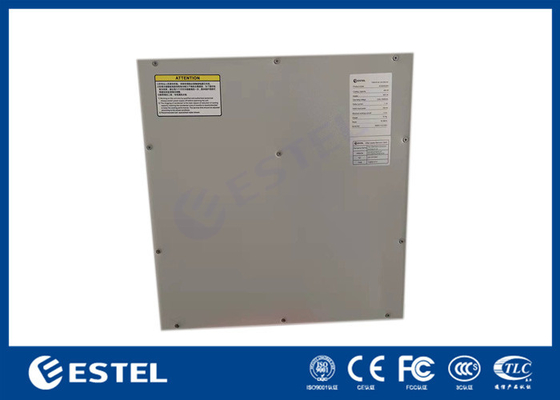

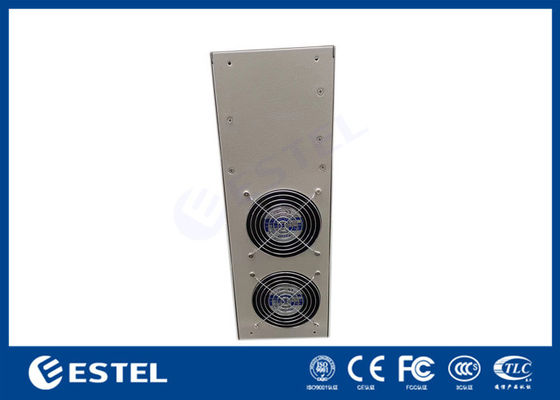

5. Air conditioner picture
6. Wooden case package
