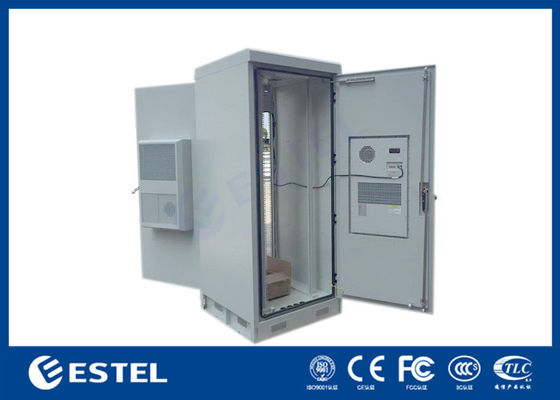

Thermostatic 40U 19 Inch Rack Enclosures Powder Coating Outdoor Telecom Cabinet
  • Thermostatic 40U 19 Inch Rack Enclosures Powder Coating Outdoor Telecom Cabinet
  • Thermostatic 40U 19 Inch Rack Enclosures Powder Coating Outdoor Telecom Cabinet
  • Thermostatic 40U 19 Inch Rack Enclosures Powder Coating Outdoor Telecom Cabinet
  • Thermostatic 40U 19 Inch Rack Enclosures Powder Coating Outdoor Telecom Cabinet

Thermostatic 40U 19 Inch Rack Enclosures Powder Coating Outdoor Telecom Cabinet

Place of Origin China
Brand Name ESTEL
Certification ISO9001
Model Number ET9090210-EQ-2D-2AC
Product Details
External Dimension:
W×D×H 900×900×2100mm
Internal Space:
40U 19” Rack
Material:
Galvanized Steel, Double Wall With Heat Insulation
Coating:
Polyester Powder Coating
IP Level:
IP55
Operating Temperature:
- 40℃~+55℃
Cooling Method:
AC220V 50Hz 1500W Air Conditioner And Fan
Lifting Hook:
4 Pcs Hooks On The Base
Lock:
Anti-theft Three-point Locking System
Door:
One Front Door And One Back Door
High Light:

Thermostatic 19 inch rack enclosures

,

Powder Coating 19 inch rack enclosures

,

Outdoor Telecom Cabinet 40U

Payment & Shipping Terms
Minimum Order Quantity
1PC
Packaging Details
Wooden Case with Pallet
Delivery Time
15 to 20 days
Payment Terms
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
1800PCS per month
Product Description



Thermostatic 40U 19" Rack Powder Coating Outdoor Telecom Cabinet With Active Cooling Front Back Door

Outdoor Telecom Cabinet Overview



ET9090210-EQ-2D-2AC is an outdoor cabinet which can protect customer’s equipments from damage and extreme weather conditions. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipments. Both active telecom equipments and passive telecom equipments can be accomodated inside the cabinet.





Outdoor Telecom Cabinet Features



● High protection grade: IP55

● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock

● The door mounted air conditioning system is convenient for maintenance, cleaning and replacement

● Access control, smoke, water immersion, temperature and other comprehensive protection

● Support remote management function, improve security and minimize customer operation cost



Thermostatic 40U 19 Inch Rack Enclosures Powder Coating Outdoor Telecom Cabinet 0

Outdoor Telecom Cabinet Applications



The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.





Outdoor Telecom Cabinet Technical Parameters



 Configuration Item Technical Parameter
Cabinet Model ET9090210-EQ-2D-2AC
Protection Level IP55
External Dimension H2100mm×W900mm×D900mm
Internal Space 19 inch rail, 40U
Material

Galvanized steel, double wall. 1.2mm outer wall, 1.0mm inner wall,

thickness of bearing parts: 2.0mm

Insulation PEF
Coating Polyester powder coating
Color RAL7035
Lock Anti-theft three-point locking system
Hinge Inner hinge
Installation Mode Floor mounted
Cable Routing Cable in and out from the bottom of cabinet
Maintenance One front door and one rear door, front and rear maintenance
Cooling Air Conditioner

AC220V 50Hz 1500W, 2 pcs

One installed on front door, the other on back door.

Fan DC48V, 2pcs on the cabinet top
Power Distribution Unit(optional)

SPD 60KVA AC

Input: 63A/2P×1;

AC Output: 16A/1P×4;

DC Output: 16A/1P×4

Input Voltage: AC220V, 50Hz

Sensors (optional) Door sensor , water sensor, temperature and humidity sensor, smoke sensor
Environment Monitoring Unit(optional)

19 inch installation, 1U high, 48VDC input voltage, communication port: SNMP

9-way passive switching value input, 6-way active switching value input, 6-way relay output.

Illumination 48VDC LED lamp with lamp switch
Environment Working Temperature -40℃ ~+55℃ (+Solar Radiation)
Storage Temperature -40℃~+70℃
Working Humidity 5%~95%(No condensation)
Working Altitude 0~4000 meters





Outdoor Telecom Cabinet Diagram



Thermostatic 40U 19 Inch Rack Enclosures Powder Coating Outdoor Telecom Cabinet 1



Cabinet Pciture



Thermostatic 40U 19 Inch Rack Enclosures Powder Coating Outdoor Telecom Cabinet 2

Thermostatic 40U 19 Inch Rack Enclosures Powder Coating Outdoor Telecom Cabinet 3





Our Factory and Product



Thermostatic 40U 19 Inch Rack Enclosures Powder Coating Outdoor Telecom Cabinet 4
