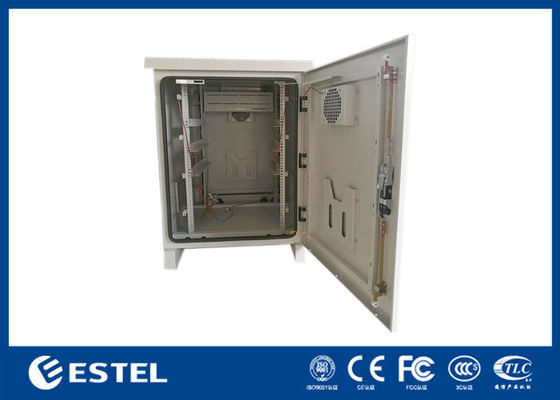

Single Wall 16U 19 Inch Rack Cabinet Galvanized Steel Front Back Access

Single Wall 16U 19 Inch Rack Cabinet Galvanized Steel Front Back Access
Single Wall 16U 19 Inch Rack Cabinet Galvanized Steel Front Back Access Single Wall 16U 19 Inch Rack Cabinet Galvanized Steel Front Back Access Single Wall 16U 19 Inch Rack Cabinet Galvanized Steel Front Back Access Single Wall 16U 19 Inch Rack Cabinet Galvanized Steel Front Back Access

Large Image :  Single Wall 16U 19 Inch Rack Cabinet Galvanized Steel Front Back Access

Product Details:
Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001
Model Number: ET7080100-EQ-2D
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Wooden Case with Pallet
Delivery Time: 15 to 20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1800PCS per month
Detailed Product Description
Dimension: W×D×H 700×800×1000mm Equipment Space: 16U
Material: Galvanized Steel, Single Wall Working Temperature: -40°C ~ +75°C
Relative Humidity: 5% ~ 100% Door Quantity: Totally 2, One Front Door And One Rear Door
Cable Entry: On The Bottom Cooling Method: AC220V Fans
High Light:

16U 19 Inch Rack Cabinet

,

Single Wall 19 Inch Rack Cabinet

,

16U 19 inch wall mount rack

Single Wall 16U 19 Inch Rack Cabinet Galvanized Steel Front Back Access



Front Back Access Single Wall 16U Galvanized Steel 19 Inch Rack Cabinet Outdoor Telecom Enclosure



1. Applications of 19 inch rack cabinet



Outdoor telecommunication Equipment cabinet is mainly used in Data communications, IT & Network system, Data management, Defence / Government, Power supply and management,Telecommunications, Fiber & cable management, Power, Oil & Gas and Energy such as solar energy, wind energy, energy saving etc. Suitable for different conditions: gale, rain, snow, hail, frost, smog and solar radiate etc.


2. 19 inch rack cabinet introduction



The outdoor communication cabinet can hold 16U 19” equipment. The cabinet is made of single layer of galvanized steel, with fan cooling installed on the front door and rear door. Suitable for outdoor environment, waterproof, dustproof, sunproof and fireproof.



3. Technical data of 19 inch rack cabinet





No. Description Specification
  Specification of cabinet
1 Model ET7080100-EQ-2D
2 External Size W700×D800×H1000mm
3 Color Outdoor anticorrosion powder coating RAL7035
4 19 inch rack 16U
5 Door One front door and one back door, door open angle can be reach 110°,
6 Lock Outdoor special anti-theft three point locking(bottom, top and middle)
7 File holder On the front door and back door
8 Material Single wall, galvanized steel
9 Cabinet Installation Floor mount
10 Cable Entry Located on the bottom
11 Earthing Grounding copper bar
12 Working Temperature -40°C~+75°C
13 Protection Level IP55
14 Relative Humidity 5% ~ 100%
15 Atmospheric Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
16 Solar Radiation Intensity 1120 ×(1±5%)W/m2
  Other accessories
1 Fan system Two AC220V fans
2 LED light AC220V
3 LED light switch Control light on or off
4 Anchor screw




4. Feature of 19 inch rack cabinet



(1) Embedded door structure design, effectively ensure the door is prized.
(2) Theft-proof design with 3 point lock .
(3) No outer screws, avoid illegal cabinet prying
(4) Maintin method: front door and rear door, easy maintenance and installation.
(5) Cooling by fan
(6) The perfect earthing system protect it from thunder.
(7) Compact, easily move and carry.
(8) Cabinet meet IP55 level of protection.
(9) Waterproof, fireproof, shockproof, anti-corrosion, anti sand and anti ultraviolet, ensure cabinet can work longer in a harsh outdoor environment.
(10) Using anti-corrosion powder coating .



5. Cabinet Display



Single Wall 16U 19 Inch Rack Cabinet Galvanized Steel Front Back Access 0



6. Packing and Shipping


Generally our products are pakced with plywood case to protection the cabinet very well, inner will use the foam for anti-scratch. Our products can be shipped all over the world



Single Wall 16U 19 Inch Rack Cabinet Galvanized Steel Front Back Access 1



7. Why Choose Us?



 15 years manufacturer selling
 Wholesale/ Customize sample/OEM ODM are available
 Competitive price
 High product quality ,Strict quality control
 Intime Delivery: 30-35 working days after receipt of the deposit
 Best service !



8. Our factory and product



Single Wall 16U 19 Inch Rack Cabinet Galvanized Steel Front Back Access 2
