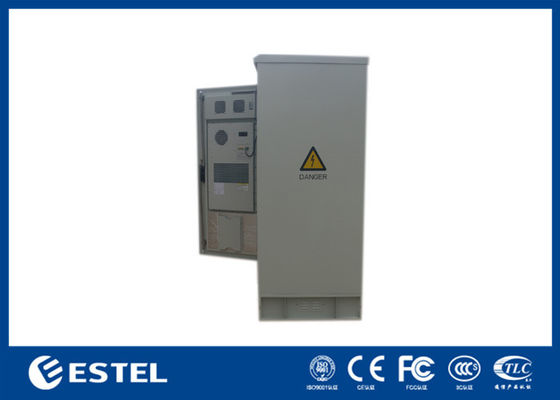

32U 19 Inch Outdoor Telecom Cabinet With Air Conditioning Cooling

32U 19 Inch Outdoor Telecom Cabinet With Air Conditioning Cooling
32U 19 Inch Outdoor Telecom Cabinet With Air Conditioning Cooling 32U 19 Inch Outdoor Telecom Cabinet With Air Conditioning Cooling 32U 19 Inch Outdoor Telecom Cabinet With Air Conditioning Cooling 32U 19 Inch Outdoor Telecom Cabinet With Air Conditioning Cooling

Large Image :  32U 19 Inch Outdoor Telecom Cabinet With Air Conditioning Cooling

Product Details:
Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001 IP65 IP55
Model Number: ET7575175-EQ5
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Wooden Case with Pallet
Delivery Time: 15 to 20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1800PCS per month
Detailed Product Description
Size: 750 (width) *750 (depth) *1750 (height) Material: Galvanized Steel, Single Wall With Heat Insulation
Standard 19” Rack: 32U IP Grade: IP55
Cooling System: Air Conditioner And Fan Surface Treatment: Surface Spraying Special Outdoor Cabinet Powder
Door Lock: Outdoor Anti-theft Three Point Lock Cable Entry: On The Bottom
High Light:

32u rack cabinet

,

IP55 32U Outdoor Telecom Cabinet

,

anti theft Outdoor Telecom Cabinet

32U 19 Inch Outdoor Telecom Cabinet With Air Conditioning Cooling





Insulated 32U Standard 19 Inch Outdoor Telecom Cabinet With Air Conditioning Cooling Street Cabinets Telecoms





1. Application scenarios and industries of outdoor telecom cabinet


Our outdoor telecom cabinets are widely used in many areas, such as below:
Telecommunication
Power
lndustry
Radio and television
Bank
Education
Security monitoring
Automatic system
Research institute



32U 19 Inch Outdoor Telecom Cabinet With Air Conditioning Cooling 0



2. Outdoor Cabinet Technical Parameter





No. Description Specification
Specification of enclosure
1 Model ET7575175-EQ5
2 Size 750 (width) *750 (depth) *1750 (height)
3 Material Galvanized steel, single wall with heat insulation
4 Thickness 1.2mm or upon on customer
5 Insulation Material 20mm PEF or upon on customer
6 Standard 19” rack 32U
7 Door One front door
8 Lock Outdoor special anti-theft three point locking
9 Processing Laser cutting, CNC punching, CNC bending, welding, stamping, etc
10 Surface treatment Surface spraying special outdoor cabinet powder
11 Cabinet Installation method Ground
12 Cable Entry Located on the bottom
13 Lifting 4 hooks on the cabinet base
14 Earthing Grounding copper bar
15 Working Temperature -40°C~+75°C
16 Protection Level IP55
17 Relative Humidity 5% ~ 100%
18 Atmospheric Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
19 Withstand Voltage >3000VDC/min and no breakdown fly arc
20 Solar Radiation Intensity 1120 ×(1±5%)W/m2
Other accessories
1 Cooling

Air conditioner

Cooling capacity: 1500W,

Power supply: AC220V, 50Hz

Two AC220V fans with one temperature controller
2 LED light AC220V 50Hz, with LED lamp switch
Packing
Plywood box W×D×H 900×1050×2000mm




3. Outdoor Cabinet Feature



(1) High quality galvanized steel.
(2) The door adopt embedded structure, this design have high theftproof.
(3) Standard 19” equipment rack, 4 posts, 2 front and 2 rear.
(4) Three-point structure lock, enhance avoid illegal access
(5) Hidden hinge, no outer screws, enhance the theftproof.
(6) Wind lock to hold door open at an angle.
(7) High protection level IP55, waterproof and dustproof, effectively protect the equipment in the cabinet.
(8) Using air conditioner with high cooling effect
(9) High reliability, maintenance-free, fast assembly, suitable for harsh environment
(10) High integration, small footprint, short construction period, reduce the construction cost
(11) Improved thermal design, efficient energy saving, effectively extending the battery life



4. Our strengths



① 100% original manufacturer
② Our steel raw material comes from famous Company, with higher quality assurance
③ Various sizes and accessories can be provided according to different application requirements
④ Professional container loading team, make full use of space and save your transportation cost



5. Cabinet display



32U 19 Inch Outdoor Telecom Cabinet With Air Conditioning Cooling 1

32U 19 Inch Outdoor Telecom Cabinet With Air Conditioning Cooling 2


6. Packing



Our cabinets are packed in wooden box which is a kind of free fumigated plywood.The advantage is rain proof, moisture-proof, mildew proof, rust proof, erosion proof, dust-proof, shock proof, local protection, etc. It can protect the goods reliably. Firm and reliable, compact packaging, reduce the loss of goods in the logistics process, ensure the safety of goods; goods can be effectively protected, which is particularly important for fragile and valuable goods.



32U 19 Inch Outdoor Telecom Cabinet With Air Conditioning Cooling 3





7. Our factory and product



32U 19 Inch Outdoor Telecom Cabinet With Air Conditioning Cooling 4
