Product Details:
Payment & Shipping Terms:
|
| Cabinet External Size: | W×D×H 900×1000×2110mm | Material: | Galvanized Steel, Single Wall |
|---|---|---|---|
| Cooling System: | DELTA Fans | Equipment Installation Method: | 19 Inch Rack, Back Plate With DIN Rail, Battery Tray |
| Cabinet Lock: | Anti-theft Three Point Lock(support Padlock) | Cable Inlets: | On Upper And Lower Of The Side Walls(power Side) And Cabinet Bottom |
| Door: | One Front Door And One Back Door | Protection Level: | IP55 |
| Color: | Outdoor Anticorrosion Powder Coating RAL7035 | Other Attachment: | Smoke Sensor, Door Sensor, Temperature Sensor |
| High Light: | Windproof Outdoor Rack Cabinet,Galvanized Steel Outdoor Rack Cabinet,Galvanized Steel waterproof network cabinet |
||

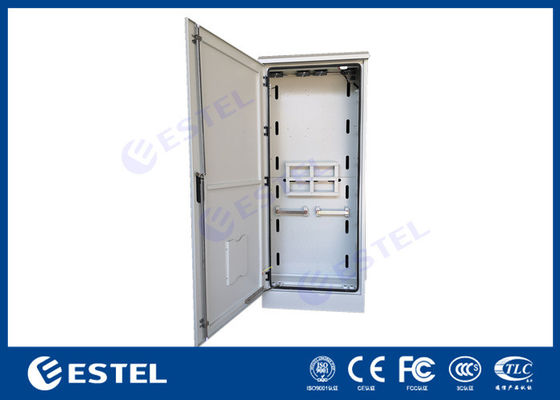

Single Wall SGCC Windproof Outdoor Rack Cabinet Galvanized Steel Front Back Door
1. Application scenarios and industries of outdoor telecom cabinet
Our outdoor telecom enclosure is used in many areas, such as below:
Telecommunication
Power
lndustry
Radio and television
Bank
Education
Security monitoring
Automatic system
Research institute
2. Outdoor Cabinet Configeration List
| NO | DESCRIPTION | SPECS | QUANTITY | UNIT |
| 1 | Outdoor Telecom Cabinet |
(1) External Dimension: W×D×H 900×1000×2110mm (2) Cabinet layout: it has battery side and power side. On battery side there is 19inch rack on the top&bottom and 4 battery shelves in the middle and 3 grounding copper bar(each bar have 15 holes). On power side, there is one back plate with cable through hole. On the back plate there are 3 units 50 cm perforated DIN rail on 76mm red insulator, 1 unit 30 cm positive copper batteries bus bar, 1 unit 30 cm negative copper batteries bus bar and each bus bar have 15 holes. (4) Material: galvanized steel, single wall without heat insulation (5) Oudoor anti-corrosion powder coating (6) Color: RAL 7035 grey (7) IP level: IP55 (8) Air inlet (use steel filter) on the bottom of both sides of the cabinet (9) Air outlet on the top of the cabinet (10) Cable entry is on upper and lower of the side walls(power side) and cabinet bottom. |
1 | SET |
| 2 | Fan System | Eight DC48V 30W fans with one temperature controller (30 ℃ ON, 27 ℃ off). Fan has steel filter Fan Brand: DELTA(Taiwan) | 1 | SET |
| 3 | Temperature Sensor | 1 | PC | |
| 4 | Smoke Sensor | 1 | PC | |
| 5 | Door Sensor | 1 | PC | |
| 6 | Package | Wooden Case | 1 | PC |
3. Cabinet Drawing
4. Feature
(1) High quality hot dip galvanized steel.
(2) Standard 19 inch rack, DIN rail and battery tray.
(3) High protection level IP55, waterproof and dustproof, effectively protect the equipment in the cabinet.
(4) Three-point theftproof lock.
(5) Embedded structure door, hidden hinge, inside screws, enhance the theftproof.
(6) Door limit to hold door open at service.
(7) High reliability, maintenance-free, fast assembly, suitable for harsh environment
(8) High integration, small footprint, short construction period, reduce the construction cost
(9) Intelligent temperature controller,can set fan’s on/off temperature
(10) Support for fast assembly, ready for the summit, multi-scene roof installation
5. Our strengths
①100% original manufacturer
②Our raw steel comes from famous company with higher quality assurance
③Various sizes and parts can be customized according to the needs of customers
④Professional logistic team, make full use of space and save your transportation cost
6. Cabinet display
7. FAQ
Q: Are you a manufacturer?
ESTEL: We are a factory.
Q: Do you offer OEM & ODM services?
ESTEL: Yes, of course.
Q: Can support custom made?
ESTEL: Yes, we have professional technical team to design based customer’s actual demand.
Q: What' s your QC system?
ESTEL: We can provide all kinds of testing certificates, material anddimensional inspection, etc.
Q: Will our design be protected from another usage?
ESTEL: Yes, we can sign NDA with you.
Q. Can I get discounts?
A: Yes, for big order, regular customer, we give best discounts.
Q: What' s your after-sale service?
ESTEL: If there is a quality problem, please provide photos or test reports, we will replace defective goods or return funds.
8. Packing
Our package is plywood that is free from fumigation, not logs / solid wood. Comply with ISPM 15, Article 2.1, published by FAO of the united Nations.
