Product Details:
Payment & Shipping Terms:
|
| Dimension: | W×D×H 700×700×1500mm | Material: | Galvanized Steel, Double Wall With Heat Insulation |
|---|---|---|---|
| 19 Inch Space: | 28U | Door: | One Front Door |
| Surface Treatment: | Outdoor Powder Coating, Anti-corrosion | IP Level: | IP55 |
| Cooing: | AC220V 50Hz 1500W Air Conditioner And Fan | Accessory: | Power Distribution Unit, Door Sensor, Temperature Sensor, LED Lamp |
| Highlight: | 28U Outdoor Telecom Cabinet,28U outdoor telecom cabinet,IP55 outdoor telecom cabinet |
||
Double Wall 28U IP55 Outdoor Equipment Cabinet Waterproof Communication Shelter
Double Wall 28U IP55 Thermostatic Outdoor Telecom Cabinet With Power Distribution Unit Waterproof Communication Shelter
1. Description
One of the biggest challenges of terminating your telecommunications equipment outdoors is finding
Our outdoor telecom cabinet will be able to properly withstand the elements: Temperature, moisture, ice, shock hazards, and UV damage are all potential dangers to your telecommunications equipment. On top of all that, network hardware generates excess heat on its own, so we will provide a temperature solution that manages airflow with cooling technology.
We offer a variety of outdoor enclosures for telecommunications equipment. If one of our standard products doesn’t quite meet your application requirements, we can modify the design to create the ideal outdoor product for your needs. We can also be completely customized according to your needs.
2. Features
· High quality galvanized steel
· IP55 cabinet, waterproof, dustproof, rustproof, sunproof, double layer steel plate with thermal insulation
· Outdoor anti-corrosion polyester powder coating
· Anti-theft three-point outdoor cabinet lock, support padlock, lock diameter is 10mm
· Adopt high cooing effect’s compressor air conditioner
· Hidden hinge, inside screws, embedded door, enhance the theftproof
· All screw&nuts use high anticorrosion stainless steel
3. Application Area
Provides a secure, climate controlled environment for any electronic equipment.
Telecommunications
Wireless/Broadband
Fiber Optics
Backhaul
Base Station
Small Cell/DAS
Utility
Military
Trailer-based Communications
Wi-Fi
Flexible and Scalable
4. Cabinet Configuration Parameter
| NO | DESCRIPTION | SPECS | QUANTITY | UNIT |
| 1 | Outdoor Cabinet |
(1) External Dimension: W×D×H 700×700×1500m (4) Material: galvanized steel, double wall with heat insulation (5) IP grade: IP55 (6) Outdoor anti-corrosion powder coating (7) Including grounding bar (8) Installation method: floor mount |
1 | SET |
| 2 | Air Conditioner |
Cooling Capacity: 1500W; Power Supply: AC220V 50Hz |
1 | SET |
| 3 | Fan | Two AC220V fans with one temperature controller | 1 | SET |
| 4 | Power Distribution |
AC Part: 40KA SPD*1 2P 63A*1 1P 16A*3 2P 20A Leakage protection 16A Maintenance socket 1P 63A*1 1P 32A*3 1P 16A*3 |
1 | SET |
| 5 | Temperature and Humidity Sensor | 1 | PC | |
| 6 | Door Sensor | 1 | PC | |
| 7 | LED Lamp | DC48V | 1 | PC |
| 8 | Door Sensor Switch | Used for controlling LED lamp on/off | 1 | PC |
| 9 | Package | Wooden Case | 1 | SET |
5. Working Environmental Parameter
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
6. Outdoor Cabinet Drawing
7. Cabinet top view

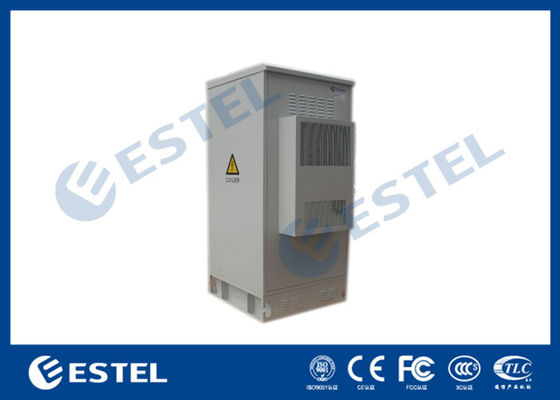

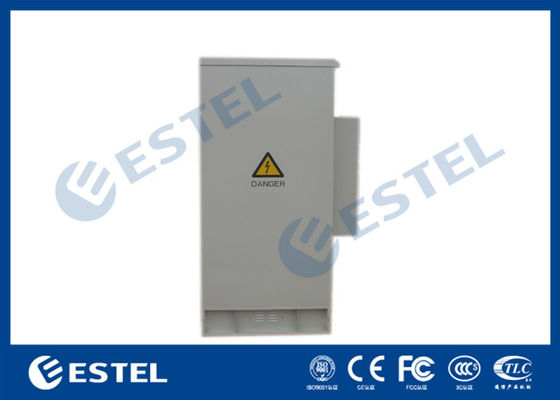

8. Communication Cabinet Picture
9. Cabinet Details
