Temperature Control Outdoor Power Enclosure Weatherproof Data Cabinet
Product Details
Temperature Control Outdoor Power Enclosure
,24U Outdoor Power Enclosure
,24U Weatherproof Data Cabinet
Temperature Control Outdoor Power Enclosure Weatherproof Data Cabinet
Weatherproof Temperature Control Outdoor Power Cabinet Insulated Rectifier Battery Cabinet Power Supply Cabinet
1. Applications
Estel can provide multi cabin outdoor integrated power supply cabinet, battery cabinet and telecommunication equipment cabinet with a variety of options. Our cabinet is widely used in the fields of wireless communication base station, power, radio station, solar cell and TV, including new generation 5G system, communication network / network integrated service, access / transmission switching station, emergency communication / transmission, traffic, monitoring, etc. And support a variety of installation methods, wall mounted, pole mounted, ground mounted. It can adapt to the outdoor simple and harsh working conditions, shelter from rain, snow, sand and dust, guard against theft and rats, etc.
2. Specifications
| Item | Specification |
| Model | ET9090210-UP7 |
| Cabinet | |
| External Dimension | W×D×H 900×900×2100mm |
| User space | 24U 19” rack + 2 layer battery shelf(each shelf 8 battery) |
| Support battery size | L×W×H 550×125×320mm |
| Material | High quality galvanized steel, single wall with heat insulation |
| Door lock | Outdoor anti-theft three point lock, support padlock |
| IP grade | IP55 |
| Cable entry | On the bottom |
| Lifting hook | 4 pcs hooks on the base |
| Operating temperature | -40℃～+75℃ |
| Cabinet relative humidity | 5%～100% |
| Air pressure | 62kPa ~ 101kPa (similar to 0m ~ 5000m altitude) |
| Cabinet relative humidity | 5%～100% |
| Cooling system | |
| Air conditioner |
Cooling Capacity: 1500W; Power Supply: AC220V 50HZ On the front door Compressor air conditioner Environmental-friend refrigerant |
| Fan | Two DC48V fans with one temperature controller |
| Illumination | |
| LED light | -48V, with one light switch |
3. Advantages
(1) High compatibility, high integration, supporting multiple equipments, good appearance
(2) Standard compartment temperature control , energy saving and high efficiency
(3) Flexible structure, flexible assembly
(4) Can be installed in any difficult places include the top of mountain and the roof of buildings.
(5) Theft-proof, wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55.
(6) All the screws are built in cabinet, enhance security.
(7) Using heat insulation can effectively prevent heat from entering.
4. Dimension Diagram

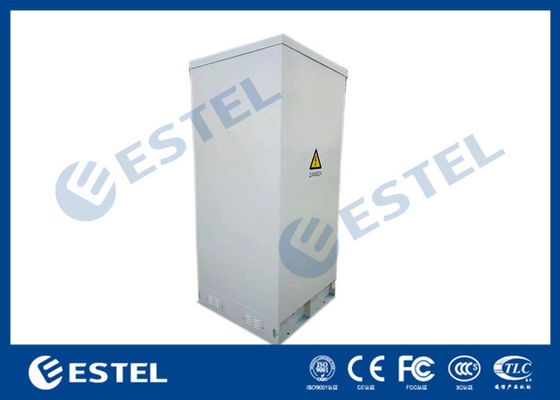

5. Cabinet Picture
6. Details
7. Wooden case package
Use free fumigation plywood, can direct used for export.
-
