DC48V 40U 1.2mm SS Outdoor Telecom Cabinet Base Station Energy Saving
Product Details
1.2mm SS Outdoor Telecom Cabinet
,DC48V Outdoor Telecom Cabinet
,DC48V telecom outdoor cabinet
DC48V 40U Outdoor Telecom Cabinet 1.2mm Stainless Steel Enclosure Base Station Energy Saving
1. 40U Cabinet Description
Outdoor telecom enclosure ET100100200-EQ-2D includes standard 19” rail and slideable tray.This cabinet can installe telecom equipment, power system,solar charge device and battery.The material use high anti-rust stainless steel. Full access both front and back, it is very convenient to install and maintain. Compressor frequency conversion air conditioner is adopted for cabinet cooling, which is energy saving and environmental protection.
2. 40U Cabinet Technical Data
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | ET100100200-EQ-2D |
| Size | External Size: W×D×H: 1000mm×1000mm×2000mm | |
| Component | The whole cabinet is composed of three parts: the top cover, the cabinet body and the base. The installation method is floor mount | |
| Material | Single wall with heat insulation: 1.2mm stainless steel 1.4003 with 20mm PEF heat insulation Air conditioner’s outer cover and all screws are stainless steel material. | |
| Structure |
1. One front door and one rear door, hidden zinc alloy hinge 2. Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with anti-theft three-point lock (support padlock) 3. Door stopper / wind lock is installed on the inside of the cabinet door 4. Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof 5. Two compartments: the upper compartment for 33U 19" equipments, the lower compartment for one layer battery, 19” rack is fixed. Install 4 batteries on one slide tray, the slide tray on the 19" rack. 6. Equipped with cable manager 7. Cable entry at the bottom of cabinet 8. Grounding Protection: copper bar |
|
| Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification, outdoor anti-corrosion powder coating | |
| Color | Grey RAL 7035 | |
| Ingress Protection | IP56 | |
| Working Temperature | -40°C～+85°C | |
| Cooling Method | Compressor Air Conditioner | DC48V 1500W, 1 set |
| Sensors | Door Sensor | When unlawfully opened, provide real-time alarm, 2 pcs |
| Temperature Sensor | Monitor the temperature status inside the cabinet and provide real time alarm, 1 pcs | |
| Power System | Power Distribution Unit |
Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*5; DC Output: 6A/1P*5. Height: 4U |
| Illumination | LED Light |
DC48V, including one LED Lamp switch for controlling LED lamp on/off 2 sets |
3. 40U Cabinet Drawing
4. 40U Cabinet Application Area
5. 40U Cabinet Feature
- Ingress protection: IP65, dustproof, water proof
- Antitheft three point lock
- Standard 19 inch rail.
- Cooling method: air conditioner
- Suitable for harsh outdoor environment
- High integration, less land occupation, short construction period, effectively reduce the construction cost
- Perfect thermal design, efficient energy saving and emission reduction, effectively reduce operating costs
6.40U Cabinet Advantage
- Stainless steel has better corrosion resistance
- The cabinet have quakeproof structure
- Outdoor cabinet is compact and durable, space layout is reasonable, greatly reducing the construction cost
- Intelligent temperature control, variable frequency air conditioner, more energy saving, high efficency
- High and low temperature protection

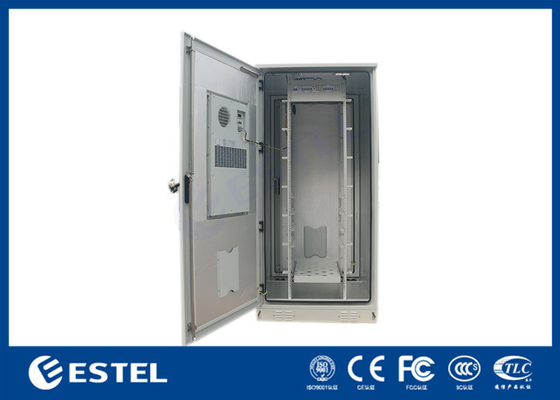

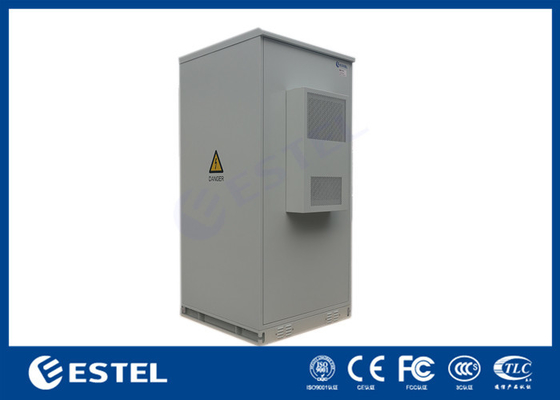

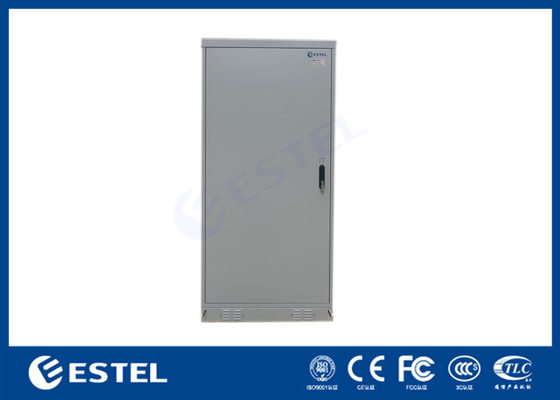

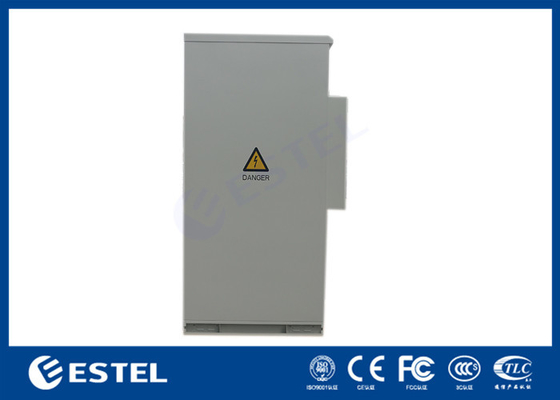

7. 40U Cabinet Cabinet details display
