TEC Outdoor Telecom Cabinet Free Standing For Electrical Equipment

TEC Outdoor Telecom Cabinet Free Standing For Electrical Equipment
TEC Outdoor Telecom Cabinet Free Standing For Electrical Equipment TEC Outdoor Telecom Cabinet Free Standing For Electrical Equipment TEC Outdoor Telecom Cabinet Free Standing For Electrical Equipment TEC Outdoor Telecom Cabinet Free Standing For Electrical Equipment

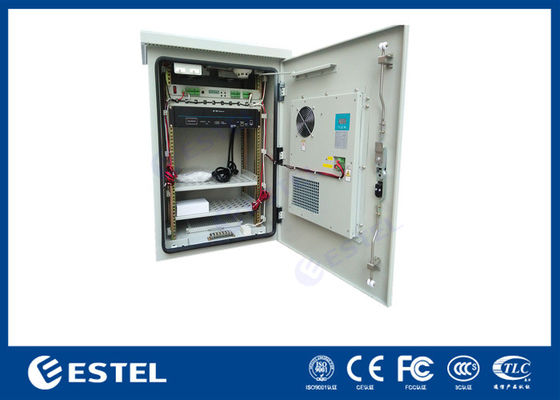

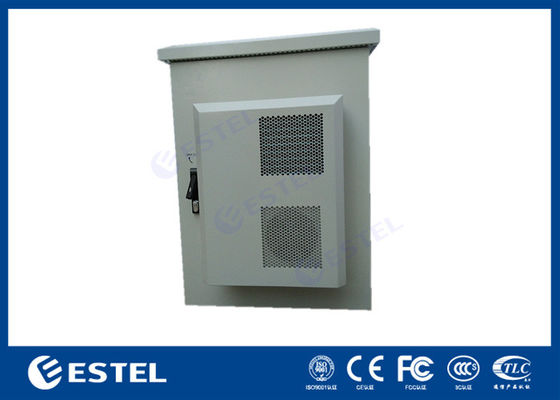

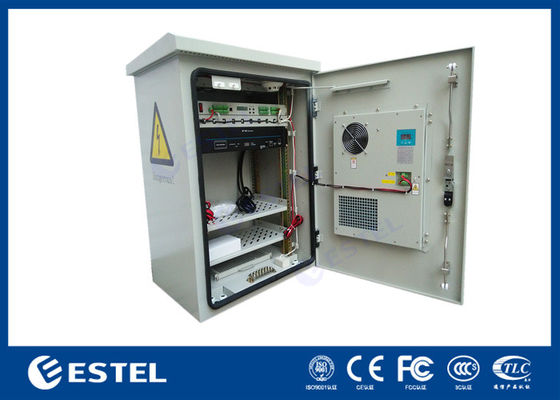

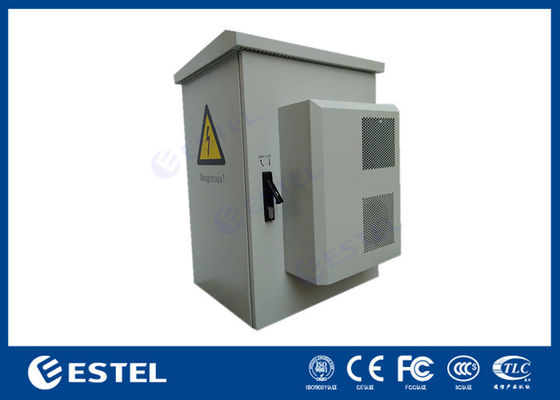

Large Image :  TEC Outdoor Telecom Cabinet Free Standing For Electrical Equipment

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: Estel
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: DDTE050-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, MoneyGram, T/T
Supply Ability: 3,000 sets per month
Detailed Product Description
Protection: rom Dirt, Dust, Oil, And Other Non-corrosive Material Silk-screening: Yes
Dimension: H*W*D 1150*650*650mm Door: With One Front Door, And Special Lock For Outdoor Cabinet
Material: Galvanized Steel; 1.5mm Thick Outer Plate, 0.8mm Thick Inner Plate Cooling: TEC Air Conditioner And DC48V Fans
High Light:

TEC Outdoor Telecom Cabinet

,

Free Standing Outdoor Telecom Cabinet

,

TEC Outdoor Equipment Cabinet

TEC Outdoor Telecom Cabinet Free Standing For Electrical Equipment



Pole Mounted 19” Galvanized Steel Non-Corrosive IP55 TEC Outdoor Telecom Cabinet



1, Description Of Outdoor Telecom Cabinet
Pole-Mounted Cabinets are designed to house sensitive data network and electrical equipment for a variety of heavy duty outdoor applications including general industrial, infrastructure, road/traffic management and intelligent transport systems. Usage: Video Surveillance Systems, Network Integration System, Remote Monitoring System, Electronic Monitoring System, Wireless Monitoring System



2, Selling points and Feature Of Outdoor Equipment Cabinet

  • Protection from dirt, dust, oil, and other non-corrosive material
  • Complete protection from contact with enclosed equipment
  • Available in aluminum, carbon steel, and stainless steel
  • Available in wall-mounted, free standing, trough, and telegraph pole mounting
  • Engraving, silk-screening, or anodizing services available
  • Custom with cutouts, insulation,cooling system, hinges, latches, or locks

3, Technical Parameters

Item Type Technical Parameter
Structure Dimension External Dimension: H*W*D 1150*650*650mm
Layout 1 compartment, the lower part is for installing batteries, and the upper part is for installing 19” equipment.
Equipment Installation Method 19″ Data Rack Rails
Door With one front door, and special lock for outdoor cabinet (support padlock)
Material Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate
Structure Welded
Ingress Protection IP55
Temperature Control Cooling TEC air conditioner and DC48V fans
Temperature Temperature Working Temperature: 40°C ~ +55°C
Storage Temperature: -40°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)

Radiation

Intensity

Solar Radiation

Intensity

1120 × (1±5%)W/m2



4, Accessories List

No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension:

H*W*D 1150*650*650mm

(2) 1 compartment, the lower part is for installing batteries, and the upper part is for installing 19” equipment.

(3) With one front door , and special lock for

outdoor cabinet (support padlock) ;

(4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate;

2

Auxiliary Direct

Ventilation Fans

4 Set 12038 DC48V
3 TEC 1 Set 100W
4 Door detector 1 Set One for controlling LED lamp, the other for open door alarm
5 LED LAMP 1 Set 48V LED lamps



5, Enclosure Cooling

TEC air conditioner Cooling capacity: 400W, DC48V; and 4pcs DC48V fans



6, Cabinet Structure

(1) External Dimension: H*W*D 1150*650*650mm

(2) 1 compartment, the lower part is for installing batteries, and the upper part is for installing 19” equipment.

(3) With one front door , and special lock for outdoor cabinet (support padlock) ;

(4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate;



7, Cabinet Layout Diagram:

TEC Outdoor Telecom Cabinet Free Standing For Electrical Equipment 0





8, PDU





TEC Outdoor Telecom Cabinet Free Standing For Electrical Equipment 1



The PDU provides secured remote power source management operation and AC current monitoring (optional) via TCP/IP networks or local direct connection. Accessing the system is password protected at Administration level or user privilege levels. Network security includes user name and password (64-bit encrypted) authentication for Web access or sending emails. 16R offers the most versatile access control methods in the industry for easy, quick and reliable operations.

9, Installation Picture

TEC Outdoor Telecom Cabinet Free Standing For Electrical Equipment 2



FAQ

Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
