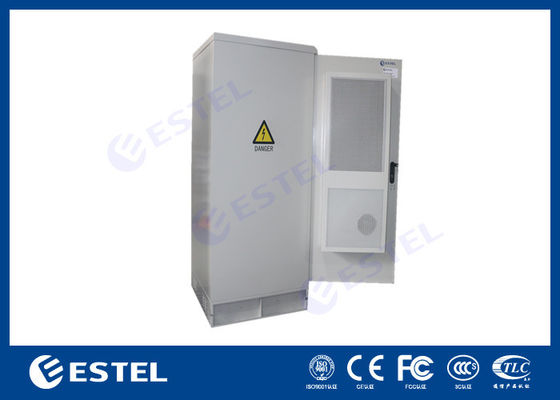

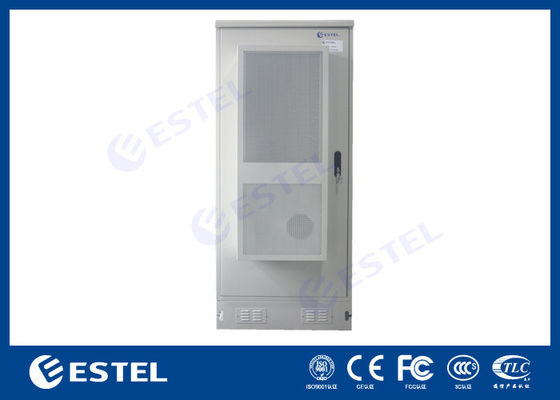

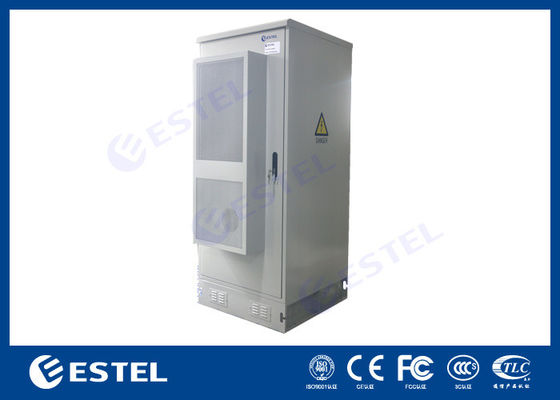

40U Outdoor Telecom Cabinet Air Conditioner 19 Inch Rack Enclosures

40U Outdoor Telecom Cabinet Air Conditioner 19 Inch Rack Enclosures
40U Outdoor Telecom Cabinet Air Conditioner 19 Inch Rack Enclosures 40U Outdoor Telecom Cabinet Air Conditioner 19 Inch Rack Enclosures 40U Outdoor Telecom Cabinet Air Conditioner 19 Inch Rack Enclosures 40U Outdoor Telecom Cabinet Air Conditioner 19 Inch Rack Enclosures

Large Image :  40U Outdoor Telecom Cabinet Air Conditioner 19 Inch Rack Enclosures

Product Details:
Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001
Model Number: ET9090210-EQ-HC
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Wooden Case with Pallet
Delivery Time: 15 to 20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1800PCS per month
Detailed Product Description
Size: W×D×H 900×900×2100mm Available User Space: 40U Standard 19” Rack
Material: Galvanized Steel, Single Wall With Heat Insulation Surface: Outdoor Powder Coating
Cooling: AC220V 50Hz 3000W Air Conditioner Earthing: Grounding Copper Bar
IP Level: IP55 Cable Entry: Located On The Bottom
Highlight:

40U Outdoor Telecom Cabinet

,

One front door Outdoor Telecom Cabinet

,

40U 19 Inch Rack Enclosures

40U Outdoor Telecom Cabinet Air Conditioner 19 Inch Rack Enclosures



40U Outdoor Telecom Cabinet Telecommunication Equipment Enclosure High Cooling Capacity Air Conditioner





1. Technical parameter of outdoor cabinet





No. Description Specification
Specification of cabinet
1 Model ET9090210-EQ-HC
2 Cabinet Dimension W×D×H 900×900×2100mm
3 Available User Space 40U standard 19” rack
4 Door One front door
5 Lock Outdoor special anti-theft three point locking
6 Material Galvanized steel, single wall with heat insulation
7 Cabinet Installation method Floor mount
8 Cable Entry Located on the bottom
9 Lifting 4 ears on the cabinet base
10 Earthing Grounding copper bar
11 Working Temperature -40°C~+75°C
12 Protection Level IP55
13 Relative Humidity 5% ~ 100%
14 Atmospheric Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
15 Solar Radiation Intensity 1120 ×(1±5%)W/m2
Other accessories
1 Cooling

Cooling capacity: 3000W,

Power supply: AC220V, 50Hz

2 LED light AC220V 50Hz, with LED lamp switch
Packing
Wooden case W×D×H 970×1190×2270mm

2. Applications


The cabinet is suitable for outdoor, cold resistance, heat resistance, wind and rain resistance, dust resistance. Mainly used for wireless communication base stations, including a new generation of 5G systems, integrated communications/network services, access/transmission exchange stations, emergency communications/transmissions, etc.



3. Outdoor Telecom Cabinet Description



This outdoor telecom cabinet is 40U equipment cabinet with high cooling capacity 3000W air conditioner. Suitable for high temperature area.It can provide a stable working environment for telecom equipments. It is usually used in outdoor communication base station. The material use high quality powder coated galvanized steel.



4. Feature



(1) The embedded structure door enhances the anti-theft effect.

(2) High quality galvanized steel.

(3) Standard 19 inch rack.

(4) High protection level IP55, waterproof and dustproof, effectively protect the equipment in the cabinet.

(5) The cabinet adopts three-point lock to prevent illegal entry.

(6) Hidden hinge, inside screws, enhance the theftproof.

(7) Wind lock to hold door open at service.

(8) Use compressor air conditioner to keep inside temperature of the cabinet.



5. Advantage



  • Multi-stage cleaning and pre-treatment prior to the application of a 120micron powder coating
  • The cabinet structure can protect against earthquake
  • Space layout is reasonable, greatly reducing the construction cost
  • Waterproof, anti-corrosion, anti sand and anti ultraviolet, ensure cabinet can work longer in a harsh outdoor environment
  • Can accommodate 19” equipment and lithium ion battery
  • High capacity cabinet have 40U space

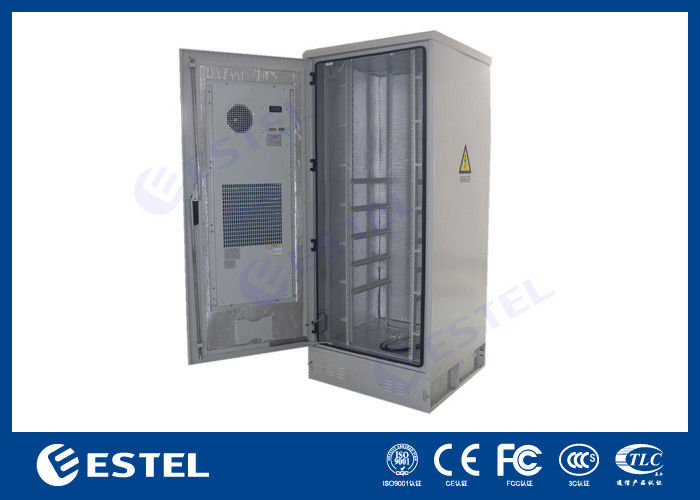

6. Cabinet display



40U Outdoor Telecom Cabinet Air Conditioner 19 Inch Rack Enclosures 0



7. Cabinet Drawing



40U Outdoor Telecom Cabinet Air Conditioner 19 Inch Rack Enclosures 1





8. FAQ



Q: Are you a trading company or manufacturer?

ESTEL: We are a factory.



Q: Do you offer OEM & ODM services?

ESTEL: Yes, of course.



Q: Can support custom made?

ESTEL: Yes, we have professional technical team to design based customer’s actual demand.



Q: What' s your QC system?

ESTEL: We can provide all kinds of testing certificates, material anddimensional inspection, etc.



Q: Will our design be protected from another usage?

ESTEL: Yes, we can sign NDA with you.



Q: What' s your after-sale service?

ESTEL: If there is a quality problem, please provide photos or test reports, we will replace defective goods or return funds.



9. Packing



Our cabinets are packed in wooden box which is a kind of free fumigated plywood.The advantage is rain proof, moisture-proof, mildew proof, rust proof, erosion proof, dust-proof, shock proof, local protection, etc. It can protect the goods reliably. Firm and reliable, compact packaging, reduce the loss of goods in the logistics process, ensure the safety of goods; goods can be effectively protected, which is particularly important for fragile and valuable goods.



40U Outdoor Telecom Cabinet Air Conditioner 19 Inch Rack Enclosures 2
