24U 19 Inch Rack Cabinet 1500W Air Conditioner Outdoor Equipment Enclosure

24U 19 Inch Rack Cabinet 1500W Air Conditioner Outdoor Equipment Enclosure
24U 19 Inch Rack Cabinet 1500W Air Conditioner Outdoor Equipment Enclosure 24U 19 Inch Rack Cabinet 1500W Air Conditioner Outdoor Equipment Enclosure 24U 19 Inch Rack Cabinet 1500W Air Conditioner Outdoor Equipment Enclosure 24U 19 Inch Rack Cabinet 1500W Air Conditioner Outdoor Equipment Enclosure

Large Image :  24U 19 Inch Rack Cabinet 1500W Air Conditioner Outdoor Equipment Enclosure

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: EA2315001-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
Supply Ability: 5,000 sets per month
Detailed Product Description
Dimension: W×D×H 750×750×1750mm Cooling: 1500W Air Conditioner And 2 Fans
LED Lamp: 48V LED Lamp Humidity: 5% ~ 100%
Air Pressure: 62kpa ~ 101kpa IP Rate: IP55
High Light:

24U 19 Inch Rack Cabinet

,

IP55 19 Inch Rack Cabinet

,

24U Outdoor Equipment Enclosure

24U 19 Inch Rack Cabinet 1500W Air Conditioner Outdoor Equipment Enclosure



24U 19inch Uncorrosion Two door Outdoor Enclosure with 1500W Air Conditioner and 2 Fans


1, Description Of Outdoor Telecom Enclosure
This outdoor telecom cabinet is designed and produced by ESTEL, which is made of high-quality galvanized steel,coated with anticorrosive and anti-ultraviolet powder, and with IP55 protection grade. The cabinet is equipped with a power system, lightning protection and grounding system, temperature control system, lighting system, and user equipment installation space.

2, Selling points and Feature Of Outdoor Equipment Enclosure

  • The cabinet with IP55 protection level is dustproof, sunproof, and rainproof, especially suitable for the outdoor environment.
  • The cabinet uses air conditioners as a cooling system, which can effectively reduce the temperature in the cabinet.
  • The layout of the cabinet is reasonable to facilitate cable access, fixing, and grounding. There are entrance holes individually for power cable, signal cable, and optical cable.
  • All the cables used in the cabinet are made from flame-retardant materials. Access control, smoke, water immersion, temperature, humidity, and other comprehensive protection.
  • Professional outdoor powder spraying, and strong weather resistance.
  • Support custom made



3, Technical Parameters

Item Type Technical Parameter
Structure Dimension External Dimension H*W*D W×D×H 750×750×1750mm
Layout One compartment
Equipment Installation Method 19” standard rack, 24U
Door With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock)
Material Galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.
Structure Assembled
Ingress Protection IP55
Temperature Control Cooling 1500W Air Conditioner and 2 fans
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1124 × (1±5%)W/m2





4, Accessories List

No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension H*W*D 1225*900*900mm ;
(3) With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

2 Air Conditioner 1 Set 1500W Air Conditioner, AC220V power supply
3 110V To 220V Transformer 1 Set Used for air conditioner input
4 Fans 2 PC 12038, DC48V
5 Power Distribution Unit 1 Set

Grade B Lightning Proof
2 x 63A/1P
2x32A/1P
2x16A/1P
2x10A/1P
2x5A/1P
Height: 3U

6 Embedded Telecom Power System (UPS) 1 Set

DC48V, 90A, 4800W; Model:
GPE4890J

7 Package 1 Set Wooden Case
8 Sensor     Sensors (including 1 smoke sensor, 2 door alarm, 2 LED lamp, 1 water sensor, and 1 temperature and humidity sensor.)



5, Enclosure Cooling

1Set 1500W Air Conditioner, AC220V power supply

2 pcs DC48V fans.



6, Cabinet Structure
(1) External Dimension H*W*D 1225*900*900mm ;
(2) One compartment;

(3) With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

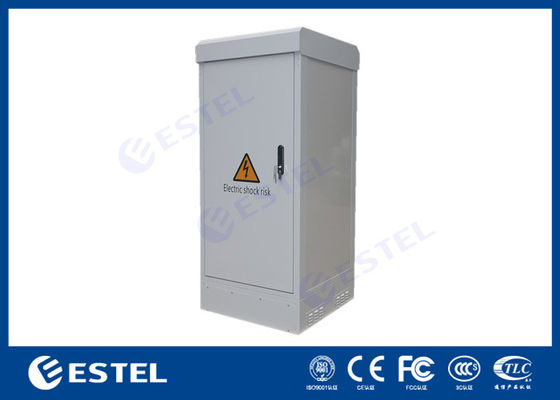

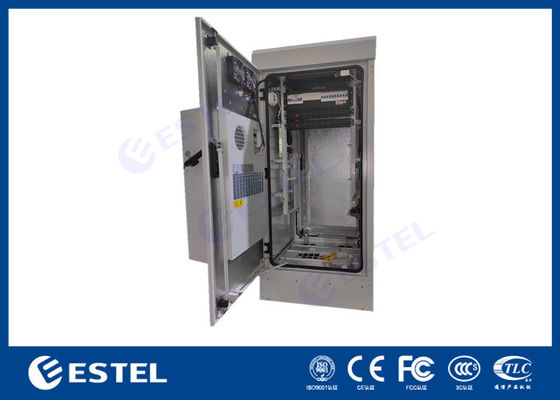

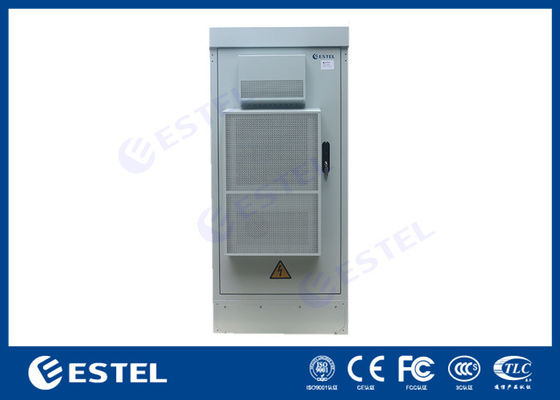

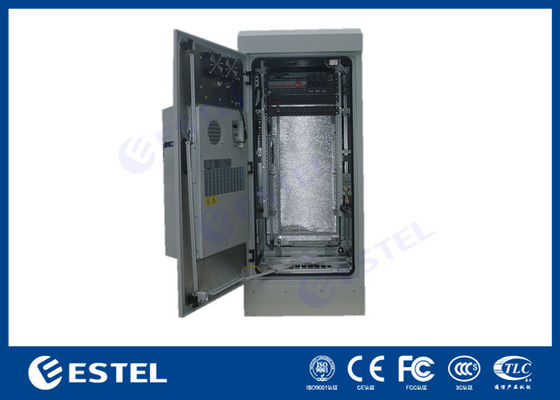

7, Cabinet Picture:



24U 19 Inch Rack Cabinet 1500W Air Conditioner Outdoor Equipment Enclosure 0




8, Rectifier System





9, Power system

◆The monitor has sleeping function
◆Adoption of active powerfactor
compensation technology with factor
>0.99
◆Wide operating range of AC input ;
voltage: 90~280Vac ;
◆Operating temperature range: -25°C~+55°C
◆Zero current/voltage switching tech with high efficiency≥91%
◆Perfect battery management, charge & discharge management, battery temperature compensation,
  low voltage protection,extend battery lifetime
◆Hot-swappable
◆The monitor has sleeping function, saving energy., Input over/under voltage protection
◆Output over voltage protection
◆Output over current protection
◆Output short circuit protection
◆Embedded mounted
24U 19 Inch Rack Cabinet 1500W Air Conditioner Outdoor Equipment Enclosure 1
24U 19 Inch Rack Cabinet 1500W Air Conditioner Outdoor Equipment Enclosure 2


FAQ

Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
