Waterproof 28U IP55 Equipment Enclosures Outdoor Electronics Cabinet
28U IP55 Outdoor Telecom Cabinet Heat Exchanger Cooling PU Sandwich Structure Panel Waterproof
1. Outdoor equipment cabinet brief

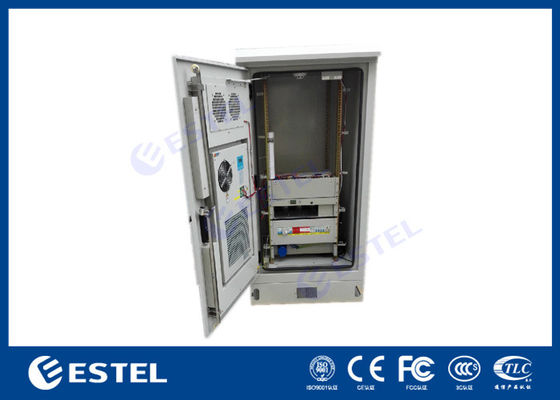

Model ET8080155-EQ is an outdoor equipment cabinet with 28U 19 inch effective installation space. Heat exchange and fan cooling are adopted. It is equipped with embedded power supply (including monitoring), AC distribution box, oil engine distribution box, smoke sensor, water immersion sensor, door sensor, LED light and light switch.
2. Technical parameter of outdoor cabinet
| No. | Description | Specification |
| I | Specification of cabinet | |
| 1 | Model | ET8080155-EQ |
| 2 | Cabinet Dimension | W*D*H 800*800*1550mm |
| 3 | Height of 19-inch rack | 28U |

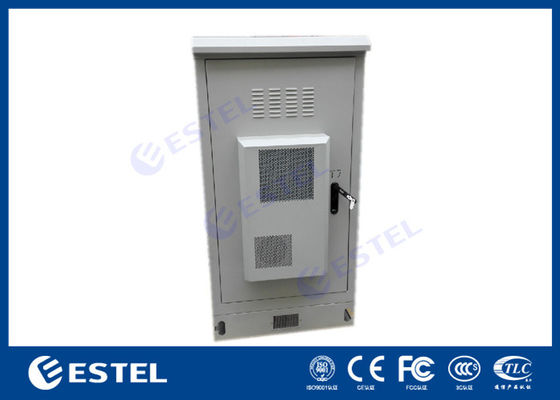

| 4 | Door | Front door access, door open angle can be reach 110°, integrated DC48V heat exchanger 80W/K |
| 5 | Lock | Outdoor special anti-theft three point locking(bottom, top and middle) |
| 6 | Material | PU Sandwich structure panel, double wall, galvanized steel, with heat insulation |
| 7 | Cabinet Installation method | Ground installation |
| 8 | Cable Entry | Located on the bottom |
| 9 | Lifting | 4 ears on the cabinet base |
| 10 | Earthing | Grounding copper bar |
| 11 | Working Temperature | -40°C～+75°C |
| 12 | Protection Level | IP55 |
| 13 | Relative Humidity | 5% ~ 100% |
| 14 | Atmospheric Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| 15 | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
| II | Specification of heat exchanger | |
| 1 | Rated heat exchange capacity | 80W/K |
| 2 | Rated heating capacity | 300/500W (optional) |
| 3 | Rated input current | 2.0A |
| 4 | Rated input power | 96W |
| 5 | Rated input voltage | DC48V |
| 6 | MTBF | 70000 hours |
| 7 | Noise | 62dB |
| 8 | IP Grade | IP55 |
| 9 | Weight | 18kg |
| 10 | Working environmental temperature | -20°C ~ 55°C |
| 11 | Storage working temperature | -40°C ~ 70°C |
| 12 | Working humidity | ≤95% |
| III | Other accessories | |
| 1 | Embedded power supply/rectifier system |
5U, 19” Including monitoring module, rectifier module |
| 2 | AC distribution box | Custom made based on client’s requirement. |
| 3 | Oil engine distribution box | Custom made based on client’s requirement. |
| 4 | Smoke sensor | |
| 5 | Water sensor | |
| 6 | Door sensor | |
| 7 | LED light | DC48V |
| 8 | LED light switch | Control light on or off |
| 9 | Ventilation fan | Two DC48V fans |
Our outdoor telecom cabinet is used for housing and protecting active communications, power system, battery and sensitive electronic equipment, it is suitable in the harsh outdoor environment. It widely be used in the following places:
Communication station
Carpark
Trackside
Buildingtop
Mountain area
Public garden
Seaside
Street
4. Feature
(1) Embedded structure design, effectively ensure the door is prized.
(2) Material by using Sandwich structure panel, double layer galvanized steel plate with PU heat insulation
(3) Maintin method: front door.
(4) Cooling by DC heat exchanger and DC fans.
(5) Column mount using 19 inch.
(6) Protection grade IP55, effectively prevent rainwater leakage.
(7) The door lock adopts the special mechanical lock for outdoor cabinet, and the three-point locking structure provides reliable safety protection for the cabinet.
(8) The cabinet adopts landing installation
5. Advantage
6. Cabinet display
7. Packing and Shipping
Cabinet package use free fumigation plywood which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
