RAL7035 47U Battery Outdoor Power Cabinet 6400W Rectifier

RAL7035 47U Battery Outdoor Power Cabinet 6400W Rectifier
RAL7035 47U Battery Outdoor Power Cabinet 6400W Rectifier RAL7035 47U Battery Outdoor Power Cabinet 6400W Rectifier RAL7035 47U Battery Outdoor Power Cabinet 6400W Rectifier RAL7035 47U Battery Outdoor Power Cabinet 6400W Rectifier RAL7035 47U Battery Outdoor Power Cabinet 6400W Rectifier RAL7035 47U Battery Outdoor Power Cabinet 6400W Rectifier

Large Image :  RAL7035 47U Battery Outdoor Power Cabinet 6400W Rectifier

Product Details:
Place of Origin: Shenzhen, China
Brand Name: ESTEL
Certification: ISO
Model Number: ET8585235-UP
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Depending on order quantity
Packaging Details: Wooden case
Delivery Time: 20 to 30 days
Payment Terms: T/T, L/C
Supply Ability: 1000 sets per month
Detailed Product Description
External Dimension: W×D×H 850×850×2350mm Space: 47U
Material: Galvanized Steel, Double Skins With Thermal Insulation Protection: IP55, Outdoor Application
Installation Method: Floor Installed Color: RAL7035, Grey
Layout: 2 Compartments Door: Two Front Doors
Lock: Three Point Lock System Power Distribution Panel: Customized
Environment Monitoring System: Can Monitor Door Open, Smoke, Water, Temperature, Humidity, AC Power Failure Etc. Rectifier: -48VDC, 6400W
High Light:

47U Battery Outdoor Power Cabinet

,

6400W Rectifier Outdoor Power Cabinet

,

RAL7035 Air Conditioner Power Cabinet



47U Outdoor Battery And Power Cabinet for Telecom Air Conditioner Cooled

Model: ET8585235-UP





Introduction



Estel has a wide range of outdoor power cabinet for telecom industry. The outdoor power cabinet can be installed with battery, rectifier, UPS, inverter, power distribution unit, telecom equipment, etc. The cooling solution is air conditioners. The input power supply for the air conditioner can be -48VDC, 220VAC 50Hz/60Hz. 110VAC. Customer can choose the voltage according to their specific need.



ESTEL’s outdoor power cabinet series comes in several sizes to ensure the right dimensions for different telecom power system and batteries.



Our outdoor power cabinet series includes multiple wall structure alternatives for protecting telecom equipment in the best possible way, from a single-layer wall construction with light and cost-effective design to a multilayer construction designed for more demanding conditions. Our multi-point locks can protect the cabinet from intruders.



Features



● Galvanized steel material, corrosion resistant

● Attractive powder coat finish

● Double skin solar shielding

● Vandal resistant 3 point locking system

● Air conditioner cooling for thermal management

● -48VDC 6400W 120A rectifier

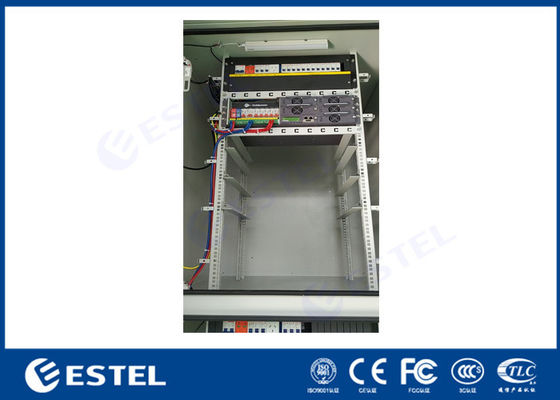

● Upper part is 23U 19inch space for installing telecom power supply unit

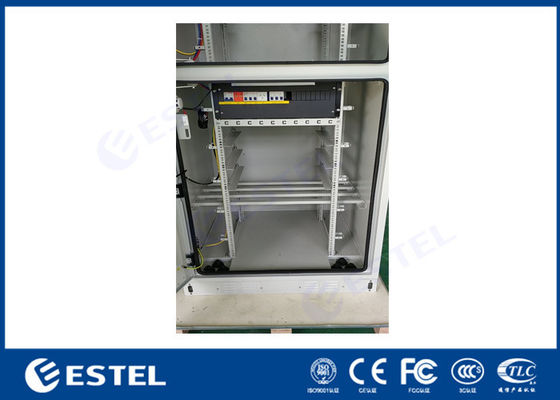

● Lowe part is 24U space, two options: 19”rail or 2 battery shelves

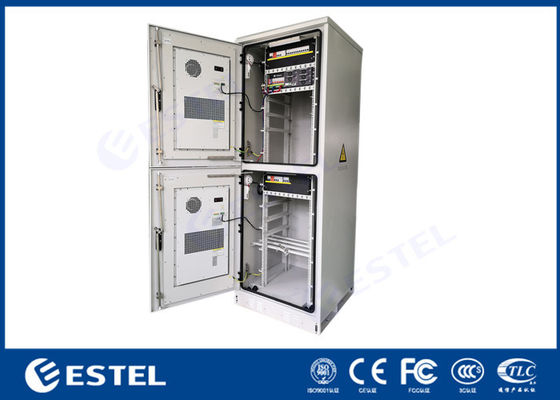

● Two front doors: one front door for upper compartment, and one front door for lower compartment

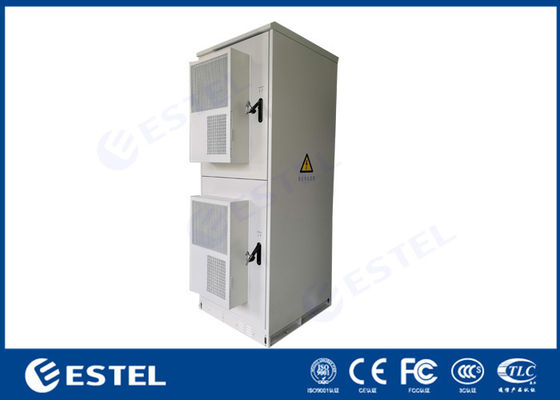

● Two air conditioners for cooling, one air conditioner on each door

● Customized power distribution panel

● Optional cabinet environment monitoring system for monitor temperature, humidity, water, smoke, door open inside the cabinet

● Ground bar

● Door stopper

● LED lamp for illumination

● Ingress grade: IP55 protection, waterproof and dustproof



Technical Specs



Item Type Technical Parameter
Outdoor Cabinet External Dimension W×D×H 850×850×2350mm
Protection IP55, outdoor application
Cabinet Installation Method Floor installed
Layout 2 compartments: upper part is 23U 19” rail, for installing 19” equipments; lower part is for install two strings of battery or 19” equipments
Door Two front doors, one door for upper bay, and the other door for lower bay
Lock Three point lock system
Material Galvanized steel, double skins with thermal insulation
Thermal Insulation 30mm PEF
Coating Outdoor powder coating, corrosion resistant
Color RAL7035, grey
Cooling Air Conditioner

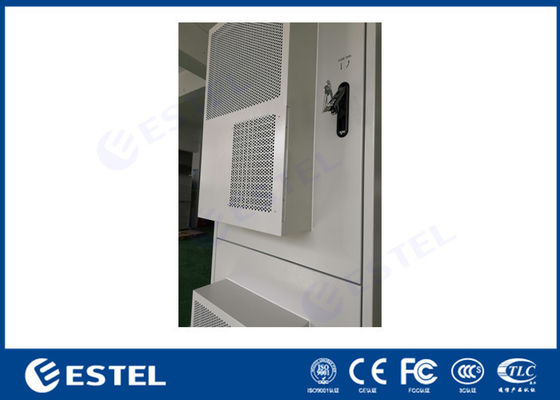

Two air conditioners, one installed on upper front door, and the other installed on lower front door.

Input Voltage: 220VAC 60Hz.

Cooling Capacity: 800W.

Power Supply Rectifier

Input Voltage: 220VAC

Output Voltage: -48VDC

Output Power: 6400W

Output Current: 120A

Communication: RS485

Power Distribution Panel

AC: 63A/2P*1, 60KA SPD, 32A/1P*1, 16A/1P*2, maintenance socket.

DC: 32A/1P*2, 16A/1P*10

Monitoring Environment Monitoring System 1U 19” installed environment monitoring unit, support SNMP communication, with web interface. Can monitor door open, smoke, water, temperature, humidity, AC power failure etc.
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2









Dimension



RAL7035 47U Battery Outdoor Power Cabinet 6400W Rectifier 0



RAL7035 47U Battery Outdoor Power Cabinet 6400W Rectifier 1



Pictures



RAL7035 47U Battery Outdoor Power Cabinet 6400W Rectifier 2



RAL7035 47U Battery Outdoor Power Cabinet 6400W Rectifier 3
