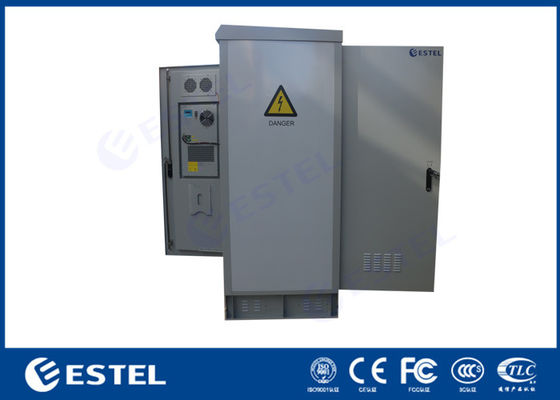

1500W Cooling 40U Telecommunication Outdoor Telecom Cabinet
Product Details
40U Telecommunication Outdoor Telecom Cabinet
,1500W Cooling Outdoor Telecom Cabinet
,60KA Air Conditioner Equipment Enclosure
40U Telecommunication Outdoor Telecom Cabinet Equipment Enclosure Front Back Access With Air Conditioner
1. Brief
ET9090210-EQ-2D-SA is an outdoor telecom cabinet designed and produced by ESTEL, which is made of high-quality galvanized steel,coated with anticorrosive and anti-ultraviolet powder, and with IP55 protection grade. The cabinet is equipped with a power system, lightning protection and grounding system, temperature control system, lighting system, and user equipment installation space.
2. Features
- The cabinet is weatherproof, such as sun-proof, dust-proof and waterproof, which is used in outdoor environment.
- The traditional machine room is miniaturized and compact; the volume and floor area are reduced.
- Three-point anti-theft cabinet door lock, excellent lock hole protection device
- According to the characteristics of communication equipment, small power temperature control by the cabin, high efficiency and energy saving.
- Short construction period, less land occupation, wider application scope, and lower construction cost.
- Access control, smoke, water immersion, temperature, and humidity, knocking and other comprehensive protection.
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.
- With one front door and one back door, easy installation and maintenance.
3. Product Advantages
4. Specifications
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension: W×D×H 900×900×2100mm Internal Dimension: W×D×H 800×800×1800mm(19”, 40U) (2) One compartment: equipment compartment (3) With one front door and one back door , and anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: galvanized steel, Sanwich structure panel, double wall with heat insulation |
| 2 | Air Conditioner | 1 | Set |
Cooling capacity: 1500W, Power supply: AC220V, 50HZ |
| 3 | Auxiliary Direct Ventilation Fan | 1 | Set | Two AC220V fans with one temperature controller |
| 4 | Environment Monitoring System | 1 | Set |
1× environment monitoring unit , 1U,SNMP 1× smoke sensor, 1× water sensor, 1× temperature&humidity sensor, 2× door sensor, 1× tilt&shock combination sensor |
| 5 |
LED Lamp Switch |
2 | PC | Used for controlling LED on/off |
| 6 | LED Lamp | 2 | PC | DC48V |
| 7 | Power Distribution Unit | 1 | Set |
Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4 Height: 4U |
| 8 | Package | 1 | Set | Wooden Case |
| Item | Type | Technical Parameter |
| Lightning Proof | Grade B lightning proof | Nominal: 60KA, Max.: 100KA |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Humidity | Relative Humidity | 5% ~ 100% |
| Radiation Intensity | Solar Radiation Intensity |
1120 ×(1±5%)W/m2 |
6. Cabinet Drawing
7. Details
8. Product Picture
9. Packing
-
