19 Inch Rail 32U Outdoor Telecom Cabinet IP55 With Front Door And Rear Door Air Conditioner
Model: ET9090175-EQ
1. Introduction
ESTEL is a leading manufacturer of outdoor telecom cabinet in China and has been servicing the telecom market since 2002. We designs and manufactures innovative, industry-leading, thermally managed outdoor electronic equipment cabinet solutions. During the past decades, ESTEL have provided solutions to a variety of global customers in telecom, cable, energy, land mobile radio, transportation etc. The company provides solutions for equipment mounting space, thermal management, fiber cable management and power and battery backup with speed and flexibility.

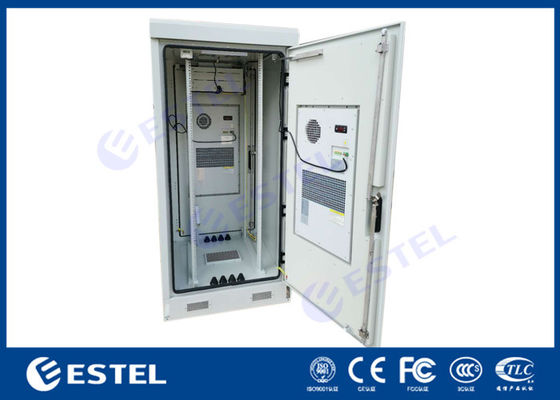

The outdoor telecom cabinet ET9090175-EQ is designed for installing 19” telecom equipments, with totally 32U installation space. The cabinet includes one front door and one rear door, totally 2 doors. One air conditioner on each door, totally 2 air conditioners.
2. Application
The cabinet is well suited for a wide range of telecom and industrial application such as:
(1) Radio access networks (2G, 3G, 4G/LTE/WiMax)
(2) Optical Networks
(3) DSL
(4) Cable TV
(5) Rail and Metro
3. Reliability
The outdoor telecom cabinet is of high reliability, which provide a cool, dry and secure environment for the electronics such as the DC power and telecom equipments.
The outdoor telecom cabinet include good thermal management that will keep sensitive electronics functioning in the most extreme environments.
4. Specifications
| EXTERIOR | Construction | Material: galvanized steel, corrosion resistant, double wall construction, include 20mm insulation. |
| Finish: light gray polyester powder coat, RAL7035 | ||
| Dimensions | Exterior Dimensions: W×D×H 900×900×1750mm | |
| Door | Door Access: one front door and one rear door, totally 2 doors. | |
| Door Lock: anti-theft three point lock, pad-lockable | ||
| Door Hinges: hidden hinges | ||
| Cable Entry | Ingress: 4 cable entry ports at bottom front and 4 cable entry ports at bottom back | |
| Floor mounted, self-standing | ||
| INTERIOR | Thermal Management Options |
Air Conditioner: 1 air conditioner on front door and 1 air conditioner on back door Cooling capacity: 1500W Input Voltage: 220VAC, 60Hz |
| 2 Fans, 220VAC, 60Hz | ||
| Equipment Mounting | 19” equipment rails, 32U | |
| IP Grade | IP55 | |
| Other Options | Lighting: LED lamp, 220VAC, 60Hz | |
|
Power Distribution Unit: SPD 60KA*1 AC Input: 63A/2P*1 AC Output: 16A/1P*4 DC Output: 16A/1P*4 Input voltage: 220VAC, 60Hz Maintenance socket*1 |
5. Cooling:
Air Conditioner: 1 air conditioner on front door and 1 air conditioner on back door, totally 2 air conditioners.
Cooling capacity: 1500W
Input Voltage: 220VAC, 60Hz
Air Conditioner Specs:
| Item | Name | Unit | Parameter |
| Dimension and installation | Body outline dimension (height * width*depth ) | mm | 750*450*200 |
|
Outline dimension including flange(height*width*depth ) |
mm | 784*484*200 | |
| Weight | Kg | 24 | |
| Installation method | Door Mounted | ||
| Installation method | Outdoor | ||
| Environment and protection | Working environment temperature | ℃ | -40 to +55 |
| Noise | dB(A) | 65 | |
| IP grade | IP55 | ||
| Refrigerant | R134a | ||
| Performance | Input voltage range | 220±15%VAC~60Hz | |
| Refrigerating capacity(L35/L35) | W | 1500 | |
| Rated Refrigerating input power(L35/L35) | W | 750 | |
| Rated Refrigerating current (L35/L35) | A | 3.5 | |
| Maximum Refrigerating current | A | 5.3 | |
| Heat capacity(optional) | W | / | |
| Air Volume of Inner Circulation | m3/h | 320 | |
