PEF Insulation IP55 Pole Mount Enclosure 150W/K Heat Exchanger
  • PEF Insulation IP55 Pole Mount Enclosure 150W/K Heat Exchanger
  • PEF Insulation IP55 Pole Mount Enclosure 150W/K Heat Exchanger
  • PEF Insulation IP55 Pole Mount Enclosure 150W/K Heat Exchanger
  • PEF Insulation IP55 Pole Mount Enclosure 150W/K Heat Exchanger
  • PEF Insulation IP55 Pole Mount Enclosure 150W/K Heat Exchanger
  • PEF Insulation IP55 Pole Mount Enclosure 150W/K Heat Exchanger

PEF Insulation IP55 Pole Mount Enclosure 150W/K Heat Exchanger

Place of Origin China
Brand Name ESTEL
Certification ISO9001
Model Number ET6565115P-UP
Product Details
Install:
Floor Mount And Pole Mount
Cooling:
Heat Exchanger
Material:
Galvanized Steel
Structure:
Single Wall
Door:
One Front Door
Equipment Installation:
19inch Rack+2 Battery Shelf
Protection:
IP55
Size:
H*W*D 1150 * 650 * 650mm
Working Temperature:
- 40 ℃~ + 75 ℃
High Light:

Heat Insulation Pole Mount Enclosure

,

PEF Insulation Pole Mount Enclosure

,

150W/K Heat Exchanger Enclosure Cabinet

Payment & Shipping Terms
Minimum Order Quantity
1PC
Packaging Details
Wooden Case
Delivery Time
15-20 days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1500 PCS per month
Product Description



Outdoor Waterproof Dusproof IP55 Pole Mount Enclosure Cabinet Single Wall With Heat Insulation Heat Exchanger Cooling



1 Cabinet size



PEF Insulation IP55 Pole Mount Enclosure 150W/K Heat Exchanger 0

2. Cabinet configuration



Cabinet size: 1150 * 650 * 650mm (HxWxD)



Cabinet material: galvanized steel plate + PEF insulation



Maintenance mode: front door access



Installation method: floor mount and pole mount



Rack size: 19 " rack + 2 layer battery shelf



Protection grade: IP55



Working temperature: - 40 ℃~ + 75 ℃



Cooling mode: DC48V 150W/K heat exchanger



Other accessory:



Environmental monitoring system:

1* environment monitoring unit, 1U,SNMP communication;

1* smoke sensor;

1* water sensor;

1* temperature&humidity sensor;

1* tilt &shock combination sensor;

1* door sensor

Power Supply: 220VAC, 60Hz



Power distritbution unit:

AC input: 63A/2P*1;

AC output: 63A/2P*1;

DC input : 63A/1P *1;

DC output : 16A/1P*1;

DC output : 10A/1P*3;

DC output : 6A/1P*3





3. Cabinet installation



3.1 Floor mount

PEF Insulation IP55 Pole Mount Enclosure 150W/K Heat Exchanger 1

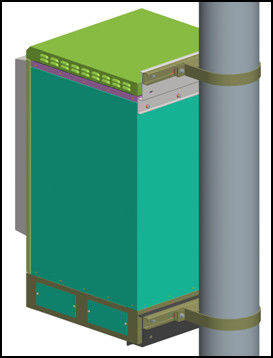

3.2 Pole mounting effect diagram



PEF Insulation IP55 Pole Mount Enclosure 150W/K Heat Exchanger 2

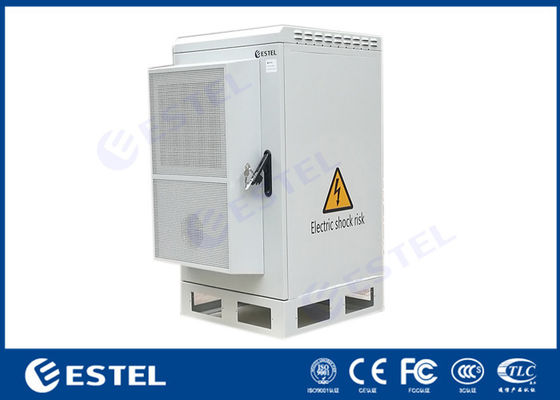

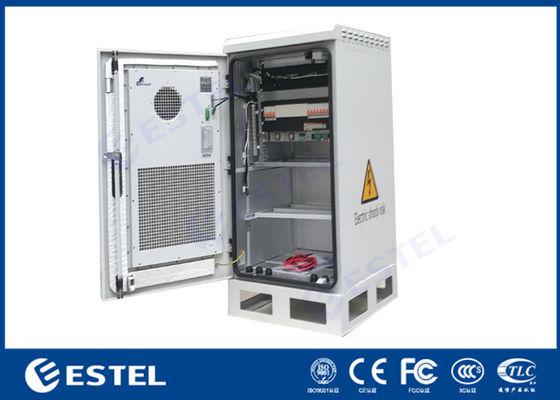

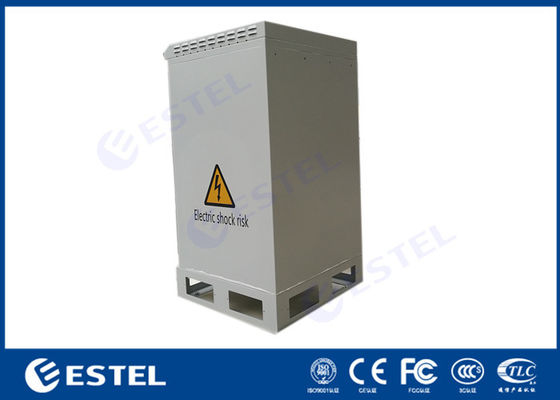

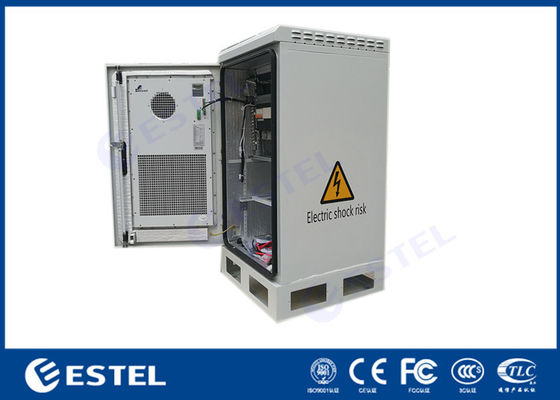

4. Cabinet Picture



PEF Insulation IP55 Pole Mount Enclosure 150W/K Heat Exchanger 3



5. Our factory



PEF Insulation IP55 Pole Mount Enclosure 150W/K Heat Exchanger 4
