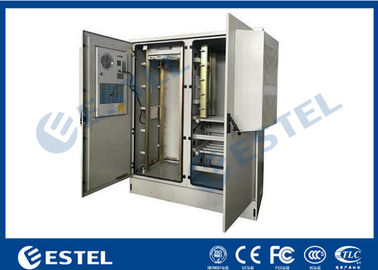

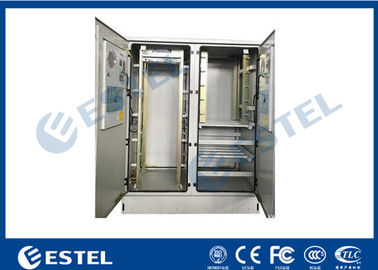

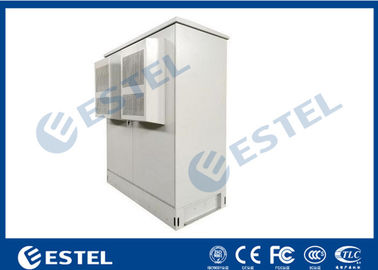

Floor Mount 2 Bays 1.5mm Thick Outdoor Network Enclosure

small.img.alt small.img.alt small.img.alt

Large Image :  Floor Mount 2 Bays 1.5mm Thick Outdoor Network Enclosure

Product Details:
Place of Origin: Place of Origin: Shenzhen,China (Mainland)
Brand Name: ESTEL
Certification: ISO9001,CE,3C,FCC,TLC,IP55
Model Number: 333180918050005
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability: 8,000 sets per month
Detailed Product Description
Material: Galvanized Steel Structure: 2 Compartments
Layout: 2 Bays With Middle Division Plate. Heat Insulation: PEF
Cooling System: AC220V Air Conditioners Or DC48V Fans Alarm Sensors: Water Sensor, Door Sensor, Smoke Sensor, Temperature Sensor And Humidity Sensor
Doors: With 2 Front Doors, And Anti-theft Three Point Lock For Outdoor Cabinet (support Padlock) Protection Level: IP55
High Light:

2 Bays Outdoor Network Enclosure


1.5mm Thick Outdoor Network Enclosure


Floor Mount 2 Bays Cabient


Communication Rack Outdoor Cabinet Two Compartment CE Certificated


1. Cabinet Features


1.1 Galvanized steel ,double wall with heat insulation.

1.2 Highly stable and rigid construction

1.3 Dustproof, sunproof and rainproof used in outdoor environment.

1.4 Floor mounting type

1.5 Including 19” standard installation rack.

1.6 The cabinet cooling uses air conditioner and fans.

1.7 Switching mode power supplies are available upon request.

1.8 Including -48VDC illumination lamp.

1.9  At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.

1.10 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A

1.11 Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.

1.12 The cabinets system can support Electrical equipments, PDU, Mornitoring system and etc.

1.13  IP55 protection level.

1.14 CE Certificated


2. Cabinet Description


Two compartments outdoor cabinet is a perfect combination of quality and styling that shields your system effectively and presents it in an attractive package of which you can be proud. They can protect equipment against things like dust, heat, water, or other environmental hazards.

They offer standard 19” racking rails, is a new design for telecom projects and surveillance projects. These enclosures have provision of floor mounting. This series enclosures offer all the protection needed for outdoor requirements. Ultimate security is provided by a three-point locking system.


3.Cabinet Parameters


No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Size H×W×D 2100×900×900mm

(2) One compartment: equipment compartment

(3)With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)

(4) Material: Galvanized steel ; 1.5mm thick outer plate, 0.8mm thick inner plate with 20mm PEF heat insulation between two walls.

2 Air Conditioner 1 Set

Cooling capacity: 2.0KW,

Power supply: AC220V, 50HZ;

3 Auxiliary Direct Ventilation Fans 2 PC 12038 DC48V
4 Door Sensor 2 PC One for controlling LED lamp, the other for open door alarm
5 LED Lamp 1 PC DC48V
6 Embedded Telecom Power System (Rectifier) 1 Set Optional
7 Temperature control switch 1 PC temperature control switch
8 Package 1 Set Wooden Case


4. Cabinet Components Installation


4.1 LED lamp, smoke sensor and door sensor are installed at the top of the enclosure.


Floor Mount 2 Bays 1.5mm Thick Outdoor Network Enclosure 0


4.2 PDU & EMU


PDU and EMU are installed on the 19" rack.


Floor Mount 2 Bays 1.5mm Thick Outdoor Network Enclosure 1


5. Cabinet Applications


Floor Mount 2 Bays 1.5mm Thick Outdoor Network Enclosure 2


6.Cabinet Package


Wooden case with pallets


Floor Mount 2 Bays 1.5mm Thick Outdoor Network Enclosure 3
