| Place of Origin | Shenzhen, China (Mainland) |
| Brand Name | ESTEL |
| Certification | ISO9001, CE, 3C, FCC, TLC, IP55 |
| Model Number | 132060614050002 |
27U Air Conditioner Cooling Outdoor Control Cabinet Galvanized Steel Double Wall
1. Cabinet Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension W×D×H 650×650×1400mm |
| Layout | One compartment | |
| Equipment Installation Method | 19” standard rack,27U | |
| Door | One front door and one back door ,with three point lock for outdoor cabinet (support padlock) | |
| Material |
Galvanized steel,double wall |
|
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Air conditioner |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
2. Cabinet Features
3. Cabinet Features
4. Cable Doors

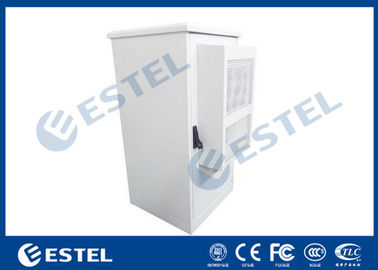

The cabinet has one front door and one back door.
5. Cooling System

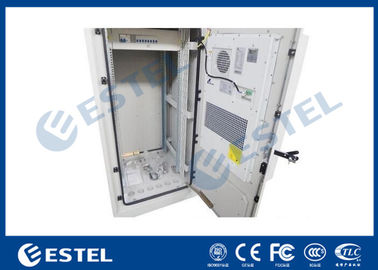

There is one 1000W cooling capacity air conditioner installed on the front door of the cabinet.
6.Cabinet Hinges
7. Cabinet Production
