| Place of Origin | Shenzhen, China (Mainland) |
| Brand Name | ESTEL |
| Certification | ISO9001, CE, 3C, FCC, TLC, IP55 |
| Model Number | 111080620050001 |
40U Waterproof IP55 Outdoor Control Cabinet Outdoor Electrical Cabinet
1. Cabinet Features
1.1 External Dimension is W×D×H 800×600×2000mm
1.2 Galvanized steel,single wall
1.3 Anti-theft three point lock
1.4 The cabinet includes 19” standard installation rack.
1.5 The cabinet cooling uses 4 fans.
1.6 Including -48VDC illumination lamp.
1.7 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
1.8 At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
1.9 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
1.10 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A
1.11 IP55 protection level.
2. Cabinet Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension W×D×H 800×600×2000mm |
| Layout | One compartment | |
| Equipment Installation Method | 19” standard rack,40U | |
| Door | One front door with three point lock for outdoor cabinet (support padlock) | |
| Material |
Galvanized steel,single wall |
|
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | 4 fans |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
3. Cabinet Dimension
External dimension is W×D×H 800×600×2000mm
4. Cable Inlet
All feeder cable and other external cables all use bottom wiring method.
There are eight cable inlets at the bottom of the cabinet.

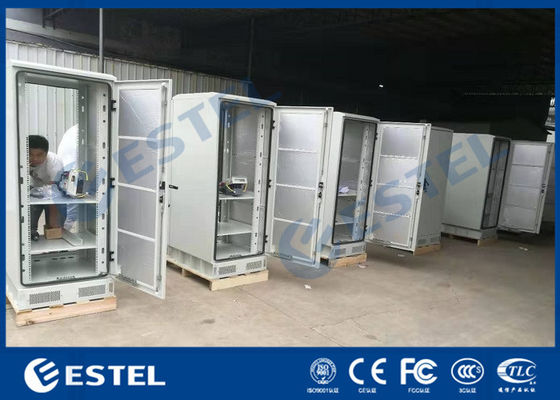

5. Cabinet Productions
