| Place of Origin | Shenzhen, China (Mainland) |
| Brand Name | ESTEL |
| Certification | ISO9001, CE, 3C, FCC, TLC, IP55 |
| Model Number | 121070717050004 |
Anti-theft Door Lock Outdoor Electronical Cabinet Galvanized Steel Heat Insulation
1. Cabinet Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension W×D×H 750×750×1750mm |
| Layout | One compartment | |
| Equipment Installation Method | 19” standard rack | |
| Door | With one front door with three point lock for outdoor cabinet (support padlock) | |
| Material |
Galvanized steel,single wall with heat insulation |
|
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | 2 fans |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
2. Cabinet Features
1.1 External Dimension is W×D×H 750×750×1750mm
1.2 Galvanized steel,single wall with heat insulation
1.3 Anti-theft three point lock
1.4 The cabinet includes 19” standard installation rack.
1.5 The cabinet cooling uses 2 fans.
1.6 Including -48VDC illumination lamp.
1.7 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
1.8At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
1.9 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
1.10 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A
1.11 IP55 protection level.

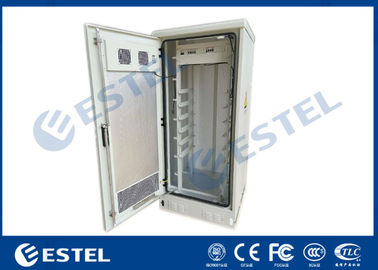

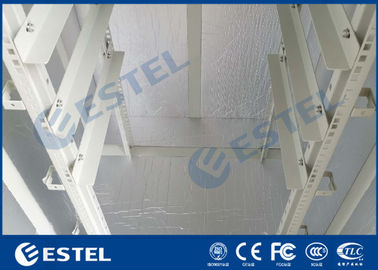

3.Cabinet Internal Installation
The cabinet includes 19" rack for equipment installation.
4. Cable Inlet
All feeder cable and other external cables all use bottom wiring method.
There are 4 cable inlets at the bottom of the cabinet.

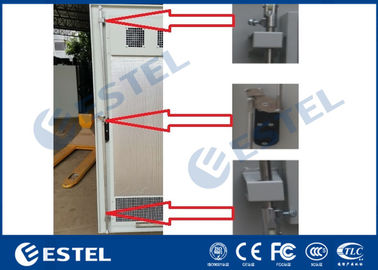

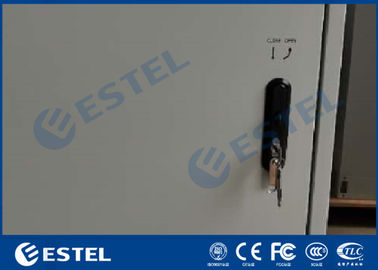

5.Cabinet Door Lock
The cabient door lock is three point anty-theft door lock.
