Waterproof IP55 19" Rack 32U Outdoor Electrical Cabinet
  • Waterproof IP55 19
  • Waterproof IP55 19
  • Waterproof IP55 19

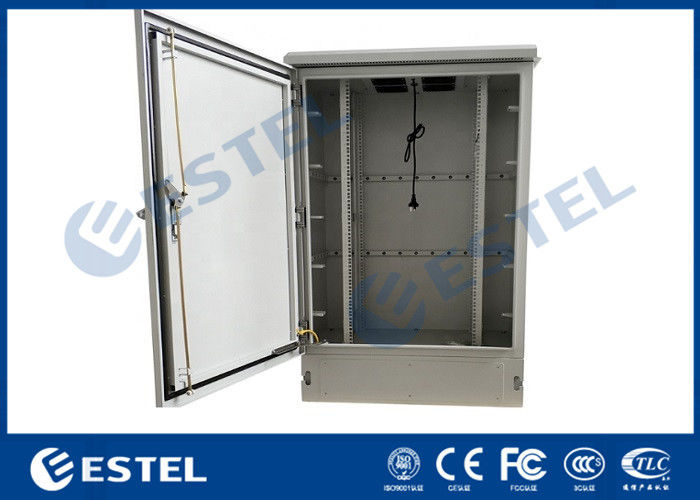

Waterproof IP55 19" Rack 32U Outdoor Electrical Cabinet

Place of Origin Shenzhen, China (Mainland)
Brand Name ESTEL
Certification ISO9001, CE, 3C, FCC, TLC, IP55
Model Number 111080618050001
Product Details
Material:
Galvanized Steel,single Wall
Protection Level:
IP55
Cooling System:
4 Fans
Structure:
One Compartment
Cabinet Door:
One Front Door
Cable Entry:
From Cabinet Bottom
Door Lock:
Anti-theft Three Point Lock
Certificates:
CE
High Light:

32U Outdoor Electronics Cabinet

,

19" Rack Outdoor Data Cabinet

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case
Delivery Time
15-20 working days
Payment Terms
T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability
8,000 sets per month
Product Description



IP55 Waterproof Galvanized Steel Outdoor Telecom Cabinet One Front Door



1. Cabinet Description



Outdoor Floor Standing Cabinets are designed to protect your sensitive network equipment from harsh environments. We have included features to safeguard it from the elements, while still keeping the equipment secure and well ventilated.The outdoor cabinet is secured with a 3 point anti theft door lock system. All fixtures are internal to the cabinet to provide a secure solution.



2. Cabinet Parameters



Items Type Technical Parameter
    1 External dimensions

W*D*H 800*600*1800mm

    2 Material Galvanized steel,single wall
    3 Structure: One compartment
    4 Cooling system 4 fans,installed on the top cover
    5 Heat Insulation There are heat insulation on the outer wall.
    6 Alarm Sensors Water sensor, Door sensor, Smoke sensor, Temperature sensor and Humidity sensor
    7 Lamp DC48V LED lamp
    8 Protection level IP55
    9 Flame retardance Comply with GB5169.7 test A
   10 Temperature

Working Temperature:-40°C ~ +55°C

Storage Temperature:-50°C ~ + 70°C

Transport Temperature:-50°C ~ +70°C

   11 Package Wooden case with pallet
   12 Certificates CE



3. Cabinet Features



3.1 External Dimension is W*D*H 800*600*1800mm

3.2 Galvanized steel

3.3 Anti-theft three point lock

3.4 The cabinet includes 19” standard installation rack.

3.5 The cabinet cooling uses 4 fans

3.6 Including -48VDC illumination lamp.

3.7 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.

3.8At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.

3.9 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

3.10 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A

3.11 IP55 protection level.



4. Cabinet Cooling



There are 4 fans installed on the top cover of the cabinet.



5. Cable Inlet



There are eight cable inlets at the bottom of the cabinet.



Waterproof IP55 19" Rack 32U Outdoor Electrical Cabinet 0



6. Grounding Protection



6.1The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.

6.2The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.

6.3Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.



Waterproof IP55 19" Rack 32U Outdoor Electrical Cabinet 1



7. Internal Raks



Waterproof IP55 19" Rack 32U Outdoor Electrical Cabinet 2



8. Leading Time



Usually about 15-20 days. The exact lead time need to be confirmed according to the quantity of order.
