Product Details:
Payment & Shipping Terms:
|
| External Size: | W*D*H 800*800*1800mm | Material: | Galvanized Steel, Double Wall With Insulation |
|---|---|---|---|
| Cabinet Lock: | Anti-theft Three Point Lock(support Padlock) | Cable Inlets: | From Cabinet Bottom |
| Mounting Type: | Floor Mount | Cooling System: | Air Conditioner And Fan |
| Certificates: | CE | Protection Level: | IP55 |
| High Light: | telecom equipment cabinet,outdoor telecom enclosure,19'' Rack Outdoor Telecom Cabinet |
||
32U IP55 Galvanized Steel Double Wall Outdoor Telecom Cabinet 19'' Rack Base Station
1. Cabinet Application
1.1 Base station
1.2 Mobile & Radio, 3G 4G 5G, Tetra, Microwave
1.3 Telecommunication
1.4 Internet service providers
1.5 Environmental monitoring
1.6 CCTV and security systems
2. Cabinet Specifications
| External Size | W*D*H 800*800*1800mm. |
| Material | Galvanized steel,double wall with thermal insulation. |
|
Cabinet Layout |
One compartment for installing 19” equipment |
| Component | The whole cabinet is composed of three parts:top cover,cabinet body and base.The installation method is floor mounnted. |
| Protection Level | IP55 |
| Cabinet Inlets | From cabinet bottom |
| Illumination/lighting | DC48V LED lamp |
| Heat Insulation | PEF |
| Grounding Protection | Copper bar |
| Color | Light Grey |
| Air conditioner |
Cooling Capacity:1000W Power Supply: 220VAC,50Hz |
| Fan | -48VAC,temperature adjustable |
| Accessories Options | PDU, Environment monitoring system |
| Alarm sensors | The door sensor, water sensor, smoke sensor, temperature and humidity sensor |
| Flame retardant | Comply with GB5169.7 test A |
| Door type | With 1 front door |
| Cabinet Lock | Anti-theft three point lock(support padlock) |
| Package | Wooden case with pallets |
| Certificates | CE |
3.Cooling System
The air conditioner uses utility power input,allowing wide voltage range ,with high energy efficiency ratio.The air conditioner integrated universal intelligent controller,supporting 7*24 hours continous operation.It supports RS485 communication and can be connected with customers' system.
4. Cabinet Instructions
41 LED lamp, smoke sensor and door sensor are installed at the top of the enclosure.
4.2 Environment Monitoring Unit and PDU are installed on 19” rack.
4.3 Air Conditioner is installed on the door of the cabinet.
4.4 Feeder cable and other external cables all use bottom wiring method.

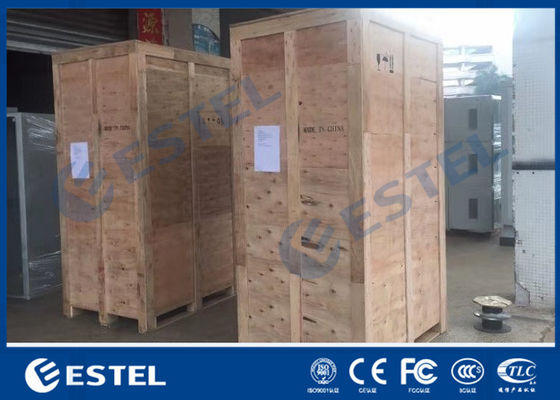

5. Cabinet Package and Shipping
Wooden case with pallets.
