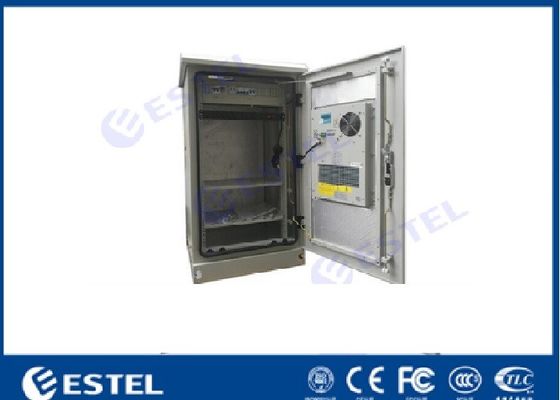

Pole Mount Outdoor Electronic Equipment Enclosures IP55 Including 13U 19" Rack
Product Details
telecom equipment cabinet
,outdoor telecom enclosure
,13U Outdoor Electronic Equipment Enclosures
Pole Mount Air Conditioner Cooling Outdoor Telecom Cabinet Including 13U 19" Rack
1.Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Size:W×D×H 625×300×700mm |
| Layout | One compartment | |
| Equipment Installation Method | 19” standard rack | |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.5mm, with 20mm PEF heat insulation between two walls. | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | DC48V air conditioner |
| Lighting | LED lamp | 48V LED lamp |
| Temperature | Temperature | Working Temperature: -20°C ~ 55°C |
| Storage Temperature: -40°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
2. Cabinet Description
2.1 Cabinet Structure: the cabinet use sandwich structure, outer plate is 1.5mm galvanized steel, inner plate is 0.5mm galvanized steel, with 20mm insulation between outer plate and inner plate.
2.2 Door and Door Lock: the cabinet includes one front door. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supports padlock.
3. Cabinet Features
3.1 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
3.2 The cabinet use air conditioner for cooling.
3.3 The cabinet includes -48VDC LED lamp for illumination.
3.4 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable entrance holes individually for power cable, signal cable and optical cable at the bottom of cabinet.
3.5 All the cables, seal and insulation material used in the cabinet are made from flame retardant materials.
3.6 The cabinet use standard 19” rack installation method.
4. Cabinet Drawing
Cabinet External Size : 625mm×300mm×700mm (W×D×H).
5.Mounting Type
6.Cabinet Package
-
