Small Size Outdoor Network Enclosure , Outdoor Data Cabinet IP55 With One Front Door
  • Small Size Outdoor Network Enclosure , Outdoor Data Cabinet IP55 With One Front Door
  • Small Size Outdoor Network Enclosure , Outdoor Data Cabinet IP55 With One Front Door
  • Small Size Outdoor Network Enclosure , Outdoor Data Cabinet IP55 With One Front Door

Small Size Outdoor Network Enclosure , Outdoor Data Cabinet IP55 With One Front Door

Place of Origin Shenzhen, China (Mainland)
Brand Name ESTEL
Certification ISO9001, CE, 3C, FCC, TLC, IP55
Model Number ET403160
Product Details
Dimension:
W×D×H 400×315×606mm
Material:
Galvanized, Double Wall With Insulation
Temperature Control:
Air Conditioner
Door Type:
With One Front Door
Ingress Protection:
IP55
Certificates:
CE
High Light:

telecom equipment cabinet

,

outdoor telecom enclosure

,

Outdoor Data Cabinet IP55

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Wooden case with pallets
Delivery Time
15-20 working days
Payment Terms
T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability
8,000 sets per month
Product Description



Small Size Galvanized Steel Double Wall Outdoor Telecom Cabinet IP55



1.Cabinet Description



This series IP55 Outdoor cabinet with rear back access offers the ideal enclosure solution to build the whole base station inside.The cabinets system can support Electrical equipments,PDU,Backup batteries,Mornitoring system and etc.This series enclosures offer all the protection needed for outdoor requirements.Ultimate security is provided by a three-point locking system.



2. Cabinet Parameters



Configuration Item Technical Parameter
Cabinet Body Model ET403160
Size

External Dimension: W×D×H 400×315×606mm (Including base height)

Component 1 Compartment
Material Galvanized steel, double wall, outer wall is 1.5mm, inner wall is 0.5mm, between two wall there is 25mm insulation.
Structure
  • Double wall, with heat insulation.
  • One front door, hidden zinc alloy hinge.
  • Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with anti-theft three-point lock(support padlock).
  • Door stopper is installed on the inside of the cabinet door.
  • Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof.
  • Include 4 battery layers
  • Cable inlets at the bottom of cabinet.
  • Grounding protection: copper bar.
Surface Treatment Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
Color Anti-corrosion outdoor powder coating RAL7035
Ingress Protection IP55
Working Temperature -40°C~+85°C
Cooling Method



Air Conditioner



Cooling capacity: 300W

Power Supply: DC48V



3.Cabinet Dimension



External Dimension: W×D×H 400×315×606mm (Including base height)



Small Size Outdoor Network Enclosure , Outdoor Data Cabinet IP55 With One Front Door 0



4.Cabinet Features



4.1 The cabinet is IP55 protection level

4.2 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

4.3 Good quality galvanized steel,double wall with insulation.

4.4 Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated

4.5 Cabinets cooling uses air conditiioner

4.6 There are entrance holes at the bottom of the cabinet

4.7 Including -48VDC illumination lamp.

4.8 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A

4.9 Floor mounting type

4.10 CE certificate



5.Cooling System

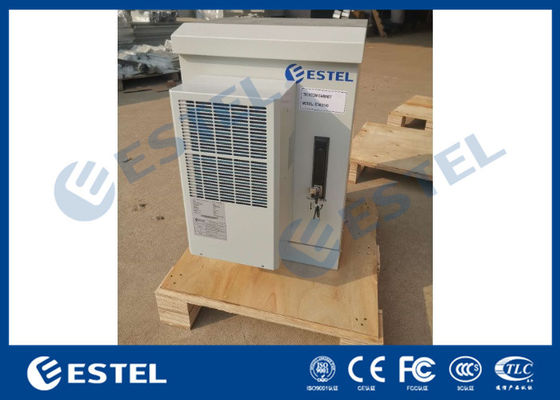

There is one air conditoner installed on the front door.

  • Cooling capacity: 300W
  • Power Supply: DC48V



Small Size Outdoor Network Enclosure , Outdoor Data Cabinet IP55 With One Front Door 1



6. Internal Installation Pictures



There are 4 trays inside the cabinet,which is used for installing the equipment.



Small Size Outdoor Network Enclosure , Outdoor Data Cabinet IP55 With One Front Door 2



7.Production Picture



Small Size Outdoor Network Enclosure , Outdoor Data Cabinet IP55 With One Front Door 3
