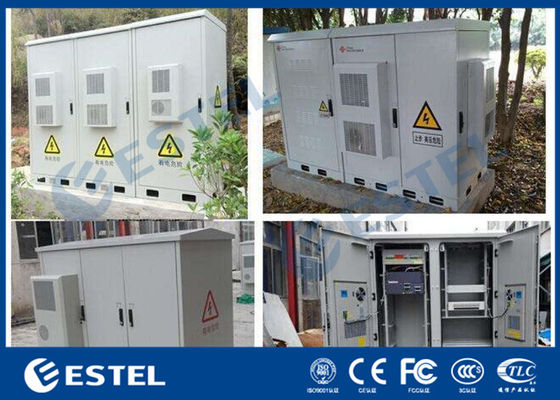

IP55 Triple Bay Outdoor Telecom Enclosure Three Front Doors Fans Cooling Cabinet

IP55 Triple Bay Outdoor Telecom Enclosure Three Front Doors Fans Cooling Cabinet
IP55 Triple Bay Outdoor Telecom Enclosure Three Front Doors Fans Cooling Cabinet IP55 Triple Bay Outdoor Telecom Enclosure Three Front Doors Fans Cooling Cabinet IP55 Triple Bay Outdoor Telecom Enclosure Three Front Doors Fans Cooling Cabinet

Large Image :  IP55 Triple Bay Outdoor Telecom Enclosure Three Front Doors Fans Cooling Cabinet

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: 336240918050002
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 358-2143 usd
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability: 5,000 sets per month
Contact Now
Detailed Product Description
External Size: W*D*H 2400*900*1800mm Material: Galvanized Steel
Cabinet Lock: Anti-theft Three Point Lock(support Padlock) Cable Inlets: From Cabinet Bottom
Mounting Type: Floor Mount Cooling System: Fans
Certificates: CE Protection Level: IP55
Cabinet: Outdoor Telecom Cabinet Cabinet: Outdoor Telecom Cabinet
Highlight:

telecom equipment cabinet

,

outdoor telecom enclosure

,

Triple Bay Outdoor Telecom Enclosure



IP55 Triple Bay Outdoor Telecom Enclosure / Three Front Doors Fans Cooling Cabinet



1.Enclosure Overview



  • This triple bay enclosures are the ultimate choice for outdoor racking requirements.It provides a secure,climate controlled environment for any electronic equipment.
  • Being made of galnarized steel,it’s strong enough to rack even the heaviest equipment.It comes with three sets of standard 19 inch racking rails.
  • For those who need more than just standard enclosure, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions.



2.Enclosure Features



  • Grey color
  • External dimentions is W*D*H 2400*900*1800mm
  • Galvanized steel
  • Top cover, shades cabinet from the sun
  • Zinc Die Powder-coated
  • Three front doors
  • Anti-theft three point lock
  • Individual cable entry holes from bottom of the cabinet
  • 3 sets of adjustable 19″ racking rails
  • Cooling system uses fans.
  • The door sensor, water sensor, smoke sensor, temperature and humidity sensor optional
  • Flame retardant comply with GB5169.7 test A
  • CE certificates
  • Floor mounting type
  • Package:Wooden case with pallets
  • IP55 protection level



3.Enclosure Parameters



Type Technical Parameters
Dimension External Dimension: H×W×D 2400*900*1800mm
Layout 3 compartments
Equipment Installation Method 19” rack and battery layers
Door With Three front doors. With anti-theft three point lock for outdoor cabinet (support padlock)
Material Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate
Heat Insulation There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF
Structure Welded or Assembled
Ingress Protection IP55
Lightning Proof Grade B lightning proof,Nominal: 60KA, Max.: 100KA
LED lamp 48V LED lamps (immovable), with protective circuit breaker
Temperature Working Temperature: -40°C ~ +55°C
  Storage Temperature: -50°C ~ + 70°C
  Transport Temperature: -50°C ~ +70°C
Relative Humidity 5% ~ 100%
Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Solar Radiation Intensity 1120 ×(1±5%)W/m2
Mounting Type Floor mounting type



4. Cable Inlets



There are entrance holes individually for feeder cable and other external cables.



IP55 Triple Bay Outdoor Telecom Enclosure Three Front Doors Fans Cooling Cabinet 0



5. Connection And Fastening



  • Use anti-loose threaded connection as structure and bearer connection.Anchor bolt for fixing cabinet use hot dip galvanized bolts.
  • Door hings use inner hinge mode.



IP55 Triple Bay Outdoor Telecom Enclosure Three Front Doors Fans Cooling Cabinet 1



6.Production Applications



  • Telecommunications
  • Base station
  • Trailer-based communications
  • Fiber Optics
  • Military



IP55 Triple Bay Outdoor Telecom Enclosure Three Front Doors Fans Cooling Cabinet 2



7.  Leading Time



Usually about 15 days. The exact lead time need to be confirmed according to the quantity of order.
