| Place of Origin | Place of Origin: Shenzhen,China (Mainland) |
| Brand Name | ESTEL |
| Certification | ISO9001,CE,3C,FCC,TLC,IP55 |
| Model Number | 336200918050001 |

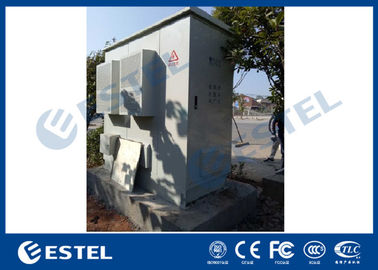

Galvanized Steel Double Wall Three Compartment Outdoor Telecom Cabinet With Oil Socket
1. Cabinet Parameters
| Type | Technical Parameters |
| Dimension | External Dimension: H×W×D 2000×900×1800mm |
| Layout | 3 compartments |
| Equipment Installation Method | 19” rack and battery shelf |
| Door | With two front doors and one side door. With anti-theft three point lock for outdoor cabinet (support padlock) |
| Material | Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate |
| Heat Insulation | There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF |
| Oil Socket | There is one oil socket on one front door. |
| Structure | Welded or Assembled |
| Ingress Protection | IP55 |
| Cooling System | AC220V air conditioners and DC48V fans |
| Lightning Proof | Grade B lightning proof,Nominal: 60KA, Max.: 100KA |
| LED lamp | 48V LED lamps (immovable), with protective circuit breaker |
| Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | |
| Transport Temperature: -50°C ~ +70°C | |
| Relative Humidity | 5% ~ 100% |
| Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
| Mounting Type | Floor mounting type |
2. Cabinet Description
3. Cabinet Components Installation
3.1 LED lamp, smoke sensor and door sensor are installed at the top of the cabinet
3.2 Air Conditioners and fans are installed on the front door of the cabinet

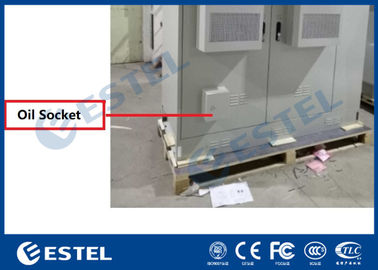

3.3 There is one Oil Socket installed on one front door.
4. Cabinet Quality Control Introduction
Our company resolutely implements the principle of quality first, we control and supervise the whole production process in strict accordance with the requirements of the ISO9001 system and the related implementation process. The quality department strictly controls all aspects like material inspection, production processes, product testing, shipment inspection and establishes traceable documents and product identification.
Our quality inspection team, is very familiar with the various standards, strict implementation of the standards required sampling and testing methods.
5.Cabinet Package

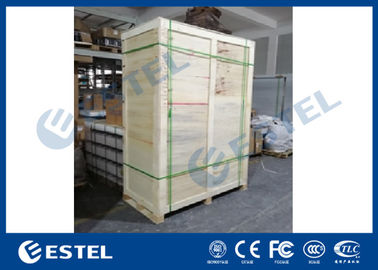

Wooden case with pallets
