Double Wall Outdoor Telecom Cabinet One Compartment Steel With Air Conditioner
Basic Properties
Place of Origin:
Shenzhen, China (Mainland)
Brand Name:
ESTEL
Certification:
ISO9001, CE, 3C, FCC, TLC, IP55
Model Number:
131090917050001
Trading Properties
Minimum Order Quantity:
1 set
Price:
358-2143 usd
Payment Terms:
T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability:
5,000 sets per month
Product Summary
One Compartment Galvanized Steel Double Wall Outdoor Telecom Cabinet With Air Conditioner And Fans 1. Cabinet Instructions The cabinet includes 19” equipment installation rack. The cabinet includes one air conditioner and two fans, installed on front door. The cabinet is made of galvanized steel, ...
Product Details
Highlight:
telecom equipment cabinet
,outdoor telecom enclosure
,Telecom Cabinet Double Wall
External Size:
W× D×H 900 ×900 ×1700mm
Cabinet Lock:
Anti-theft Three Point Lock(support Padlock)
Cable Inlets:
From Cabinet Bottom
Mounting Type:
Floor Mount
Cooling System:
Air Conditioner And Fans
Protection Level:
IP55
Cabinet:
Outdoor Telecom Cabinet
Cabinet:
Outdoor Telecom Cabinet
Cabinet:
Outdoor Telecom Cabinet
Product Description
One Compartment Galvanized Steel Double Wall Outdoor Telecom Cabinet With Air Conditioner And Fans
1. Cabinet Instructions
- The cabinet includes 19” equipment installation rack.

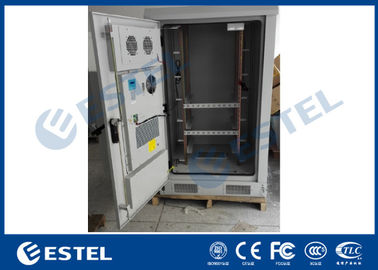

- The cabinet includes one air conditioner and two fans, installed on front door.
- The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF, heat insulation coefficient: 0.035W/m·K. The cabinet is assembled type.
2. Cabinet Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: H×W×D 1700×900×900mm |
| Layout | 1 compartment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate | |
| Heat Insulation | There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. | |
| Structure | Assembled or welded | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | AC220V air conditioner and DC48V fans |
| Lightning Proof | Grade B lightning proof | Nominal: 60KA, Max.: 100KA |
| Lighting | LED lamp | 48V LED lamps (immovable), with protective circuit breaker |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |

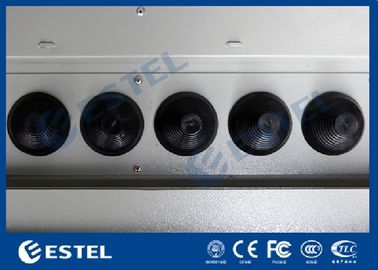

3.Cabinet Inlets
Feeder cable and other external cables all use bottom wiring method.
4.Grounding Protection

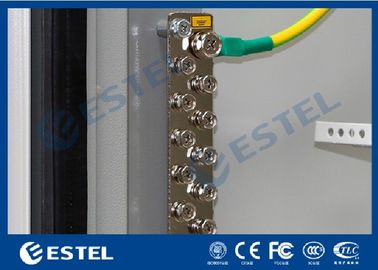

(1) The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
(2) The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
(3) Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.

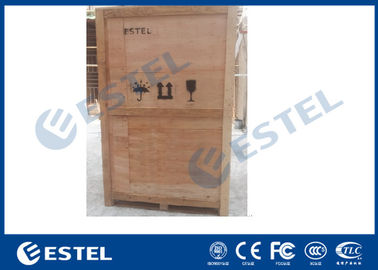

5.Package
