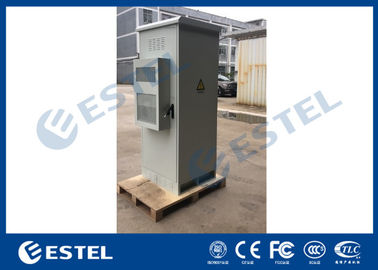

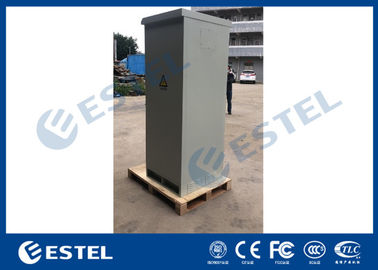

One Front Door Outdoor Telecom Cabinet 1 Compartment Single Wall Heat Insulation

One Front Door Outdoor Telecom Cabinet 1 Compartment Single Wall Heat Insulation
One Front Door Outdoor Telecom Cabinet 1 Compartment Single Wall Heat Insulation One Front Door Outdoor Telecom Cabinet 1 Compartment Single Wall Heat Insulation One Front Door Outdoor Telecom Cabinet 1 Compartment Single Wall Heat Insulation

Large Image :  One Front Door Outdoor Telecom Cabinet 1 Compartment Single Wall Heat Insulation

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: 161080720050001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case with pallets
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability: 8,000 sets per month
Detailed Product Description
Material: 304 Stainless Steel, Single Wall With Insulation Door Type: With One Front Door
External Dimension: W×D×H 750×700×2000mm Ingress Protection: IP55
Temperature Control: Air Conditioner And Fans Package: Wooden Case With Pallets
High Light:

telecom equipment cabinet

,

outdoor telecom enclosure

,

Front Door Telecom Cabinet



304 Stainless Steel Outdoor Telecom Cabinet Single Wall With Heat Insulation One Front Door



1. Cabinet Application



The Stainless Outdoor Telecom Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



2. Cabinet Parameters



Items Technical Parameter
Dimension

External Dimension:

W×D×H 750×700×2000mm

Layout 1 compartment
Equipment Installation Method 19” rack
Doors With one front door , and anti-theft three point lock for outdoor cabinet (support padlock).
Material 304 stainless steel, single wall with insulation
Ingress Protection IP55
Cooling System

1. Air conditioner:

    1pcs,

    2000W cooling capacity,

    48VDC,

    Installed on the front door

2. Fans:

    2pcs,

    48VDC

Lighting 48V LED lamps
Power Distribution Unit

AC Power Distribution Unit:

125A 4P X 1

63A 3P X 2

32A 3P X 2
25A 1P X 2

16A 1P X 2

10A 1P X 2



DC Power Distribution Unit:
250A 1P X 2

125A 1P X 4

100A 1P X 2
63A 1P X 3

32A 1P X 2

16A 1P X 2
10A 1P X 2

6A 1P X 2

Cable Inlets The cable entry points is situated behind the cabinet and of 10 holes split 6 top and 4 bottom and easy upgradeable.
Cabinet and Componet Coating  The cabinet is coated structural Grey (RAL7032)
Package Wooden Case with pallets



3. Cabinet Configuration



NO DESCRIPTION SPECS QUANTITY UNIT
1 Outdoor Telecom Cabinet

(1) Model:161080720050001
(2) External Dimension: W×D×H 750×700×2000mm
(3) One compartment: including 19" rack
(4) With one front door, and anti-theft lock for outdoor cabinet (support padlock)
(5) Material: 304 Stainless Steel, single wall with insulation

(6) Wall mount

1 SET
2 Fan DC48V 2 PC
3 Air Conditioner Cooling Capacity: 2000W;
Power Supply: DC48V
On the front door
1 SET
4 LED Lamp Switch Used for controlling led lamp on/ off 1 PC
5 LED Lamp DC48V, used for illumination in the cabinet 1 PC
6 AC Power
Distribution
Unit

AC:
125A 4P X 1

63A 3P X 2

32A 3P X 2
25A 1P X 2

16A 1P X 2

10A 1P X 2



1 SET
7 DC Power
Distribution
Unit

DC:
250A 1P X 2

125A 1P X 4

100A 1P X 2
63A 1P X 3

32A 1P X 2

16A 1P X 2
10A 1P X 2

6A 1P X 2



1 SET
8 Package Wooden case with pallet 1 SET



3. Cabinet Key features



(1) 304 Stainless Steel, single wall with insulation.

(2) Cabinet cooling system: air conditioner with 2000W cooling capacity and 2 fans.

(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.

(4) All the cables used in the cabinet are made from flame retardant materials.

(5)Protection grade :IP55.

(6)Security design: Embedded doors, embedded hinges, 3-point security locks.

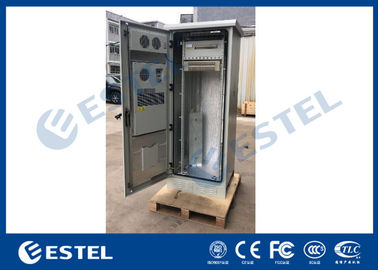

4. Cooling System



4.1 Air conditioner with 2000W Cooling capacity, installed on the front door of the cabinet.



4.2 Fans:48VDC,2pcs, installed on the front door of the cabiet



One Front Door Outdoor Telecom Cabinet 1 Compartment Single Wall Heat Insulation 0



5. Package And Shipment



One Front Door Outdoor Telecom Cabinet 1 Compartment Single Wall Heat Insulation 1



6. Our Delivery Agent



The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.



7. Factory Introduction



Factory Size: 3000 Square Meters

No. of Main Production Lines: 5

Contract Manufacturing: OEM Service Offered, Design Service Offered, Buyer Label Offered

Production Experience: 13 Year
