Double Wall IP55 Outdoor Telecom Cabinet Floor Mount Waterproof Three Point Lock

Double Wall IP55 Outdoor Telecom Cabinet Floor Mount Waterproof Three Point Lock
Double Wall IP55 Outdoor Telecom Cabinet Floor Mount Waterproof Three Point Lock Double Wall IP55 Outdoor Telecom Cabinet Floor Mount Waterproof Three Point Lock Double Wall IP55 Outdoor Telecom Cabinet Floor Mount Waterproof Three Point Lock Double Wall IP55 Outdoor Telecom Cabinet Floor Mount Waterproof Three Point Lock

Large Image :  Double Wall IP55 Outdoor Telecom Cabinet Floor Mount Waterproof Three Point Lock

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: 132090921050004
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability: 5,000 sets per month
Detailed Product Description
External Size: W× D×H 900 × 900 ×2100mm Cabinet Lock: Anti-theft Three Point Lock(support Padlock)
Cable Inlets: From Cabinet Bottom Mounting Type: Floor Mount
Cooling System: Fans And Air Conditioners Protection Level: IP55
High Light:

telecom equipment cabinet

,

outdoor telecom enclosure

,

Floor Mount Telecom Cabinet



Three-point Lock Galvanized Steel Double Wall IP55 Outdoor Telecom Cabinet Waterproof Dustproof



1. Technical Parameters



Configuration Item Technical Parameter
Cabinet Body Size External Size: 2100mm×900mm×900mm(H×W×D)
Component

The whole cabinet is composed of one compartment: 40U,19" rack.

The installation method is floor mounted.

Material Galvanized steel, double wall, with heat insulation
Structure
  • Double wall, galvanized steel
  • One front door and one back door ,hidden zinc alloy hinge
  • Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with three-point lock device
  • Door stopper / wind lock is installed on the inside of the cabinet door
  • Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof
  • Cable inlets at the front and back of the cabinet bottom
Surface Treatment Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification
Color Outdoor polyester light grey RAL 7035 coating or custom made
Ingress Protection IP55
Working Temperature -40°C~+75°C
Cooling Method Compressor Air Conditioner

 2 pcs air conditoners:

  • 1500W cooling capacity
  •  220VAC,60Hz
Fan 2 pcs, 220VAC,60Hz.
PDU PDU

 B grade lightning protection: 60KA*1;

 AC input:63A/2P *1;

 AC output: 16A/1P*4;

 DC output: 16A/1P*4;

 Input voltage:AC220V, 60Hz.

 Maintenance socket *1.

Illumination Illumination  LED light, 2 pcs, 220VAC.



2. Cabinet Features



(1)40U,19" rack inside of the cabinet.

(2)One front door and one back door ,hidden zinc alloy hinge.

(3)Floor mounted type.

(4) The cabinet is dustproof, sunproof and rainproof, used in outdoor environment.

(5) Cooling:2 fans and 2 air conditioners

(6) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.

(7) All the cables used in the cabinet are made from flame retardant materials.

(8)There are inlets holes at the front and back of the cabinet bottom.

(9)IP55 proteciton level.



3. Cable Inlets and Grounding Bar



3.1 There are cable inlets at the cabinet bottom, as shown in the below picture.



Double Wall IP55 Outdoor Telecom Cabinet Floor Mount Waterproof Three Point Lock 0

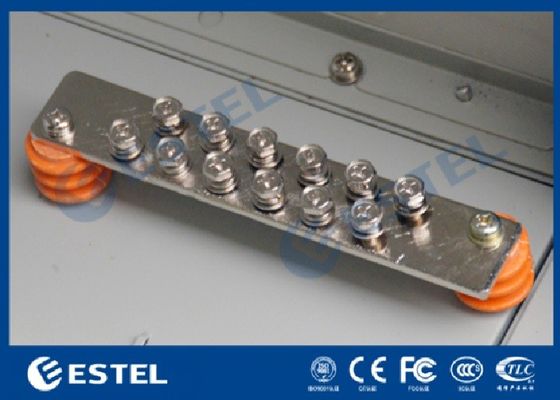

3.2 There is one grounding bar at the side of the cabinet bottom,as shown in the below picture.



Double Wall IP55 Outdoor Telecom Cabinet Floor Mount Waterproof Three Point Lock 1



4.Cooling System



4.1 There are 2 fans on the the top cover.

4.2 There are 2 air conditioners for cooling,one installed on the front door ,the other is installed on the back door.



5.Cabinet Package



Double Wall IP55 Outdoor Telecom Cabinet Floor Mount Waterproof Three Point Lock 2
